Speroni SCMX
Submersible Multistage Electric Pump

Speroni SCMX - Multistage Submersible Electric Pump for Wells

Speroni SCMX is a multistage centrifugal submersible electric pump for 6” wells , designed for pumping clean water without abrasive substances . Particularly suitable for irrigation systems, drinking water supply, washing, general pressure increase, it can be used to create small, absolutely silent domestic pressurization groups. It has a high resistance to corrosion thanks to the use of stainless steel for the pump body and the motor.

The Speroni SCMX pump is equipped with a 2-pole single-phase electric induction motor (n = 2850 min-1) with built-in automatic reset amperometric protection, insulation class F and IP 68 protection. This electric pump allows the passage of liquids up to 35°C (domestic use EN 60335-2-41 ) and for other uses. The maximum immersion depth is 20 metres , it allows a sand content of up to 40 g/m³ and 30 starts/hour .

Materials

• Pump body: AISI 304 stainless steel
• Grill: AISI 304 Stainless Steel
• Impeller and diffusers: AISI 304 stainless steel
• Supports: Brass
• Shaft: AISI 304 Stainless Steel
• Motor body: AISI 304 stainless steel
• Double mechanical seal in oil chamber: Ceramic/Graphite/NBR Silicon/Silicon/NBR

Characteristics

• Submersible centrifugal electric pump
• Multi-stage
• For clean water without abrasive substances
• Pump body and motor in stainless steel
• Max immersion 20 m
• Sand content max 40 g/m³
• Made in Italy
• Insulation F, IP 68

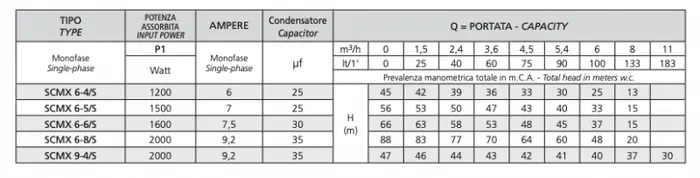

Available models

• Speroni SCMX 6-4/S - 230 V - 1.6 HP - 15 m cable
• Speroni SCMX 6-5/S - 230 V - 2 HP - 20 m cable
• Speroni SCMX 6-6/S - 230 V - 2 HP - 20 m cable
• Speroni SCMX 6-8/S - 230 V - 2.6 HP - 30 m cable
• Speroni SCMX 9-4/S - 230 V - 2.6 HP - 20 m cable
