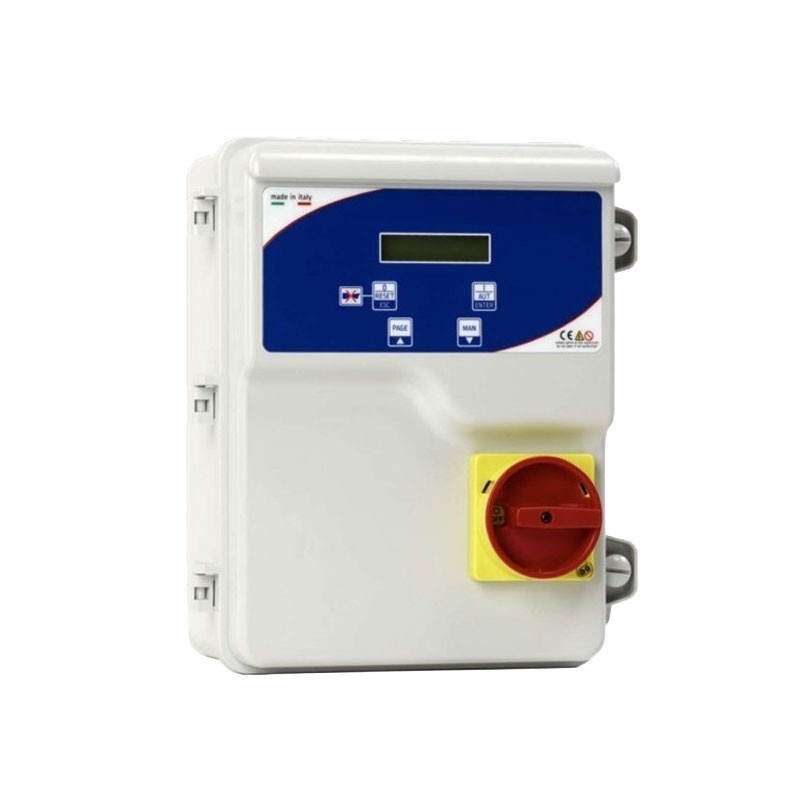

Leo OMNIA 1D m 230V
Electronic Control Panel for Single-Phase Pump 0.5-3 HP
MPN: 1081101
230 V - for 1 pump
0.5÷3 HP (0.37÷2.2 kW)
Leo OMNIA 1D m 230V - Electronic Control Panel for Single-Phase Pump 0.5-3 HP
Direct start electrical panel LEO OMNIA 1D m 230V designed for the control and protection of single-phase submersible and surface pumps, with automatic motor data learning. Compact and intuitive, this pump control panel is suitable for both clean water and wastewater applications, covering a power range from 0.37 to 2.2 kW (0.5-3 HP).
Key features include integrated management of float switches, pressure switches, and level probes in a single control unit, reducing wiring and installation time. This electrical panel for submersible pumps represents a professional and versatile solution for civil, industrial, and wastewater lifting systems requiring reliability and advanced motor protection.
Functional Specifications
Intelligent Motor Protections and Electrical Safety
The panel performs automatic motor data learning, calibrating protection thresholds automatically without manual settings. Included are overcurrent and undercurrent protections with a dedicated alarm, voltage surge protection, incorrect phase sequence control, and dry-running protection by reading minimum amperage and cosphi. There is also motor klixon intervention protection, with a specific thermal sensor for submersible pumps.
Level Management with Float Switches, Pressure Switches, and Probes
The Leo OMNIA 1D m 230V electrical panel is compatible with various level detection technologies: float switches, pressure switches, and level probes can be connected interchangeably thanks to the presence of 4 dedicated inputs for float switches and 1 input for probe control. This flexibility allows the panel to be installed in sumps, collection tanks, and lifting stations.
Operational Controls and Visual Indicators
The AUTO-0-MAN selection allows quick switching between automatic operation, stop, and manual control. The green indicator light signals the motor running in automatic mode, while the blue light indicates mains presence. The STOP button with reset function ensures immediate operator intervention in case of anomalies, simplifying daily system management by technical staff.
Alarms, Dedicated Outputs, and BMS Integration
The panel features integrated audible and visual alarms, alarm contacts, a 12 V DC alarm output, and a voltage-free contact alarm output. BMS readiness allows connection to remote supervision systems, making the panel suitable even for systems requiring centralized monitoring and remote high and low level signaling.
Outputs
- Audible alarm
- Visual alarm
- Dry contacts for alarms (N.O.)
- 12 V d.c. alarm output
- Voltage-free contact alarm output
Inputs
- 1 x Level control with probes
- 4 x Float switches
- 1 x Motor thermal sensor

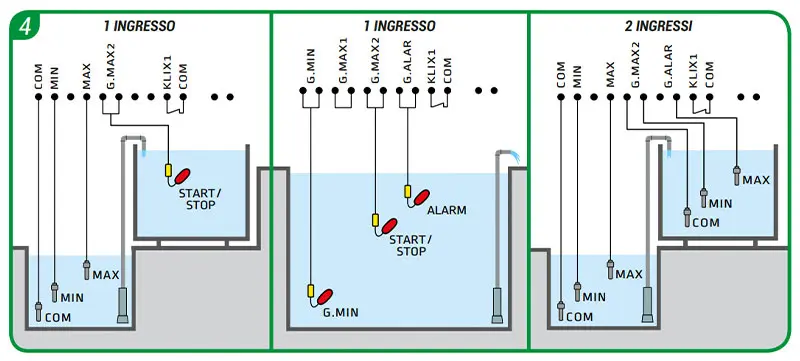

Possible Configurations
Below are the typical configurations with which probes/float switches/sensors can be wired according to the application
Dry-running protection with cosφ reading
Configuration for clean water with float switches and probes
Configuration for wastewater with probes or float switches
Continuous level control with transducer/probe 4-20mA (bar and meters)
Features
- Direct start for single-phase pump with automatic motor data learning
- Compatible with clean and wastewater
- Management of float switches, pressure switches, and level probes
- BMS readiness for remote connection
- Start and stop delay programmable
- Over/under current, voltage surge, and phase sequence protection
- Dry-running protection with cosphi reading
- Motor klixon protection with thermal sensor for submersible pumps
- IP55 plastic box, temperature -5/+50°C
- Managed power 0.37-2.2 kW (0.5-3 HP)
- Current 16 A
Technical Data
| Model | OMNIA 1D m 230V |
| Power Supply | 230 V |
| Power | 0.5÷3 HP (0.37÷2.2 kW) |
| Number of connectable pumps | 1 |
| Protection | IP55 |
| Overload Protection | YES |
| Underload Protection | YES |
| Dry Running Protection | YES |
| Incorrect Sequence Protection | YES |
| Ambient Temperature | -5 / +50 °C |
| Relative Humidity | 50% at 40°C |
| Dimensions | 28.5 x 24.5 x 14 cm |
| Weight | 2.7 kg |
