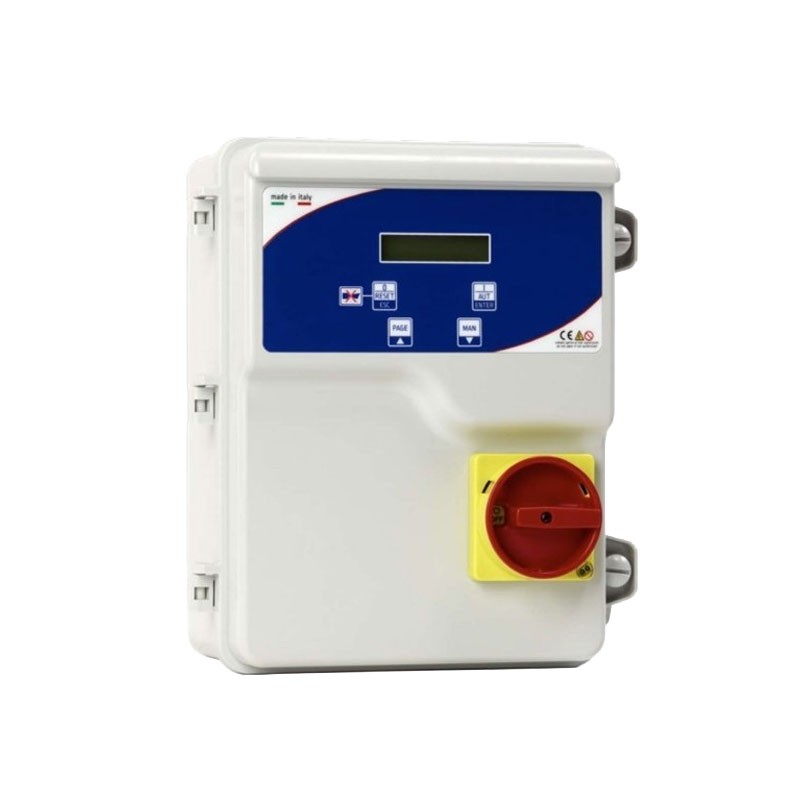

Leo OMNIA 2D m 230V
Electronic Control Panel for 2 Single-Phase Pumps 0.5-3 HP
MPN: 1081201
230 V - for 2 pumps
0.5 to 3 HP (0.37 to 2.2 kW)
Leo OMNIA 2D m 230V - Electronic Control Panel 0.5-3 HP for 2 Independent Single-Phase Pumps
The single-phase dual pump control panel Leo OMNIA 2D M 230V is a direct start control system for the simultaneous management of two electric pumps, ideal for both wastewater and clean water lifting. Powered by 230V, it features IP55 protection and an automatic motor data learning function, which simplifies commissioning by automatically adapting electrical protection thresholds to the connected pump.
This control panel stands out for its integrated pump alternation management, useful for balancing motor wear and ensuring operational continuity during peak times. Easy to install on-site, in civil or industrial applications, it represents an excellent solution for controlling submersible pumps in mixed systems.
Functional Specifications
Intelligent Motor Protections and Electrical Safety
The control panel performs automatic motor data learning, calibrating protection thresholds automatically without manual settings. Included are overcurrent and undercurrent protections with a dedicated alarm, voltage surge protection, incorrect phase sequence control, and dry-running protection through minimum amperage and cosphi reading. It also features motor klixon intervention protection, with a specific thermal sensor for submersible pumps.
2 Pump Alternation and Peak Load Management
The control panel automatically manages alternation between the two pumps and their simultaneous operation during peak loads, optimizing motor wear and system efficiency. It is also programmable for both pressurization and lifting applications, with configurable start and stop delays to suit specific installation requirements.
Advanced Functions and Connectivity
In addition to automatic motor data learning, the control panel offers an automatic motor test function and scheduled maintenance, useful for reducing unexpected system downtime. BMS readiness allows for remote connection for system monitoring, while the advanced Multitank program enables independent management of two pumps installed in two separate tanks.
Inputs and Operating Modes
The control panel accepts commands via float switches, pressure switches, or level probes, with a dedicated input for probe level control and four inputs for float switches, plus two inputs for motor thermal sensors. The green light indicates automatic pump operation, while the blue light indicates mains power; the STOP and reset button allows for immediate manual intervention in case of operational necessity.
Outputs
- Audible alarm
- Visual alarm
- Dry contacts for alarms (N.O.)
- 12 V d.c. alarm output
- Voltage-free contact alarm output
Inputs
- 1 x Level control with probes
- 4 x Float switches
- 2 x Motor thermal sensor
Possible Configurations
Below are the typical configurations for wiring probes/float switches/sensors according to the application
Connection for pressure booster application with level probe and pressure switches

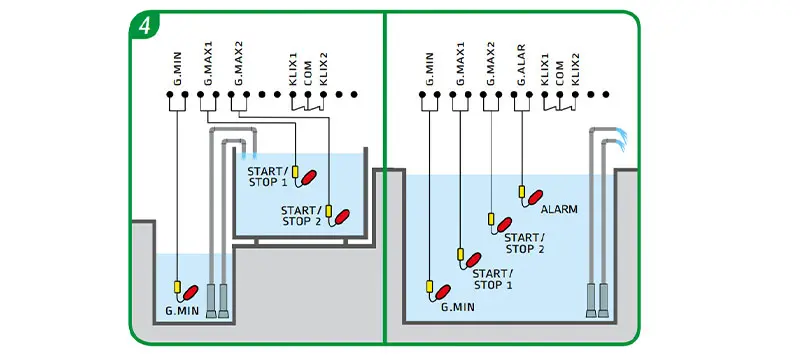

Connection for clean water management: tank filling and lifting with float switches
Connection for wastewater management: clear and dark water with dedicated float switches

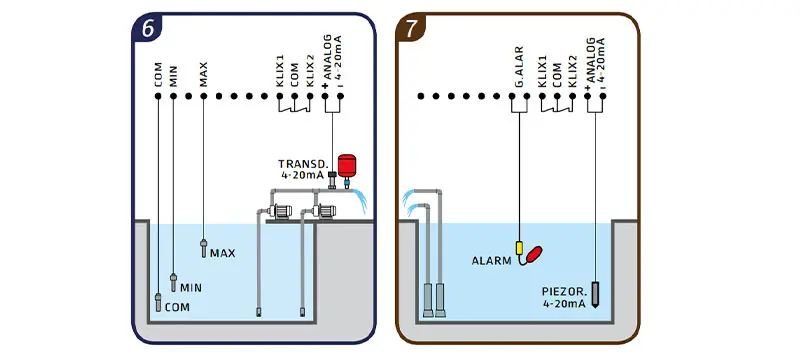

Connection with 4-20mA analog signal: pressure control in bar and level in meters
Features
- Direct start for single-phase pump with automatic motor data learning
- Compatible with clean and wastewater
- Float switch, pressure switch, and level probe management
- BMS readiness for remote connection
- Programmable start and stop delay
- Over/under current, voltage surge, and phase sequence protection
- Dry running protection with cosphi reading
- Motor klixon protection with thermal sensor for submersible pumps
- Plastic box IP55, temperature -5/+50 °C
- Managed power 0.37-2.2 kW (0.5-3 HP)
- Current 2x16 A
- Pump alternation and simultaneous operation during peak loads
- Programmable for pressurization and lifting
- Input for 4-20 mA control (controls the pump with a piezoresistive sensor or pressure transducer)
- Automatic motor test
- Scheduled maintenance
- Multitank: 2 independent pumps in 2 separate tanks
Technical Data
| Model | OMNIA 12 m 230V |
| Power Supply | 230 V |
| Power | 0.5 to 3 HP (0.37 to 2.2 kW) |
| Number of Connectable Pumps | 2 |
| Protection | IP55 |
| Overload Protection | YES |
| Underload Protection | YES |
| Dry Running Protection | YES |
| Incorrect Sequence Protection | YES |
| Ambient Temperature | -5 / +50 °C |
| Relative Humidity | 50% at 40°C |
| Dimensions | 28.5 x 24.5 x 14 cm |
| Weight | 3 kg |
