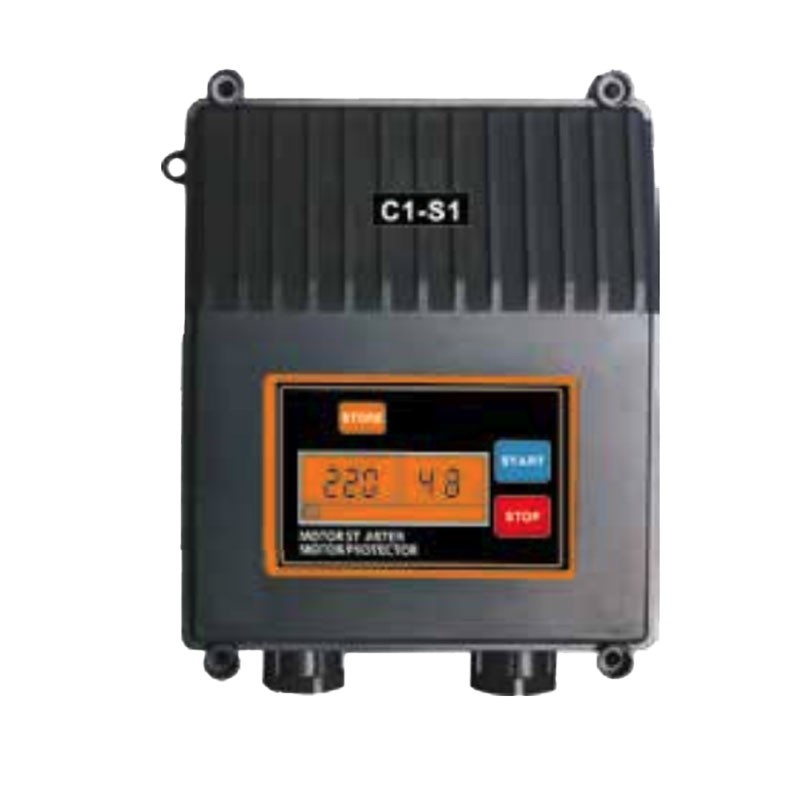

Leo Electrical Panel C1-S1 C1-S2
for Single-Phase Pump
230 V - per 1 motor
0.5÷3 HP (0.37÷2.2 kW)
€61.00
€50.00 tax excl.
Leo C1-S1 and C1-S2 - Electric Panel for Pump
The Leo C1-S1 C1-S2 control panel represents an efficient and versatile solution for managing single-phase electric pumps. Designed to control a single motor , it is perfect for residential , agricultural , civil and light industrial applications, where reliable and safe automation is required. Thanks to its direct starting and compatibility with motors with power ranging from 0.37 to 2.2 kW (0.5 to 3 HP) , the Leo C1-S1 panel easily adapts to various system configurations.
Equipped with IP54 protection , the panel is effectively resistant to dust and splashes of water , making it suitable for outdoor or technical environments. Its advanced functions include a multifunctional LCD graphic display , protection against overload, abnormal voltages and dry running, all features that contribute to increasing the reliability of the system and reducing maintenance interventions. The Leo C1-21 and C1-S2 are therefore a smart choice for those seeking safety, practicality and technology in a single device.
Available models
- C1-S1 - code 10C1-S1
- C1-S2 - cod. 10C1-S2 -> level regulator function. A float or pressure switch can be used instead of the probes .
Functional specifications
Intelligent control with LCD display
The Leo C1-S1 and C1-S2 control panel features a multifunction LCD graphic display , designed to offer an intuitive and comprehensive user interface. The panel allows real-time monitoring of system operation, displaying information such as active faults, the last 5 errors recorded , and a cumulative hour counter, useful for maintenance planning. These advanced features make the panel easy to use, even for less experienced users.
Complete electrical engine protection
The Leo 10C1-S1 features overload , low and high voltage protection, and dry-running protection via a free sensor . This ensures complete motor protection, preventing damage caused by abnormal electrical conditions or lack of water. The system automatically shuts down in the event of problems, preventing serious and costly breakdowns.
Characteristics
- Electrical panel for pump control
- Direct start
- For 1 engine
- Power supply from 0.37 to 2.2 kW (0.5 to 3 HP)
- Overload protection
- High/low voltage protection
- Protection against free running
- Multifunction LCD graphic display
- View last 5 errors
- IP54 protection

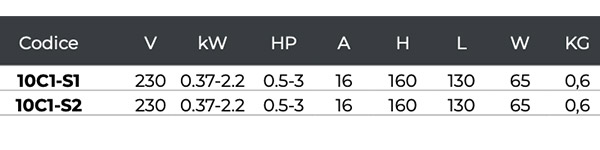

Technical Data
| Model | C1-S1 | C1-S2 |
| Code | 10C1-S1 | 10C1-S2 |
| Power Supply | 230 V | 230 V |
| Power | 0.5÷3 HP (0.37÷2.2 kW) | 0.5÷3 HP (0.37÷2.2 kW) |
| Protection | IP54 | IP54 |
| Display | Multifunction LCD | Multifunction LCD |
| Errors Displayed | 5 | 5 |
| Counter | Cumulative | Cumulative |
| Fault Reporting | YES | YES |
| Overload Protection | YES | YES |
| Dry Run Protection | YES | YES |
| Level Regulator Function | NO | YES |
