Leo 5DWm / P
Clean Water Pump
230V - 0.75÷1.2 HP
83.2 L/min - Head 73 m
Ø 1” 1/4
€299.00
€245.08 tax excl.
Warranty 2
years
Shipped on Pallet
LEO 5DWm / P - Submersible Pump
Leo 5DWm / p is a 5 inch submersible electric pump with impeller and diffuser in technopolymer . This type of electric pump is recommended for use with clean , sand-free water and is ideal for drawing water from rivers, collection tanks, wells, etc. The pumps can be used both in the domestic civil sector and in the agricultural sector for irrigation and water distribution.
The Leo electric pumps of the 5DWm / p range have a single- phase power supply and are extremely robust and resistant thanks to the stainless steel casing ; they can be immersed to a depth of 20 meters and can suck up liquids with a maximum temperature of 35 ° C.
Features
- Technopolymer impeller and diffuser
- Maximum liquid temperature: 35 ° C
- Minimum shaft diameter: 132 mm
- Maximum diving depth: 20 meters
- Outlet diameter: 1 '' 1/4
- 15 meter cable
- Insulation class: F.
- Degree of protection: IP68

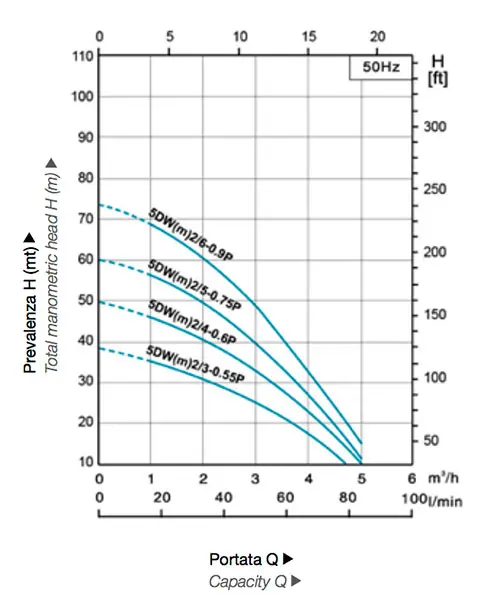

Performance diagram Leo EMH electric pump

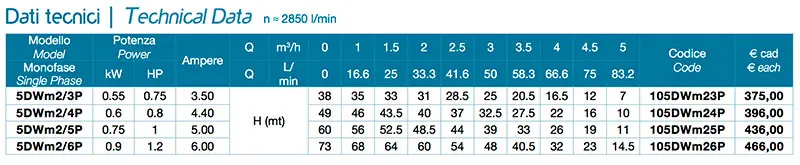

Technical data
| Template | 5DWm2 / 3P | 5DWm2 / 4P | 5DWm2 / 5P | 5DWm2 / 6P |
| Power Supply | 230V | 230V | 230V | 230V |
| Nominal power | 0.55 kW - 0.75 HP | 0.6 kW - 0.8 HP | 0.75 kW - 1 HP | 0.9 kW - 1.2 HP |
| Max Temp. Liquid | 35 ° C | 35 ° C | 35 ° C | 35 ° C |
| Max Immersion Depth | 20 m | 20 m | 20 m | 20 m |
| Protection Class - Insulation | IP 68 - Class F | IP 68 - Class F | IP 68 - Class F | IP 68 - Class F |
| Motor | Rewindable | Rewindable | Rewindable | Rewindable |
| Cable | 15 m | 15 m | 15 m | 15 m |
| Max Temp. Liquid | 35 ° C | 35 ° C | 35 ° C | 35 ° C |
| Minimum well diameter | 132 mm | 132 mm | 132 mm | 132 mm |
