Leo LKS 900S-11000S-1300S
Multistage Submersible Electric Pump
230V - 0.88÷1.20 HP
108 L/min - Prevalenza 52 m
Ø 1"
€215.00
€176.23 tax excl.
Leo LKS Electric Submersible Pump
Leo LKS900S, LKS1100S and LKS1300S are 6" monobloc submersible electric pumps ideal for tanks and deposits in civil environments, but also for the creation of small irrigation systems.
These electric pumps are light, easy to handle and highly reliable; thanks to the mechanical seal and the use of gaskets, they guarantee great protection against infiltrations . All the components of the pumps of the LKS series by Leo are also made following all the directives that guarantee total safety.
All three models are equipped with a copper-wound motor, with integrated thermal protection. The pump body is in AISI304 with support for the float switch to allow adjustment of the movement amplitude.

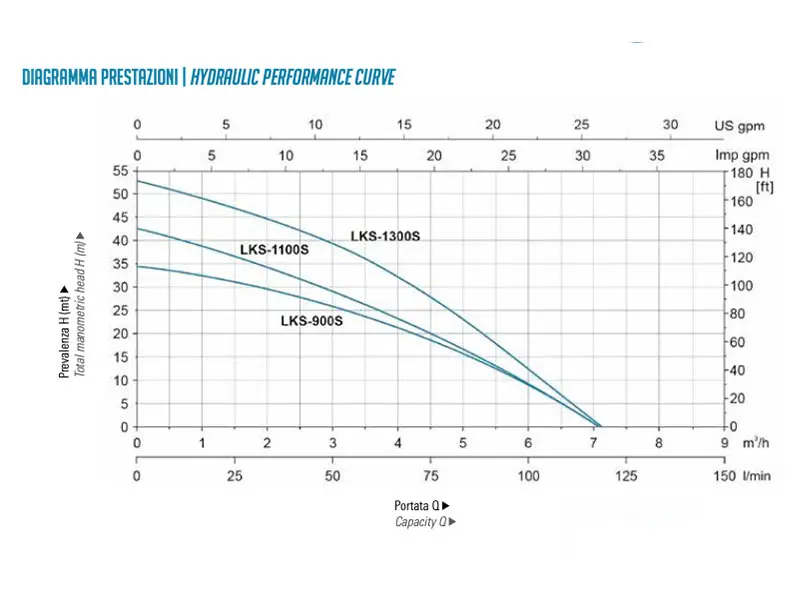

The LKS900S, LKS1100S and LKS1300S submersible pumps are characterised by high head and excellent flow rates.
Characteristics
- Body in AISI304
- 6" Monobloc
- High prevalence and excellent flow rates
- Motor with copper winding
- PRO impeller
- Mechanical Seal
- Integrated thermal protection
- Insulation Class F
- Protection class IPX8
Usage limits
- Maximum temperature of pumped liquid: 35 °C
- Head: 3.5-52 m
- Maximum immersion capacity 7 m
- Maximum particle diameter 1 mm

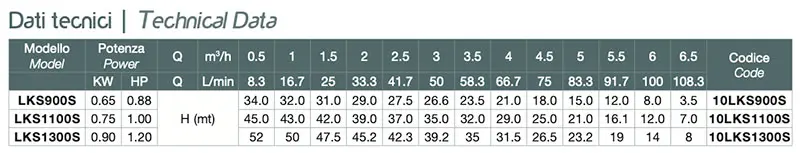

Dati Tecnici
| Modello | LKS900S | LKS1100S | LKS1300S |
| Codice | 10LKS900S | 10LKS1100S | 10LKS1300S |
| Alimentazione | 230V | 230V | 230V |
| Potenza Nominale | 0,65 kW - 0,88 HP | 0,75 kW - 1 HP | 0,90 kW - 1,20 HP |
| Diametro Particelle | 1 mm | 1 mm | 1 mm |
| Prevalenza | da 3,5 m a 34 m | da 7 m a 45 m | da 8 m a 52 m |
| Portata Liquido | 108 L/min | 108 L/min | 108 L/min |
| Max Temp. Liquido | + 35°C | + 35°C | + 35°C |
| Classe Isolamento | F | F | F |
| Materiale Corpo Pompa | AISI304 | AISI304 | AISI304 |
| Dimensioni Imballo | 25 x 21 x 48 cm | 25 x 21 x 50 cm | 25 x 21 x 52 cm |
| Peso | 11 kg | 12 kg | 13 kg |
