Leo 4DWPm
4 '' Submersible Electric Pump
230V - 1÷1.5 HP
45 L/min - Prevalence 100 m
Ø 3"
€235.00
€192.62 tax excl.
4 "Leo 4DWPm Electric Submersible Pump with peripheral impeller
The Leo 4DWPm submersible pumps have the characteristics of pumping clean water absolutely without sand . They are entirely in stainless steel , the minimum diameter of the well must be greater than 3 ", with peripheral impeller.
These electric pumps are highly reliable; thanks to the special Graphite / Ceramic mechanical seal . They can be used to draw water from rivers, wells or collection tanks, and are also suitable for civil and agricultural domestic use for the distribution of water and for irrigation of vegetable gardens and gardens.
the 4DWPm electric pump is equipped with a single-phase rewindable motor, it is also supplied with a capacitor-holder electrical panel with switch, thermal protection, automatic reset and 20 m electric cable.
Features
- Peripheral impeller
- Body in stainless steel
- Single-phase rewindable motor
- Equipped with capacitor-holder electrical panel with switch, thermal protection and automatic reset
- 20 m electric cable.
- Maximum immersion depth up to 50 m below the water level
Limits of use
- Maximum liquid temperature: 40 ° C
- Total absence of sand
- Maximum immersion depth: 50 m
- Minimum shaft diameter: 3 "

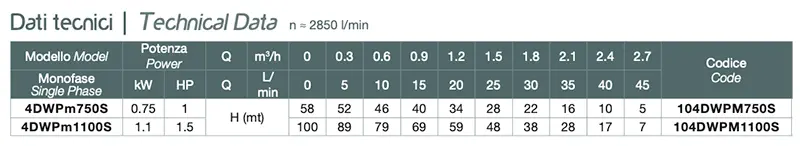

Technical data
| Template | 4DWPm750S | 4DWPm1100S |
| Code | 104DWPM750S | 104DWPM1100S |
| Power Supply | 230 V | 230 V |
| Nominal power | 0.75 kW | 1.1 kW |
| Minimum well diameter | Ø 3 '' | Ø 3 '' |
| Prevalence | 5 ÷ 58 m | 7 ÷ 100 m |
| Liquid flow rate | 45 L / min | 45 L / min |
| Max Temp. Liquid | + 40 ° C | + 40 ° C |
| Pump Body Material | AISI 201 SS | AISI 201 SS |
| Max Temp. Liquid | 40 ° C | 40 ° C |
| Electrical cable | 20 m | 20 m |
