Leo 3XRm
Electric Submersible Pump 3
230V - 0.5 ÷ 1.5 HP
60 L/min - Head 125 m
Ø 1"
€260.00
€213.11 tax excl.

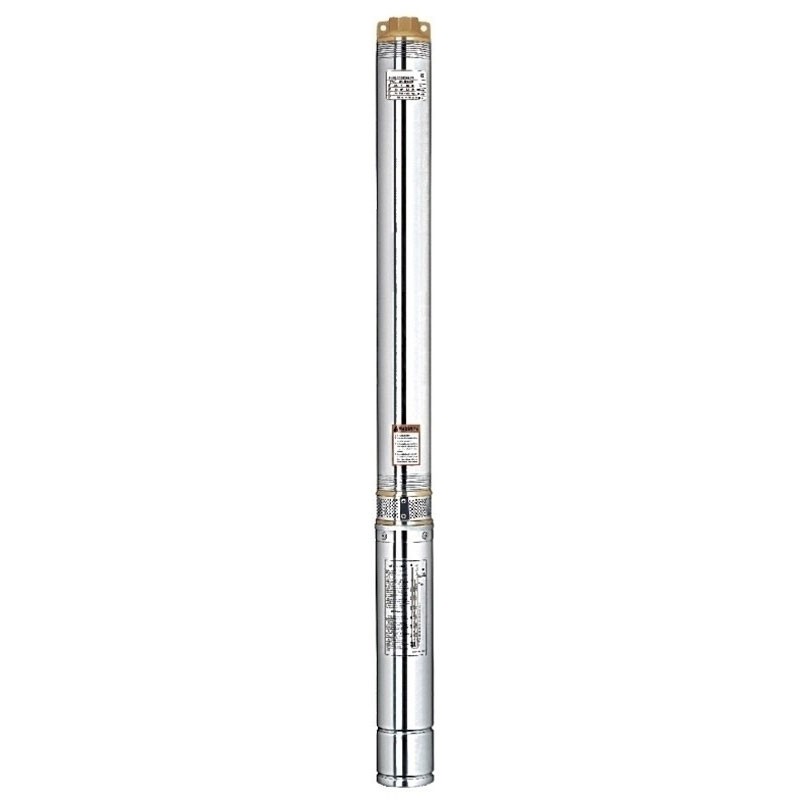

Leo 3XRm 3" Electric Submersible Pump
The 3" stainless steel submersible pumps from Leo are recommended for pumping clean water free from sediment , suitable for domestic , civil and agricultural use for water distribution and for irrigation by taking water from wells or tanks .
Functional Specifications
Using the Leo 3XRm Pump
The Leo 3XRm pump has the following usage data:
- Maximum liquid temperature up to +35°C
- Max sand content 50 g/m³
- Maximum diving depth 80 m
- Minimum well diameter 3"
Motor and pump
- Rewindable motor
- Single-phase 220V-240V/ 50 Hz
- Tolerance curves according to ISO 9906
MATERIALS
- Pump outer casing: AISI 201 SS
- Delivery body: Cast-CU ASTM280
- External motor casing: AISI 304 SS
- Mechanical seal: special SIC/TC carbon seal
Standard Equipment
- 2 meter wired cable
Technical Data
| Modello | 3XRm2/15 | 3XRm2/21 | 3XRm2/27 | 3XRm3/16 | 3XRm3/21 | 3XRm3/31 |
| Code | 103XRm2/15 | 103XRm2/21 | 103XRm2/27 | 103XRm3/16 | 103XRm3/21 | 103XRm3/31 |
| Food | 230V | 230V | 230V | 230V | 230V | 230V |
| Nominal Potential | 0.37 kW - 0.5 HP | 0.55 kW - 0.75 HP | 0.75 kW - 1 HP | 0.55 kW - 0.75 HP | 0.75 kW - 1 HP | 1.1 kW - 1.5 HP |
| Mandatory Diameter | 1'' | 1'' | 1'' | 1'' | 1'' | 1'' |
| Pozzo Minimum Diameter | 3'' | 3'' | 3'' | 3'' | 3'' | 3'' |
| Prevalence | da 27 ma 64 m | da 38 ma 89 m | da 49 ma 115 m | da 23 ma 64 m | da 31 ma 85 m | da 45 ma 125 m |
| Liquid Port | 45 L/min | 45 L/min | 45 L/min | 60 L/min | 60 L/min | 60 L/min |
| Max Temp. Liquido | +35 °C | +35 °C | +35 °C | +35 °C | +35 °C | +35 °C |
| Contenuto Max Sabbia | 50 gr/m³ | 50 gr/m³ | 50 gr/m³ | 50 gr/m³ | 50 gr/m³ | 50 gr/m³ |
| Materiale Corpo Est. Pompa | AISI 201 SS | AISI 201 SS | AISI 201 SS | AISI 201 SS | AISI 201 SS | AISI 201 SS |
| Altezza | 87 cm | 106 cm | 123 cm | 98 cm | 117 cm | 152 cm |
| Peso | 8 kg | 9.6 kg | 11 kg | 9 kg | 10.7 kg | 14 kg |
Technical Data
| Modello | 3XRm2/15 | 3XRm2/21 | 3XRm2/27 | 3XRm3/16 | 3XRm3/21 | 3XRm3/31 |
| Code | 103XRm2/15 | 103XRm2/21 | 103XRm2/27 | 103XRm3/16 | 103XRm3/21 | 103XRm3/31 |
| Food | 230V | 230V | 230V | 230V | 230V | 230V |
| Nominal Potential | 0.37 kW - 0.5 HP | 0.55 kW - 0.75 HP | 0.75 kW - 1 HP | 0.55 kW - 0.75 HP | 0.75 kW - 1 HP | 1.1 kW - 1.5 HP |
| Mandatory Diameter | 1'' | 1'' | 1'' | 1'' | 1'' | 1'' |
| Pozzo Minimum Diameter | 3'' | 3'' | 3'' | 3'' | 3'' | 3'' |
| Prevalence | da 27 ma 64 m | da 38 ma 89 m | da 49 ma 115 m | da 23 ma 64 m | da 31 ma 85 m | da 45 ma 125 m |
| Liquid Port | 45 L/min | 45 L/min | 45 L/min | 60 L/min | 60 L/min | 60 L/min |
| Max Temp. Liquido | +35 °C | +35 °C | +35 °C | +35 °C | +35 °C | +35 °C |
| Contenuto Max Sabbia | 50 gr/m³ | 50 gr/m³ | 50 gr/m³ | 50 gr/m³ | 50 gr/m³ | 50 gr/m³ |
| Materiale Corpo Est. Pompa | AISI 201 SS | AISI 201 SS | AISI 201 SS | AISI 201 SS | AISI 201 SS | AISI 201 SS |
| Altezza | 87 cm | 106 cm | 123 cm | 98 cm | 117 cm | 152 cm |
| Peso | 8 kg | 9.6 kg | 11 kg | 9 kg | 10.7 kg | 14 kg |
