Leo LKS1300S 230V
Multistage Electric Submersible Pump
MPN: 10LKS1300S
230V - 1.20 HP
108 L/min - Head 52 m
Ø 1"
€255.00
- €30.00
€225.00
€184.43 tax excl.

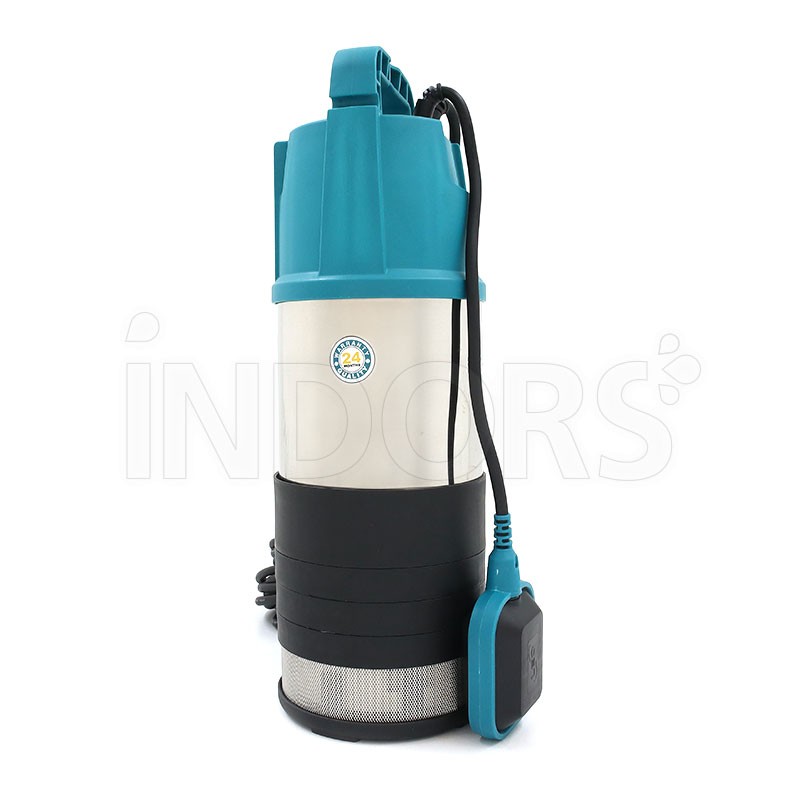

Leo LKS1300S 230V - Multistage Electric Submersible Pump
The Leo LKS1300S is a 6" monobloc submersible electric pump for professional civil use, ideal for cisterns, water tanks and irrigation systems. It guarantees a head from 8 to 52 m and a flow rate of up to 108 L/min , with a compact structure and high operational reliability.
The Leo LKS1300S submersible pump integrates a motor with copper winding , integrated thermal protection, PRO impeller and AISI304 stainless steel body , ensuring high hydraulic efficiency, corrosion resistance and protection against infiltration thanks to the professional mechanical seal.
Technical Specifications
The Leo LKS1300S has a power output of 0.90 kW – 1.20 HP , with insulation class F and IPX8 protection rating for continuous immersion. The copper electric motor guarantees thermal stability and longer life in intensive applications.
On the hydraulic level, the 6" submersible electric pump offers head from 8 to 52 metres , maximum flow rate of 108 L/min , management of particles up to 1 mm and liquid temperature up to +35°C , making it suitable for clean water and professional irrigation systems.
The AISI304 stainless steel body makes the stainless steel submersible electric pump resistant to oxidation and humid environments , ideal for installation in underground tanks and cisterns.
The copper-wound motor optimizes efficiency and continuity of service in the professional submersible pump , while the integrated thermal protection prevents overloads and overheating.
The 6-inch monoblock configuration facilitates installation and maintenance. The float switch mount allows for level control in pumping systems for tanks and water tanks.
The PRO impeller ensures flow rate and head stability, improving the performance of the submersible irrigation pump even in prolonged cycles.
Characteristics
- Body in AISI304
- 6" Monoblock
- High prevalence and excellent flow rates
- Motor with copper winding
- PRO impeller
- Mechanical Seal
- Integrated thermal protection
- Insulation Class F
- Protection Class IPX8
Limits of use
- Maximum temperature of pumped liquid: 35°C
- Head: 3.5-52 m
- Maximum immersion capacity 7 m
- Maximum particle diameter 1 mm
Technical Data
| Model | LKS1300S |
| Code | 10LKS1300S |
| Power Supply | 230V |
| Nominal Power | 0.90 kW - 1.20 HP |
| Particle Diameter | 1 mm |
| Prevalence | from 8 m to 52 m |
| Liquid Flow Rate | 108 L/min |
| Max Liquid Temp. | +35°C |
| Insulation Class | F |
| Pump Body Material | AISI304 |
| Packaging Dimensions | 25 x 21 x 52 cm |
| Weight | 13 kg |
Technical Data
| Model | LKS1300S |
| Code | 10LKS1300S |
| Power Supply | 230V |
| Nominal Power | 0.90 kW - 1.20 HP |
| Particle Diameter | 1 mm |
| Prevalence | from 8 m to 52 m |
| Liquid Flow Rate | 108 L/min |
| Max Liquid Temp. | +35°C |
| Insulation Class | F |
| Pump Body Material | AISI304 |
| Packaging Dimensions | 25 x 21 x 52 cm |
| Weight | 13 kg |
