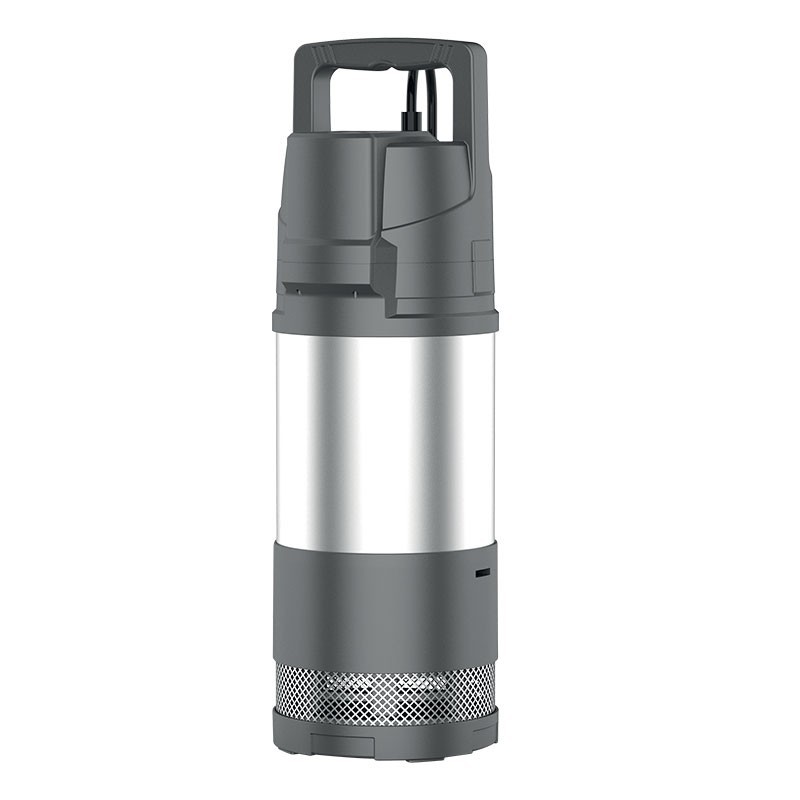

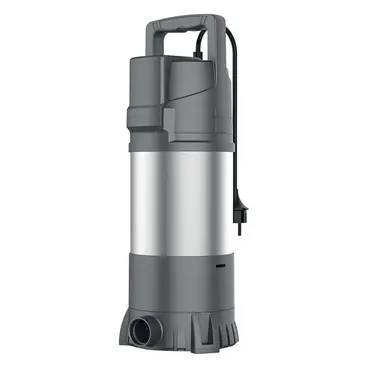

Leo Leotronic LKS1102SE / LKS1102SE-1 - Automatic Electronic Submersible Pump
Leo Leotronic LKS1102SE / LKS1102SE-1, electronic multistage submersible electric pump for pumping clean water and liquids with similar physical-chemical characteristics.
For pressurization from wells and tanks, rainwater harvesting, domestic use, and small irrigation applications.
Electronic flow and pressure control system for automatic operation, pump body in AISI 304, IP68 protection, and motor with integrated thermal protection.
Available Models
- LKS1102SE code. 10LKS1102SE - with suction strainer, 2 L expansion tank, 4-way brass fitting, pressure gauge
- LKS1102SE-1 code. 10LKS1102SE-1 - 1" connection
Functional Specifications
Automatic Pressurization
The integrated electronic flow and pressure control system allows the pump to operate automatically based on water demand, making it suitable for pressurization systems.
Clean Water Pumping
The multistage submersible pump is designed for pumping clean water and liquids with similar physical-chemical properties.
Pressurization from Wells and Tanks
Suitable for pressurization from traditional wells, storage tanks, and rainwater harvesting systems.
AISI 304 Pump Body
The pump body made of AISI 304 stainless steel offers high corrosion resistance and is suitable for applications in humid environments.
IP68 Protection
IP68 protection makes the motor suitable for submersible operation, with a maximum immersion depth of 12 m.
Motor with Thermal Protection
The motor features a copper winding and integrated thermal protection, with an F insulation class for reliable operation.
Integrated Pressurization Kit
The LKS1102SE model comes with a suction strainer, 2 L expansion tank, 4-way brass fitting, and pressure gauge, completing the necessary equipment for system pressure management.

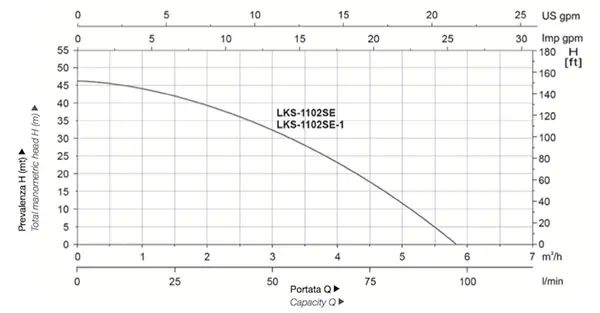

The table below shows the flow rates based on the required head.
| Leo LKS1102SE / LKS1102SE-1 | |||||||||||
| Capacity (L/min) | 8,3 | 17 | 25 | 33 | 42 | 50 | 58 | 67 | 75 | 83 | 92 |
| Head (m) | 45 | 43,7 | 42 | 39,6 | 36,5 | 32,5 | 28 | 22,7 | 17,1 | 11 | 5 |
Features
- Integrated electronic control
- Automatic operation with flow and pressure control system
- Extremely quiet
- Dry run protection
- Programmed automatic restart
- Integrated non-return valve
- AISI 304 stainless steel pump body
- Copper motor winding
- Motor with integrated thermal protection
- F insulation class
- IPX8 protection class
Operating Limits
- Maximum liquid temperature: 35 °C
- Head: 45 m
- Maximum immersion depth: 12 m
- Suction and discharge pipe diameter: 1"
Materials
- Handle: Technopolymer PP-GF30
- Casing: Technopolymer PP-GF30
- Cylinder: Stainless Steel AISI 304
- Cover: Aluminum ZL102
- Rotor: Nitrile Rubber NBR
- Bearing: Technopolymer PP
- Bearing Housing: Aluminum ZL102
- Stator Housing: Steel Q235
- Supports: Technopolymer PP-GF30
- Pump Body: Technopolymer PP-GF30
- Impeller: Technopolymer PPO-GF30
- Diffuser: Technopolymer PPO-GF30
- Base: Technopolymer PP-GF30
Instructions for Use
- To lower the pump, tie a rope to the handle. Do not lower the pump by the power cable;
- If the pump is to operate in water with a lot of impurities, it is advisable to install it at a certain height from the bottom to avoid clogging the inlet;
- For greater efficiency, it is preferable that the pump is fully submerged and that the float switch is free to move;
- The maximum immersion depth is limited by the length of the power cable;
- If the thermal protection activates, the pump will restart automatically when the motor has cooled down.
Standard Equipment
LKS1102SE
- Suction strainer
- 2 L expansion tank
- 4-way brass fitting
- Pressure gauge
Technical Data
| Power Supply | 230V |
| Rated Power | 0.75 kW - 1 HP |
| Flow Rate | 92 L/min |
| Head | 45 m |
| Max Liquid Temperature | 35 °C |
| Max Immersion Capacity | 12 m |
| Insulation Class | F |
| Protection Rating | IPX8 |
| Pipe Diameter | 1'' |
| Dimensions | 16 x 16 x 49 cm |
| Weight | 9.9 kg |
