Speroni SAM 316
Single-phase Submersible Electric Pumps from 0.80 HP to 1.30 HP
230 V - 0.8÷1.3 HP
200÷400 L/min - Head 9÷12 m
DNM 2’’
€1,150.00
€942.62 tax excl.

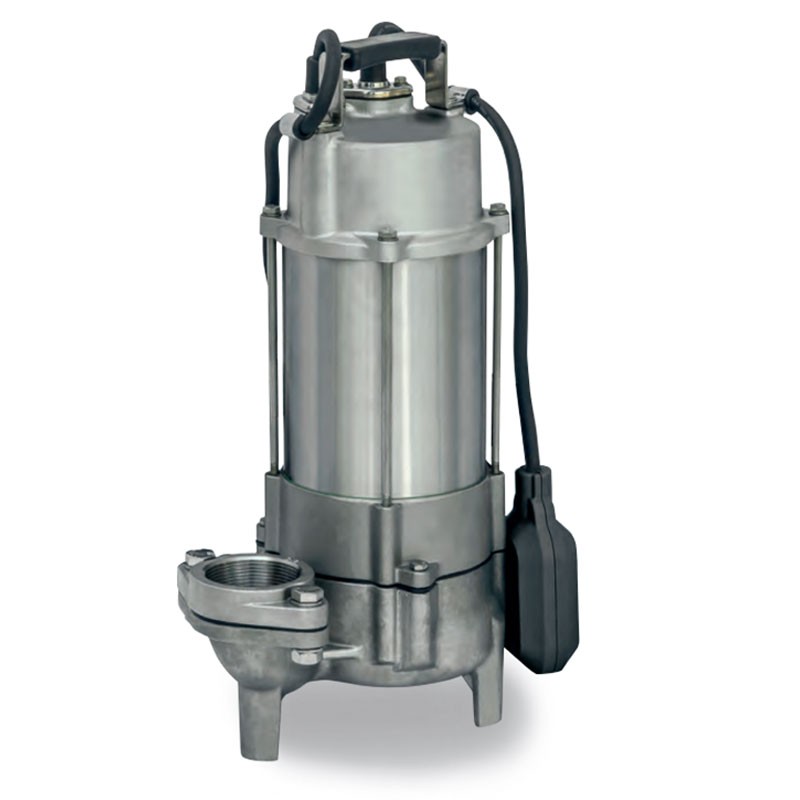

Speroni SAM 316 - Single-phase Submersible Electric Pumps from 0.80 HP to 1.30 HP for Dirty Water
Speroni SAM 316-80/S and SAM 316-130/S Submersible Drainage Pumps in AISI 316 Stainless Steel. Suitable for handling sewage and biological liquids, activated sludge, and for liquids not filtered by grids, for civil and industrial discharges, and for particularly aggressive, saline, and corrosive liquids.
These Drainage Electric Pumps feature a Single-phase 230 V Motor with float switch, equipped with Class F Insulation and IP 68 Protection.
Available Models
- SAM 316-80/S - 0.8 HP - 0.6 kW - Single-phase 230V
- SAM 316-130/S - 1.3 HP - 1 kW - Single-phase 230V
Three-phase 400V models from 0.80 HP to 5.50 HP are also available on our website.
Operating Limits
- Liquid temperature up to 35°C (for domestic use according to EN 60335-2-41)
- Max. liquid temperature 40°C (for other uses)
- Maximum immersion depth 10 meters (for domestic use according to EN 60335-2-41)
- Maximum immersion depth 20 meters with cable of adequate length
- Minimum suction level 150 mm
- Continuous service
Motor
- Single-phase 230V-50Hz (with float switch)
- Class F Insulation
- IP 68 Protection
- Thermal protector
Materials
- Motor body AISI 316 Stainless Steel
- Pump body AISI 316 Stainless Steel
- Top cover AISI 316 Stainless Steel
- Impeller AISI 316 Stainless Steel
- Motor cylinder AISI 316 Stainless Steel
- Motor shaft AISI 316 Stainless Steel
- Double mechanical seal in oil chamber Ceramic/Graphite/Viton/Silicon/Silicon/Viton

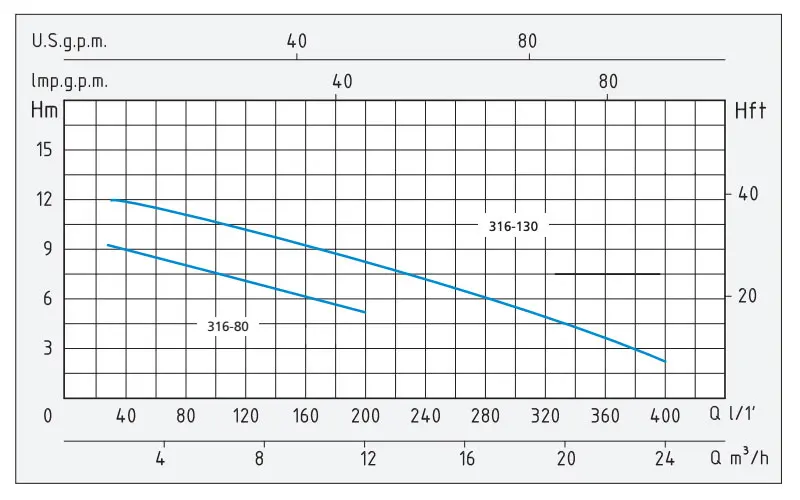

Hydraulic Curve

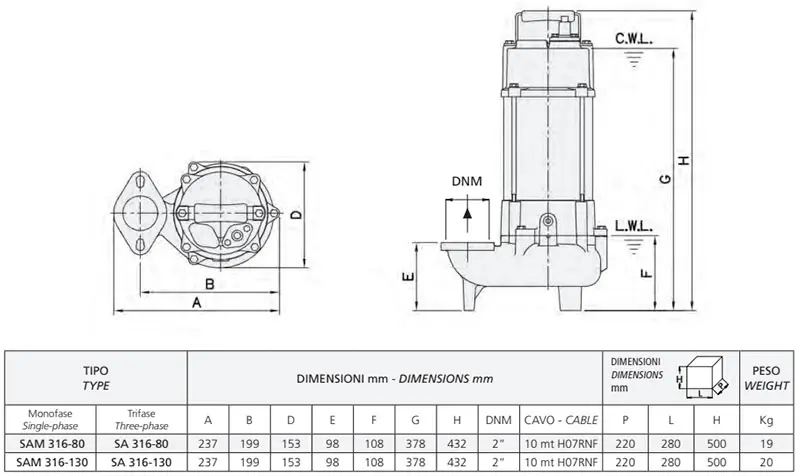

Product Dimensions
Technical Data
| Model | SAM 316-80/S | SAM 316-130/S |
| Power Supply | 230 V | 230 V |
| Nominal Power | 0.80 HP (0.6 kW) | 1.30 HP (1 kW) |
| Discharge Diameter | DNM 2'' | DNM 2'' |
| Min Head | 5 m | 2 m |
| Max Head | 9.2 m | 12 m |
| Liquid Flow Rate | 200 L/min | 400 L/min |
| Protection Class - Insulation | IP 68 - F | IP 68 - F |
| Dimensions with packaging | 24 x 15 x 43 cm | 24 x 15 x 43 cm |
| Weight | 19 kg | 20 kg |
