MHS TMR-HD 1600 + IT 500 CTH
Pliers with 50 cm Chainsaw Kit
and Assembled Rotator
Capacity 0.30 m³
Capacity 3000 kg
For machines 6.0÷12.0 Ton

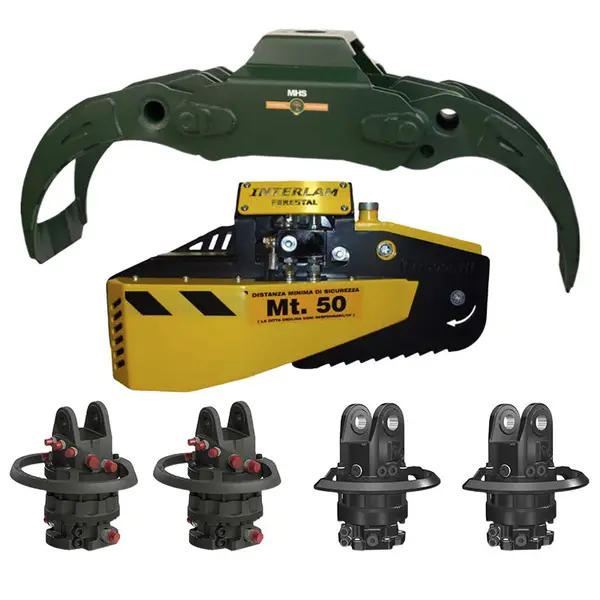

MHS TMR 1600 HD Reinforced + IT 500 CTH - Pliers with 50 cm Chainsaw Kit and Rotator
For operating machines from 6 to 12 tons.
MHS Complete, pre-assembled forestry kit consisting of a TMR 1600 forestry grapple , an IT 500 CTH hydraulic chainsaw , and a hydraulic rotator . Designed for professional felling, sectioning, and log handling, it is compatible with machines weighing 6 to 12 tons . Supplied with an integrated plate and hydraulic system, ready for assembly.

This MHS kit includes TMR 1600 HD caliper + IT 500 CTH chainsaw + a rotator of your choice.
The kit is already assembled and CE certified.
Technical specifications
The TMR HD 1600 closed-fork grapple is built for heavy-duty forestry applications, with a reinforced structure and wide opening. The IT500CTH hydraulic chainsaw allows cuts up to Ø 500 mm , with automatic lubrication and quick mechanical chain tensioner. The system requires a hydraulic flow of 70 to 100 L/min and a maximum pressure of 250 bar , compatible with standard auxiliary lines for compact operating machines from 6 to 12 tons.

TMR-HD 1600 S700 caliper
The MHS TMR 1600 HD reinforced clamp for agricultural and forestry use has a maximum capacity of 0.30 m³ and a maximum load capacity of 3000 kg . It is designed for a maximum pressure of 200 bar , with an IMEX 700 structure, guaranteeing excellent performance and solidity even in harsh conditions.

| Model | TO | B | C | D | AND | F | G |
| TMR 1600 | 590 | 875 | 120 | 780 | 1570 | 630 | 400 |
Measurements expressed in millimeters (mm).

IT 500 CTH Chainsaw
The MHS IT 500 CTH hydraulic chainsaw allows a maximum cutting diameter of Ø 500 mm and is designed for an operating pressure of up to 250 bar and an oil flow rate of 70 to 100 L/min . Equipped with automatic lubrication , a 1.5 L tank and a quick mechanical chain tensioner , it offers operational efficiency and simplified maintenance. The unit weighs 115 kg .

Available variants

With GRS10 Rotator
- 6-way flanged connection
- 360° rotation / unlimited
- Dynamic capacity +5,000 / -4,000 kg
- Static capacity +10,000 / -8,000 kg
- Max pressure 250 bar
- Recommended oil flow rate 25 L/min
- Torque 2500 Nm
- Weight 64 kg
- Diameter Ø 35 mm

With GRS12S Rotator
- 6-way flanged connection
- 360° rotation / unlimited
- Dynamic capacity +6,000 / - 4,500 kg
- Static capacity +12,000 / - 9,000 kg
- Max pressure 250 bar
- Recommended oil flow rate 35 L/min
- Torque 2500 Nm
- Weight 75 kg
- Diameter Ø 45 mm

With Rotator GV124
- 6-way flanged connection
- 360° rotation / unlimited
- Dynamic capacity 5,000 kg
- Static capacity 10,000 kg
- Max pressure 250 bar
- Recommended oil flow rate 25 L/min
- Torque 2200 Nm
- Weight 59 kg
- Diameter Ø 35 mm

With Rotator GV124S
- 6-way flanged connection
- 360° rotation / unlimited
- Dynamic capacity 5,000 kg
- Static capacity 10,000 kg
- Max pressure 250 bar
- Recommended oil flow rate 25 L/min
- Torque 2200 Nm
- Weight 65.9 kg
- Diameter Ø 45 mm
Compatibility
Suitable for 6 to 12 ton operating machines with double-acting hydraulic circuit. The kit is supplied fully assembled and tested . Check before installation:
- Hydraulic system flow and pressure
- Machine lifting capacity
- Type of attachment and controls available for the rotator
Compatibility table for maximum recommended load capacity
| Operating Machine Tonnage Range | Maximum Recommended Clamp Load Capacity |
| 3 ÷ 4 tons | 2000 kg |
| 4 ÷ 5 tons | 2000 kg |
| 5 ÷ 6 tons | 2000 ÷ 3500 kg |
| 6 ÷ 8 tons | 3500 kg |
| 8 ÷ 10 tons | 3500 kg |
| 10 ÷ 12 tons | 4000 ÷ 5000 kg |
| 12 ÷ 14 tons | 5000 kg |
| 14 ÷ 16 tons | 5000 kg |
| 16 ÷ 18 tons | 5000 kg |
| 18 ÷ 20 tons | 5000 kg |
| 20 ÷ 24 tons | 5000 kg |
Watch the video
Characteristics
- MHS TMR-HD 1600 closed fork gripper
- MHS IT 500 CTH Chainsaw
- Max cutting diameter 500 mm
- Required oil flow rate from 70 to 100 L/min
- Max pressure 250 bar
- Chain oil tank 1.5 L
- Automatic chain lubrication
- Quick mechanical chain tensioner
- GRS10 / GRS12S / GV124 / GV124S rotator
- Complete pre-assembled kit with plate and system included
- For operating machines from 6 to 12 tons
Technical Data
| TMR 1600 HD caliper | |
| Forks | Closed |
| Max Capacity | 0.30 m³ |
| Max. Flow Rate | 3000 kg |
| Bar Max | 200 bars |
| Material | IMEX 700 steel |
| Operating Machine Mass | 6.0÷12.0 Tons |
| Closed Dimension | 59 x 87.5 x 40 cm |
| Open Dimension | 78 x 157 x 40 cm |
| Weight | 235 kg |
| IT 500 CTH Chainsaw | |
| Max Cutting Diameter | Ø 50 cm |
| Hydraulic Flow | 70÷100 L/min |
| Oil Tank Capacity | 1.5 L |
| Bar Max | 250 bars |
| Chain Lubrication | Automatic |
| Mechanical Chain Tensioner | Quick |
| Weight | 115 kg |
| Pliers + Chainsaw + Rotator Kit | |
| Approximate Dimensions | 59 x 88 x 60 cm |
| Approximate weight with GRS10 | 415 kg |
| Approximate weight with GRS12S | 425 kg |
| Approximate weight with GV124 | 410 kg |
| Approximate weight with GV124S | 416 kg |
