Baltrotors GR105DB
Rotator with 6 Hole Flange
+100/-80 kN for Forestry Grapples
MPN: GR105DB
Unlimited rotation
+100/-80 kN - 25 L/min
For Forestry Pliers
Warranty 2
years
Shipped on Pallet
Baltrotors GR105DB - Rotator +100/-80 kN with 6 Hole Flange - for Forestry Grapples

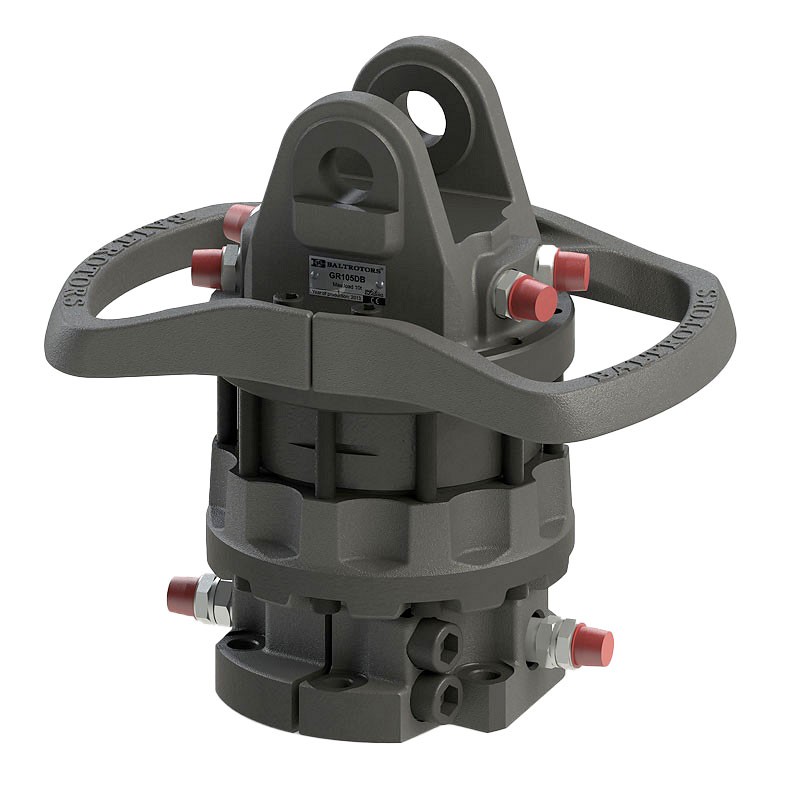

Baltrotors GR105DB is a lightweight mechanical rotator for agricultural or forestry equipment , suitable for simple and economical applications.
It has unlimited rotation , a capacity of 100 kN in traction and -80 kN in compression and an oil flow of 25 L/min .
With 6-hole rectangular flange lower connection .
Compatibility for MHS Pliers
- MHS TMR-HD 1600 IMEX 700 Reinforced Closed Forks
- MHS TMR-HD 1600 IMEX 700 Reinforced Open Forks
- MHS TMR-HD 1800 IMEX 700 Reinforced Closed Forks
- MHS TMR-HD 1800 IMEX 700 Reinforced Open Forks

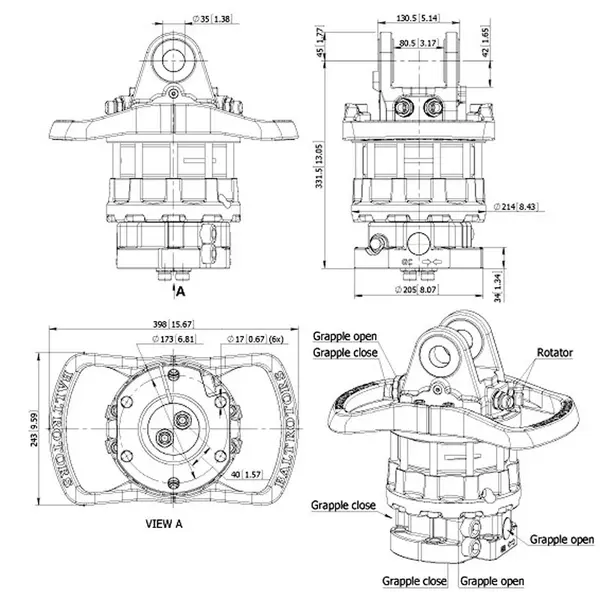

Technical Data
| Rotation | Unlimited |
| Max Static Axial Load | +100/-80 kN |
| Max Dynamic Axial Load | +54/-40 kN |
| Couple | 2500 Nm |
| Recommended Oil Flow | 25 L/min |
| Upper Connection L | 80.5mm |
| Upper Connection D | Ø 35 mm |
| Dimensions | 24.3 x 33.2 x 20.5 cm |
| Weight | 62 kg |
