Baltrotors GR603DB
Rotator with 6-Hole Flange
60 kN for Forestry Grapples
MPN: GR603DB
Unlimited rotation
60 kN - 25 L/min
For Forestry Pliers
Warranty 2
years
Shipped on Pallet

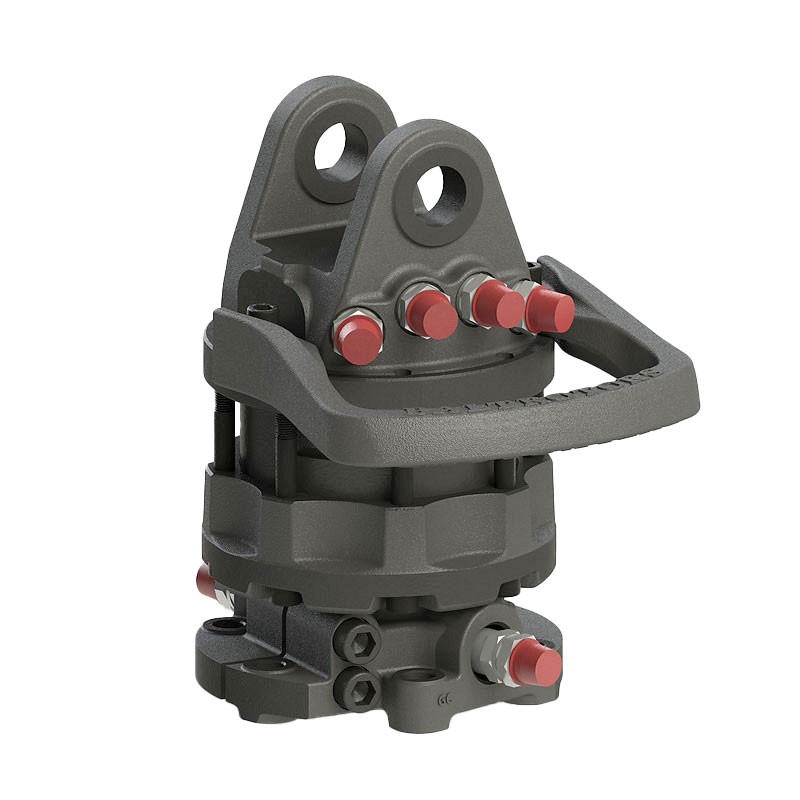

Baltrotors GR603DB - 60 kN Rotator with 6-Hole Flange - for Forestry Grapples
Baltrotors GR603DB is a lightweight mechanical rotator for agricultural or forestry equipment Double Bearing
It has unlimited rotation , a capacity of 60 kN and an oil flow of 25 L/min .
With 6-hole rectangular flange bottom connection .
Compatibility with MHS Pliers
- MHS TMR-HD 1600 IMEX 700 Reinforced Closed Forks
- MHS TMR-HD 1600 IMEX 700 Reinforced Open Forks
Technical Data
| Rotation | Unlimited |
| Max Static Axial Load | 60 kN |
| Max Dynamic Axial Load | 30 kN |
| Couple | 1800 Nm |
| Recommended Oil Flow | 25 L/min |
| Upper Connection L | 80.5 mm |
| Upper Connection D | Ø 35 mm |
| Dimensions | 23.5 x 29.7 x 20.5 cm |
| Weight | 45 kg |
