Leo EVP
Multistage Vertical Pump

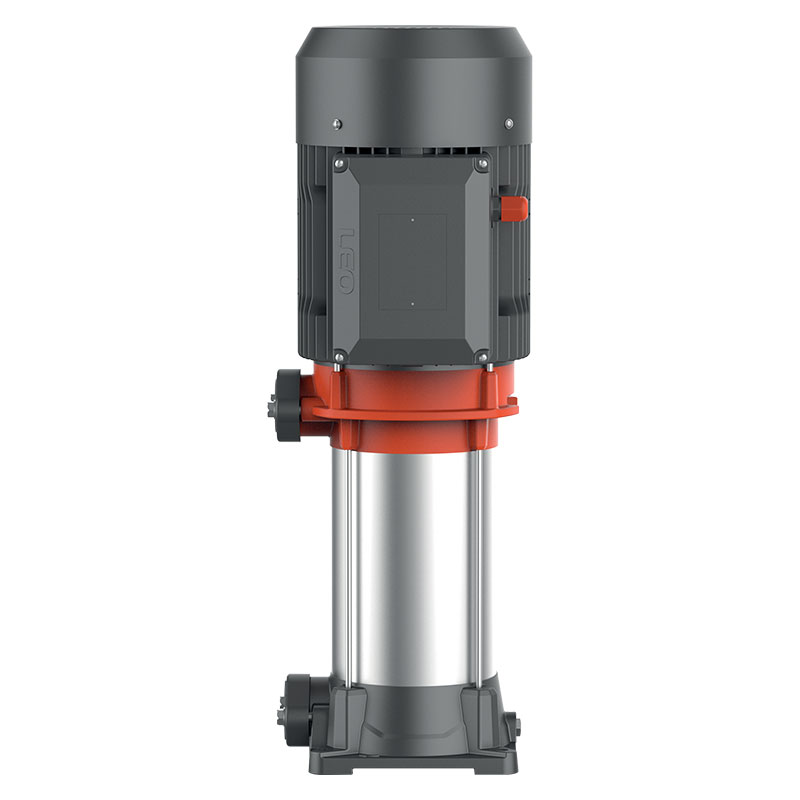

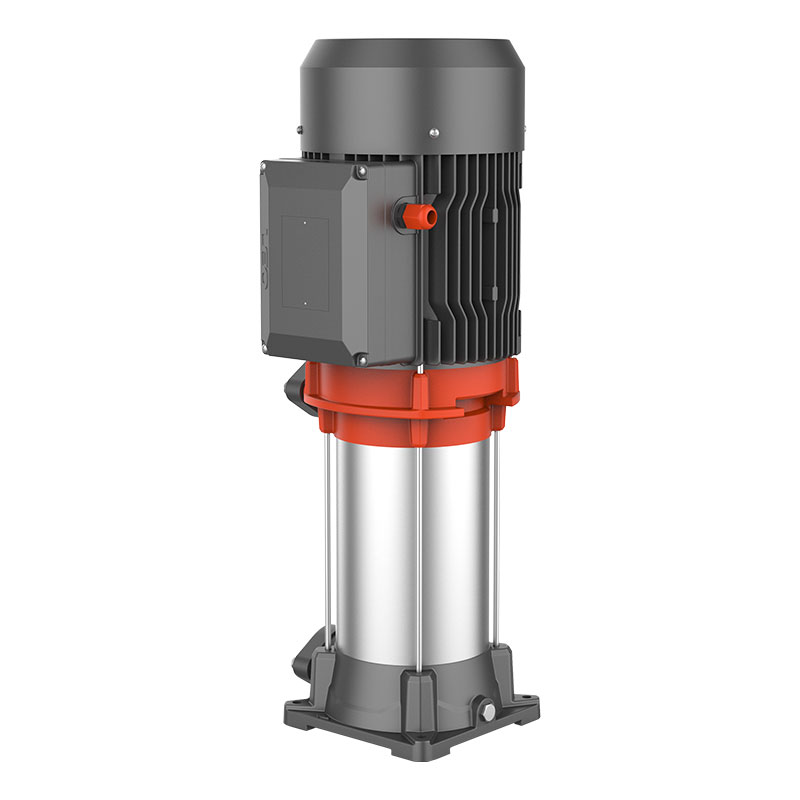

Leo EVP - Multistage Vertical Pump

The LEO EVP multistage vertical pump with stainless steel body and PPO impeller is easy to install and maintain and is suitable for various uses, flow rates and pressures.

The EVP pump is a pressure booster system designed to meet the water supply needs in various contexts, such as condominiums, communities and industries. This pump can also be used to improve water pressure in cleaning systems, fire protection systems, agricultural irrigation and civil and industrial cooling systems.

EVP pumps feature a vertical multistage design , making them suitable for a wide range of applications, flow rates and pressure ranges. Their flexibility allows the water inlet and outlet to be rotated to suit specific installation requirements. They are also easy to install and maintain.

Application

• Water supply: pressure booster sets for condominiums and communities
• Industrial Pressure Increase: Water System, Cleaning System and Fire Fighting System
• Increased pressure for irrigation and agriculture
• Civil and industrial cooling systems

Pump

• Vertical multistage pumps
• Applicable for a wide range of uses, flow rates and pressure ranges
• The water intake and delivery can be rotated according to installation requirements.
• Easy installation and maintenance
• Advanced design of hydraulic parts ensures operation stability and high efficiency
• Suction and delivery in cast iron with special anti-rust treatment
• High reliability stainless steel welded shaft

Working conditions

• Liquid temperature: +5°C ~ 60°C
• Maximum ambient temperature: +40 °C
• Maximum pressure: 15 bar
• Altitude: up to 1000 m

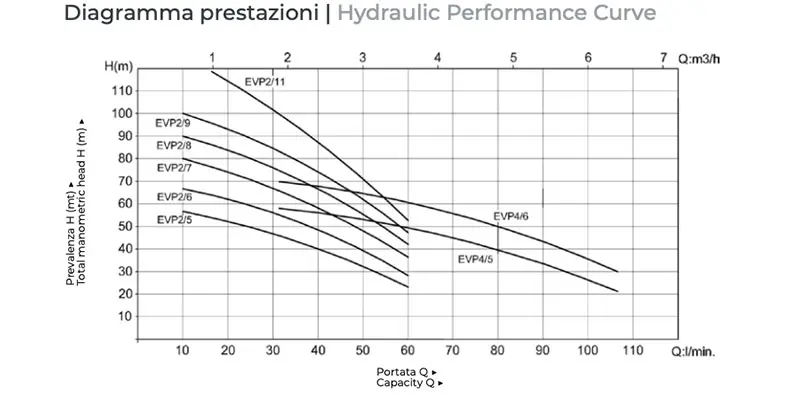

Operation curves

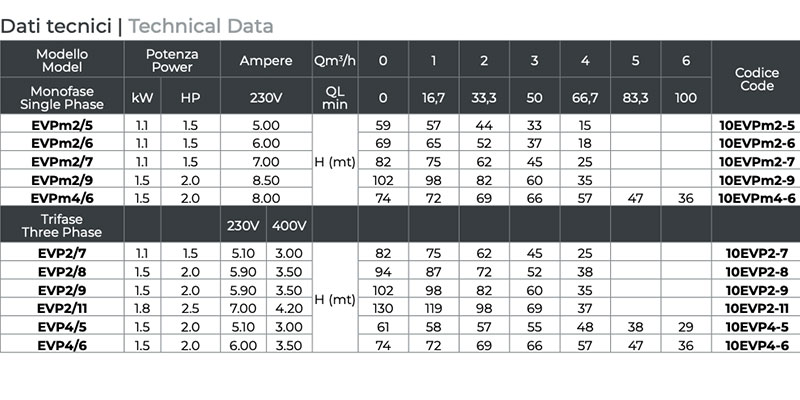

Model Selection Instructions

• Voltage and frequency:
• Single phase 220-240 V / 50 Hz
• Three phase 380-415V / 50Hz
