Leo EMH
Multistage Stainless Steel Electric Pump
230V / 400V - 0.75÷1.5HP
75 L/min - Head 61.5 m
Ø 1" 1/4
€183.00
€150.00 tax excl.
Warranty 2 years
Shipped on Pallet
LEO EMH - Electric Centrifugal Pump
Leo EMH is a multistage centrifugal electric pump ideal for use in various fields both in the civil and industrial sectors . This pump can be used for the transfer of clean water and non-chemically aggressive liquids and is suitable for domestic use, for use in air conditioning and refrigeration systems, for automatic irrigation systems in vegetable gardens and gardens etc.
The Leo pump has an extremely solid structure, with a pump body and impellers in stainless steel ; the motor has a copper winding and is single-phase or three-phase powered depending on the model.
Characteristics
- Crankshaft in AISI 304
- Maximum liquid temperature: 60 °C
- Installation altitude up to 1000 m
- Manometric suction height up to 7 m
- PH values between 6.5 - 8.5
- Motor with copper winding
- Thermal protection on single-phase motors
- Insulation class: F
- Degree of protection: IP X4
- Max ambient temperature: 40 °C

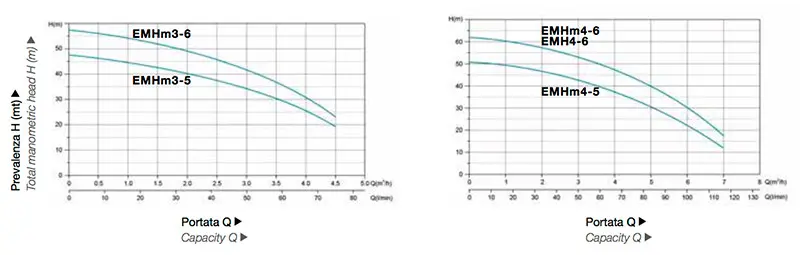

Leo EMH Electric Pump Performance Diagram

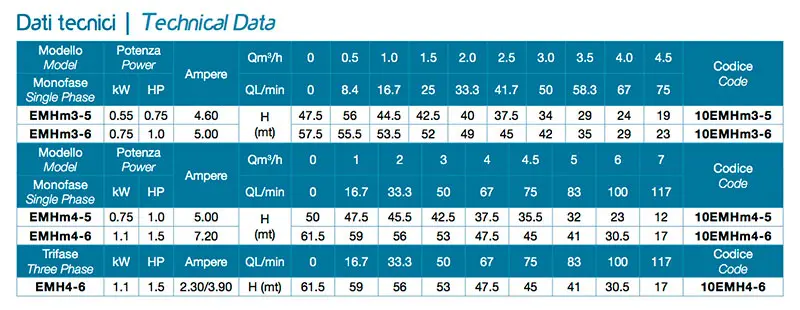

Technical Data
| Model | EMHm 3/5 | EMHm 3/6 | EMHm 4/5 | EMHm 4/6 | EMH 4/6 |
| Power Supply | 230V | 230V | 230V | 230V | 400V |
| Rated power | 0.55 kW - 0.75 HP | 0.75 kW - 1 HP | 0.75 kW - 1 HP | 1.1 kW - 1.5 HP | 1.1 kW - 1.5 HP |
| Number of Impellers | 5 | 6 | 5 | 6 | 6 |
| Max Liquid Temp. | 60°C | 60°C | 60°C | 60°C | 60°C |
| Manometric Suction Height | 7 m | 7 m | 7 m | 7 m | 7 m |
| Protection Class | IP X4 | IP X4 | IP X4 | IP X4 | IP X4 |

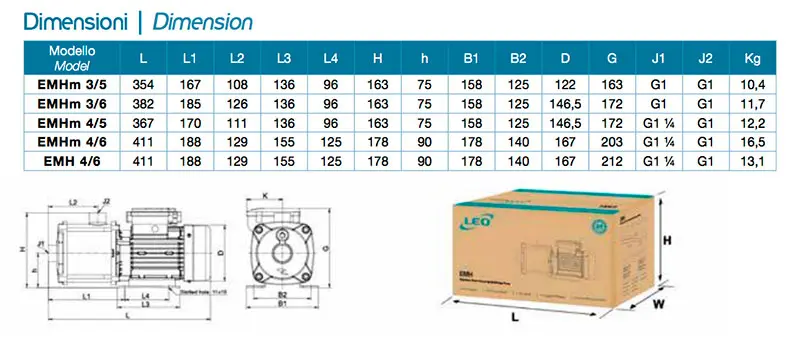

| Dimensions | 35 x 16 x 16 cm | 38 x 16 x 17 cm | 37 x 16 x 17 cm | 41 x 18 x 20 cm | 41 x 118 x 21 cm |
| Weight | 10.4 kg | 11.7 kg | 12.2 kg | 16.5 kg | 13.1 kg |
Technical Data
| Model | EMHm 3/5 | EMHm 3/6 | EMHm 4/5 | EMHm 4/6 | EMH 4/6 |
| Power Supply | 230V | 230V | 230V | 230V | 400V |
| Rated power | 0.55 kW - 0.75 HP | 0.75 kW - 1 HP | 0.75 kW - 1 HP | 1.1 kW - 1.5 HP | 1.1 kW - 1.5 HP |
| Number of Impellers | 5 | 6 | 5 | 6 | 6 |
| Max Liquid Temp. | 60°C | 60°C | 60°C | 60°C | 60°C |
| Manometric Suction Height | 7 m | 7 m | 7 m | 7 m | 7 m |
| Protection Class | IP X4 | IP X4 | IP X4 | IP X4 | IP X4 |
| Dimensions | 35 x 16 x 16 cm | 38 x 16 x 17 cm | 37 x 16 x 17 cm | 41 x 18 x 20 cm | 41 x 118 x 21 cm |
| Weight | 10.4 kg | 11.7 kg | 12.2 kg | 16.5 kg | 13.1 kg |
INDORS is an Authorized Service and Repair Center
Our workshop is able to guarantee efficient and professional repairs: speed; of intervention, competence and availability are our strengths.
By purchasing from Indors you will also have purchased peace of mind: our Assistance and Repairs Service guarantees quick and timely solutions for any problem thanks to the safe availability; of spare parts, your equipment will always be efficient and available within a few days at a low cost. More information
EU Warranty 2 Anni
All products sold by Indors are covered by a legal guarantee of 2 years from the date
of purchase for purchases by individuals (12 months for professional users) for lack of conformity,
pursuant to art. 128 ff. Legislative Decree no. 206/2005.
More information
- Efrain
this pumps comes in 480V? - INDORS
not avaible 480 volt
