Leo XKS1000SW
Submersible Electric Pump
for Drainage in Stainless Steel

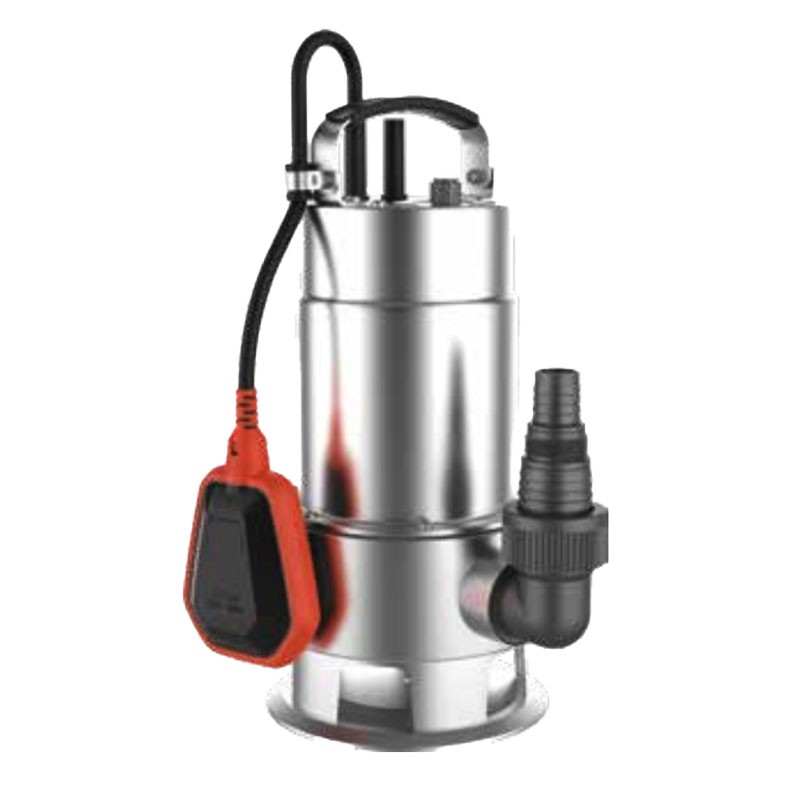

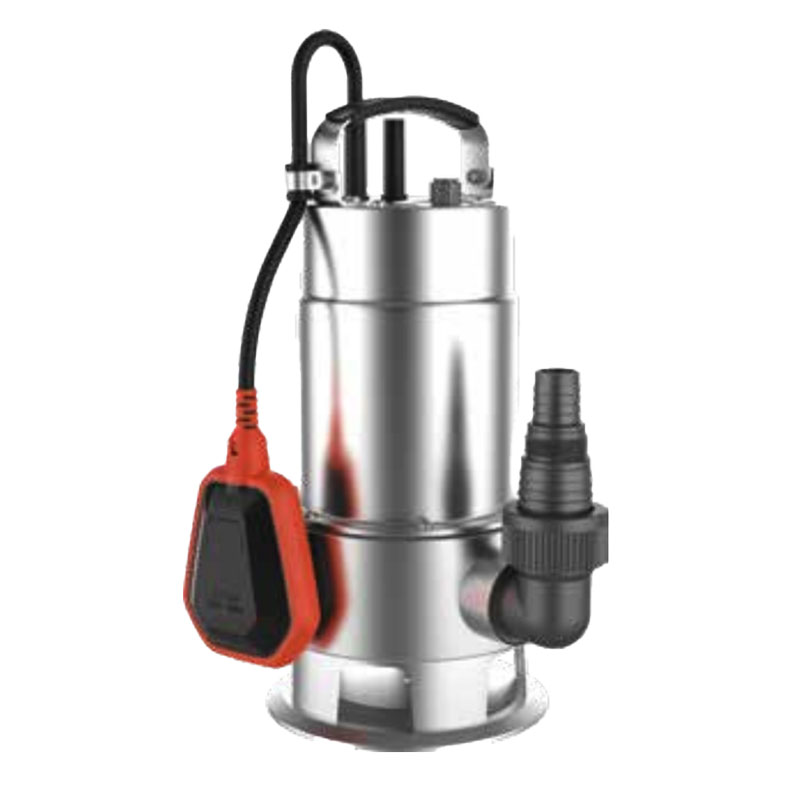

Leo XKS1000SW - Stainless Steel Submersible Drainage Pump

Leo XKS1000SW is a submersible drainage electric pump , light and easy to handle, made of stainless steel to ensure maximum resistance and reliability. The double protection against infiltrations is ensured by a mechanical seal and a gasket that reinforce its operational safety.

Designed to handle liquids up to 35°C and works in environments up to 40°C , the pump can be immersed up to a maximum depth of 7 m . It is capable of reaching a maximum head of 11 m and a flow rate of up to 13.5 m³/h , and supporting the passage of particles up to 35 mm in diameter. Powered by 230V with a 10 m H05RN-F cable, this Leo electric pump offers a power of 1.4 HP (1 kW) and a consumption of 4.5 A.

This electric pump has a 1'' 1/2 outlet , with an insulation class F and an IPX8 protection rating. All components comply with the WEE, ROHS and PAHS directives , ensuring maximum safety during every use.

Characteristics

• Single phase motor 230V
• Power 1.4 HP 1 kW
• Max immersion depth 7 m

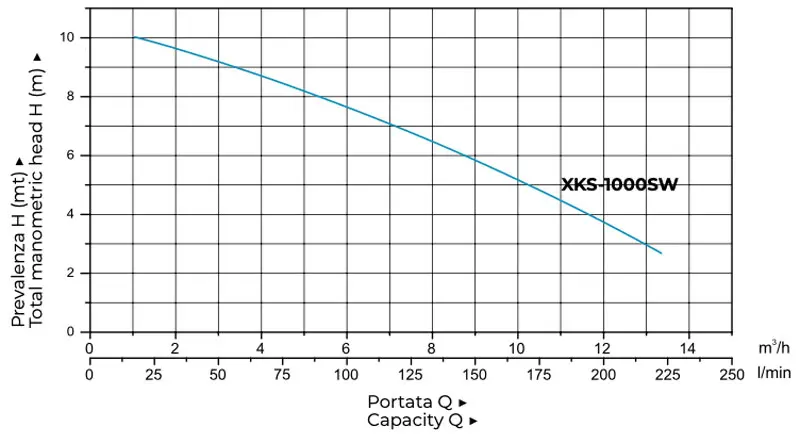

• Max head 11 m
• Max flow rate 13.5 m³/h
• Max liquid temperature 35°C
• Max ambient temperature 40°C
• Max particles manageable 35 mm
• 1'' 1/2 outlet
• For clear and loaded waters
• Protection class IPX8

Usage limits

• Maximum liquid temperature: 35 °C
• Maximum immersion capacity: 7 m

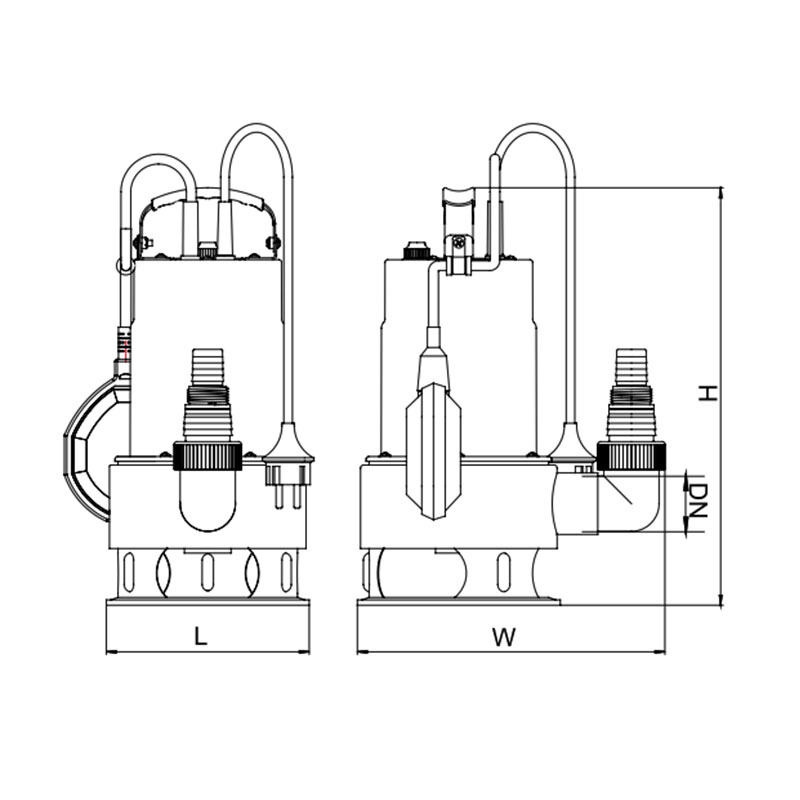

• DN 40

Instructions for use

• Do not lower the pump using the power cable but attach a rope to the pump handle;
• If you are dealing with very dirty water, it is advisable to position the pump at a certain height from the bottom to avoid blocking the inlet pipe;
• It is advisable to install the electric pump ensuring that it is completely submerged and that the float switch is free to move;
• The maximum immersion depth is limited by the length of the power cable;
• If the thermal protection trips, the pump will automatically restart after the motor has cooled down.
