Leo VertyLEO 750PWA - Drainage Electric Pump

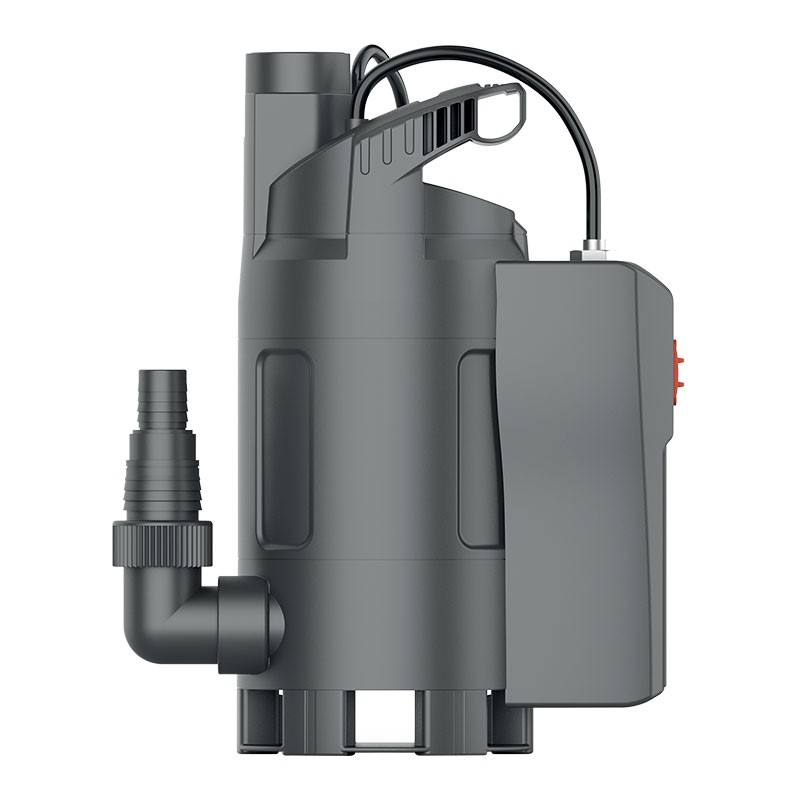

Leo VertyLEO 750PWA is a lightweight and easy-to-handle drainage electric pump , designed to ensure reliability and safety thanks to a double protection system against infiltrations, which combines a mechanical seal and an additional gasket . Equipped with a protected vertical mechanical float , it offers the possibility of both lateral and upper discharge , easily adapting to different operating needs. It is designed to operate automatically even in tight spaces , such as 25x25 cm wells.

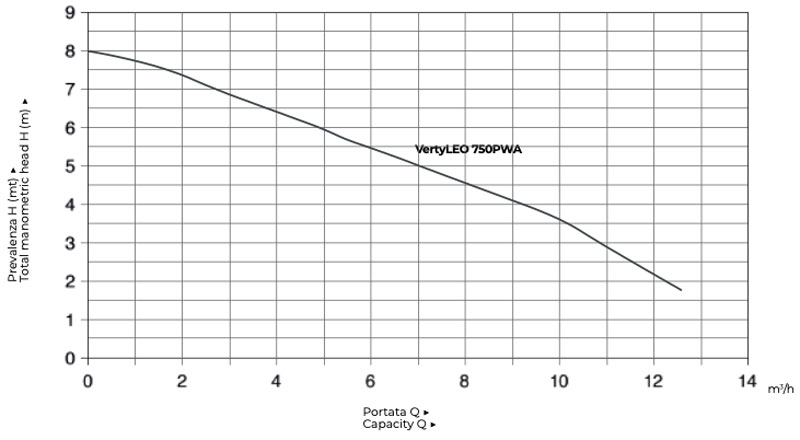

This Leo electric pump works with a single-phase 230V power supply, delivering 1 HP (0.75 kW) power and a consumption of 3.5 A. It can immerse itself to a maximum depth of 7 m and reaches a head of 8 m , with a flow rate of up to 13 m³/h . It can handle particles with a diameter of up to 25 mm and has a 1'' 1/4 outlet.

IPX8 protection and H05RN-F cable ensure safety and resistance even in difficult conditions, while compliance with WEE, ROHS and PAHS directives ensures compliance with the highest standards.

Characteristics

• Single phase motor 230V
• Power 1 HP 0.75 kW
• Max immersion depth 7 m
• Max head 8 m
• Max flow rate 13 m³/h
• Max liquid temperature 35°C
• Max ambient temperature 40°C
• Max particles manageable 25 mm
• 1'' 1/4 outlet
• For clear and loaded waters
• Protection class IPX8

Usage limits

• Maximum liquid temperature: 35 °C
• Maximum immersion capacity: 7 m
• DN 32

Instructions for use

• Do not lower the pump using the power cable but attach a rope to the pump handle;
• If you are dealing with very dirty water, it is advisable to position the pump at a certain height from the bottom to avoid blocking the inlet pipe;
• It is advisable to install the electric pump ensuring that it is completely submerged and that the float switch is free to move;
• The maximum immersion depth is limited by the length of the power cable;
• If the thermal protection trips, the pump will automatically restart after the motor has cooled down.
