Leo EKS750PD
Electric Pump
Drainage

Leo EKS750PD - Drainage Electric Pump

The LEO EKS750PD drainage electric pump is a lightweight and easy-to-handle solution, designed to ensure reliability and optimum drainage performance. It is equipped with a double infiltration protection system , which combines a mechanical seal and a gasket , thus ensuring maximum safety. It is built in accordance with WEE, ROHS and PAHS regulations , ensuring compliance with safety standards and attention to environmental sustainability.

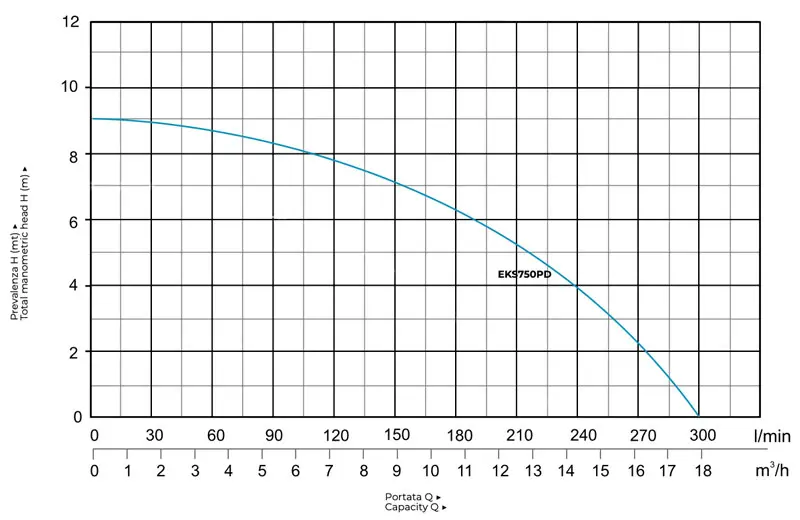

This 230V single-phase pump has a power of 1 HP (0.75 kW) and a current consumption of 3.25 A. It can be immersed to a maximum depth of 7 m , reaching a maximum head of 9 m and a maximum flow rate of 18 m³/h . EKS750PD is suitable for use with liquids up to a temperature of 35°C and in environments with temperatures of up to 40°C.

Equipped with a 1 1/4'' outlet , this pump can handle solid particles with a diameter of up to 35 mm . Thanks to the foldable foot , it can switch from use with loaded water to that with clear water, offering versatility and convenience of use.

Characteristics

• Single phase motor 230V
• Power 1 HP 0.75 kW
• Max immersion depth 7 m
• Max head 9 m
• Max flow rate 18 m³/h
• Max liquid temperature 35°C
• Max ambient temperature 40°C
• Max particles manageable 35 mm
• 1 1/4'' output
• Folding foot for dirty and clear water
• Protection class IPX8

Usage limits

• Maximum liquid temperature: 35 °C
• Maximum immersion capacity: 7 m

Instructions for use

• Do not lower the pump using the power cable but attach a rope to the pump handle;
• If you are dealing with very dirty water, it is advisable to position the pump at a certain height from the bottom to avoid blocking the inlet pipe;
• It is advisable to install the electric pump ensuring that it is completely submerged and that the float switch is free to move;
• The maximum immersion depth is limited by the length of the power cable;
• If the thermal protection trips, the pump will automatically restart after the motor has cooled down.
