Leo LSW
Electric Waste Water Pump
Max 20 mm
230V - 0.25÷2 HP
200÷533 L - Prevalence 9÷19 m
Ø G1"1/2÷G2
€161.00
€131.97 tax excl.
Warranty 2 years
Shipped on Pallet
Leo LSW - Submersible Electric Pump for Dirty Water Ø 30 mm
Leo LSW is a submersible electric pump that can be used for the drainage of waste water , with solid bodies up to a diameter of 20 mm non-filamentous or residues derived from paper
Leo LSW is particularly suitable for the disposal of groundwater and sewage , stagnant surface water, sewage and particularly loaded water , flooded environments such as cellars, garages or car wash areas.
Typical installations are:
• Waste water on washing systems.
• Rainwater reclamation.
• Control and revitalization of groundwater.
• Wastewater in the civil and industrial sectors.
Technical specifications
The Leo LSW submersible electric pump can be submerged to a maximum depth of 5 m , at a liquid temperature of +40% and a liquid pH value of 4-10 .
The Leo pump is equipped with a copper winding motor with built-in thermal protection , stainless steel shaft, insulation class B and protection class IP68 .
Available models
The following Leo LSW submersible electric pump models can be selected from the drop-down menu:
- LSWm30A cod. 1050130
- LSWm75A cod. 1050175
- LSWm100A cod. 1050100
- LSWm150A cod. 1050150
- LSWm200A cod. 1050200

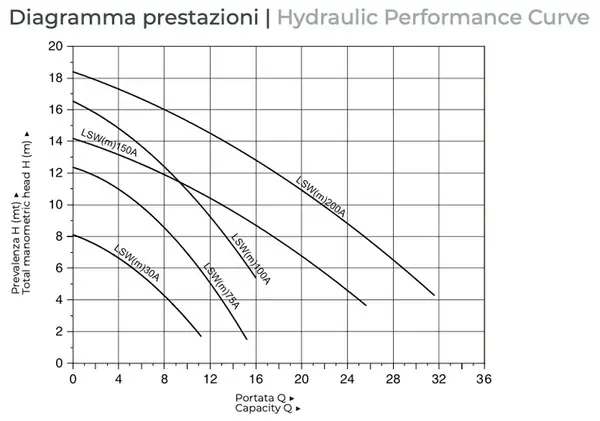

Performance

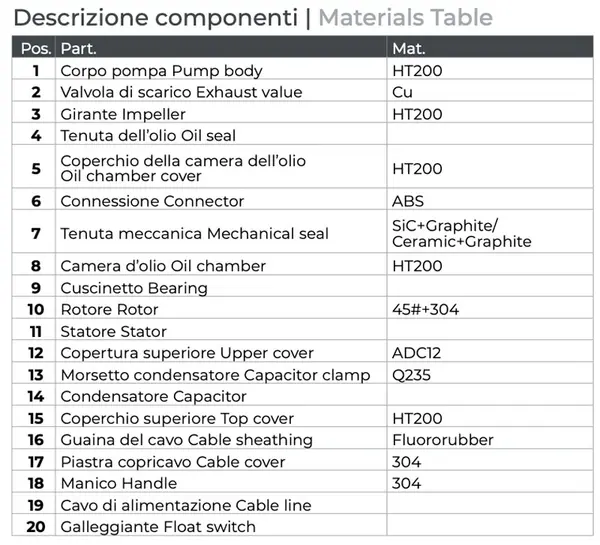

Materials used
Characteristics
- Submersible pump for dirty water
- Maximum diameter of solid bodies 30 mm
- For groundwater/sewage disposal
- For flooded environments
- Max immersion 5 m
- Copper motor winding
- Insulation class B

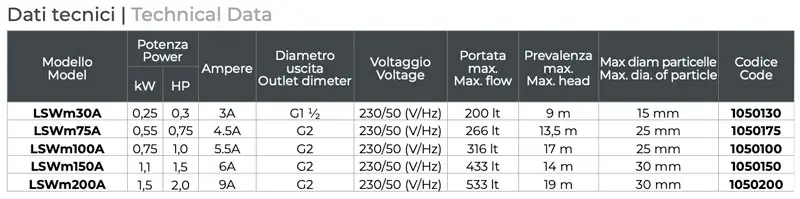

Dati Tecnici
| Modello | LSWm30A | LSWm75A | LSWm100A | LSWm150A | LSWm200A |
| Codice | 1050130 | 1050175 | 1050100 | 1050150 | 1050200 |
| Alimentazione | 230V | 230V | 230V | 230V | 230V |
| Potenza nominale | 0,25 kW - 0,3 HP | 0,55 kW - 0,75 HP | 0,75 kW - 1,0 HP | 1,1 kW - 1,5 HP | 1,5 kW - 2,0 HP |
| Portata | 200 L | 266 L | 316 L | 433 L | 533 L |
| Prevalenza | 9 m | 13,5 m | 17 m | 14 m | 19 m |
| Diametro max Particelle | Ø 15 mm | Ø 25 mm | Ø 25 mm | Ø 30 mm | Ø 30 mm |
| Max Temperatura Liquido | +40% | +40% | +40% | +40% | +40% |
| Max Capacità Immersione | 5 m | 5 m | 5 m | 5 m | 5 m |
| Classe isolamento | B | B | B | B | B |
| Grado protezione | IP68 | IP68 | IP68 | IP68 | IP68 |
| Diametro Tubi | G1’’ 1/2 | G2’’ | G2’’ | G2’’ | G2’’ |

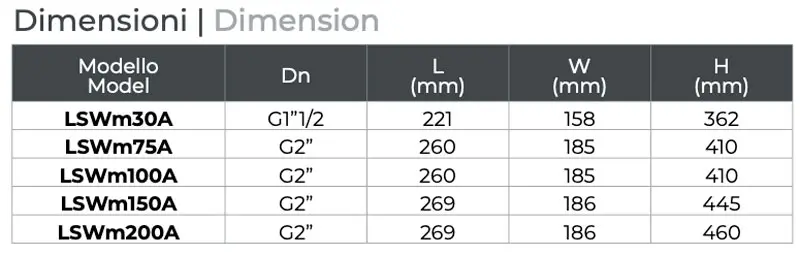

| Dimensioni | 22,1 x 15,8 x 36,2 cm | 26 x 18,5 x 41 cm | 26 x 18,5 x 41 cm | 26,9 x 18,6 x 44,5 cm | 26,9 x 18,6 x 46 cm |
| Peso | 10 kg | 14 kg | 15 kg | 18 kg | 19,5 kg |
Dati Tecnici
| Modello | LSWm30A | LSWm75A | LSWm100A | LSWm150A | LSWm200A |
| Codice | 1050130 | 1050175 | 1050100 | 1050150 | 1050200 |
| Alimentazione | 230V | 230V | 230V | 230V | 230V |
| Potenza nominale | 0,25 kW - 0,3 HP | 0,55 kW - 0,75 HP | 0,75 kW - 1,0 HP | 1,1 kW - 1,5 HP | 1,5 kW - 2,0 HP |
| Portata | 200 L | 266 L | 316 L | 433 L | 533 L |
| Prevalenza | 9 m | 13,5 m | 17 m | 14 m | 19 m |
| Diametro max Particelle | Ø 15 mm | Ø 25 mm | Ø 25 mm | Ø 30 mm | Ø 30 mm |
| Max Temperatura Liquido | +40% | +40% | +40% | +40% | +40% |
| Max Capacità Immersione | 5 m | 5 m | 5 m | 5 m | 5 m |
| Classe isolamento | B | B | B | B | B |
| Grado protezione | IP68 | IP68 | IP68 | IP68 | IP68 |
| Diametro Tubi | G1’’ 1/2 | G2’’ | G2’’ | G2’’ | G2’’ |
| Dimensioni | 22,1 x 15,8 x 36,2 cm | 26 x 18,5 x 41 cm | 26 x 18,5 x 41 cm | 26,9 x 18,6 x 44,5 cm | 26,9 x 18,6 x 46 cm |
| Peso | 10 kg | 14 kg | 15 kg | 18 kg | 19,5 kg |
