Leo QDX
Submersible electric pump
for drainage
MPN: 10QDX1.5
230V - 1 HP
175 L/min - Head 32.5 m
Ø 1"
€175.00
€143.44 tax excl.
Warranty 2 years
Shipped on Pallet

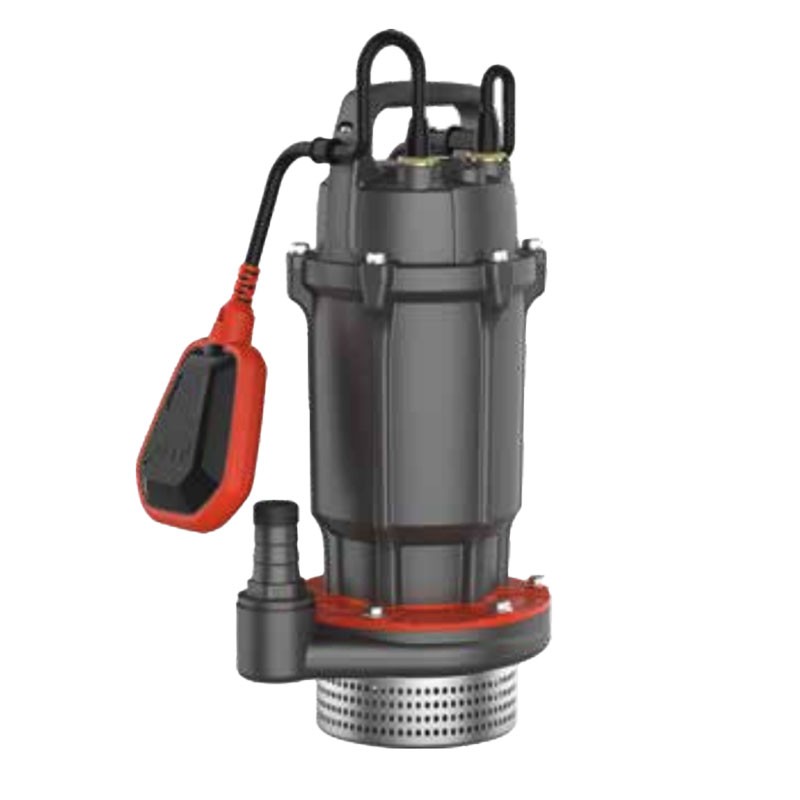

Leo QDX Submersible Electric Pump
Leo QDX is a quality submersible electric drainage pump .
These electric pumps produced by Leo are built with top-quality materials and are suitable for irrigation, civil, industrial and agricultural drainage, as well as domestic water pumping and supply.
The LEO QDX pump features a stainless steel shaft and a motor with thermal protection built into the winding. The body is made of cast iron with anti-corrosion treatment.
Characteristics
- Single-phase motor
- Built-in thermal protection
- Stainless steel shaft
- Cast iron pump body with anti-corrosion treatment.
- Insulation class B
- Protection class IP68
Limits of use
- Maximum liquid temperature: 40°C
- Maximum immersion capacity: 5 m
- DN 25
- Liquid pH value: 6.5-8
Instructions for use
- Do not lower the pump using the power cable but attach a rope to the pump handle;
- If you are dealing with very dirty water, it is advisable to position the pump at a certain height from the bottom to avoid blocking the inlet pipe;
- It is advisable to install the electric pump ensuring that it is completely submerged and that the float switch is free to move;
- The maximum immersion depth is limited by the length of the power cable;
- If the thermal protection trips, the pump will automatically restart after the motor has cooled down.

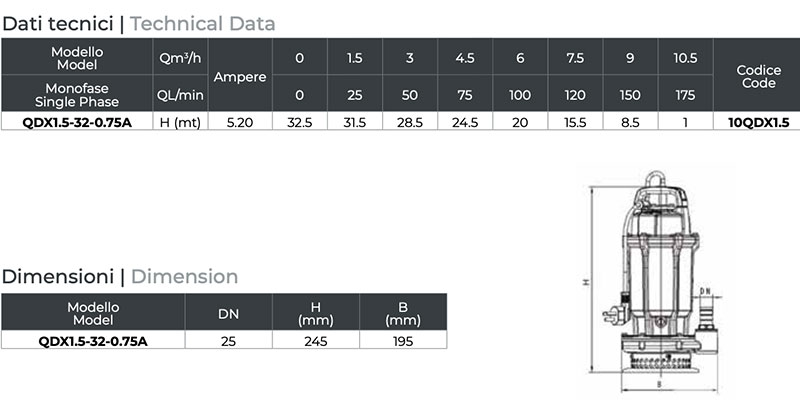

Technical Data
| Power Supply | 230V |
| Rated power | 0.75 kW - 1 HP |
| Suction Diameter | Ø1'' |
| Delivery Diameter | Ø1'' |
| Prevalence | 32.5 m |
| Max Liquid Temp. | 40°C |
| Protection Class - Insulation | IP68 - Class B |
| Pump Body Material | Cast iron |
| Dimensions | 19 x 25 x 19 cm |
| Weight | 16 kg |
Technical Data
| Power Supply | 230V |
| Rated power | 0.75 kW - 1 HP |
| Suction Diameter | Ø1'' |
| Delivery Diameter | Ø1'' |
| Prevalence | 32.5 m |
| Max Liquid Temp. | 40°C |
| Protection Class - Insulation | IP68 - Class B |
| Pump Body Material | Cast iron |
| Dimensions | 19 x 25 x 19 cm |
| Weight | 16 kg |
