Leo 65SWU
Electric Drainage Pump for Grey Water
Max 50 mm
230V- 2 HP
400 L/m - Head 12.5 m
Ø 2” 1/2
€512.00
€419.67 tax excl.
Warranty 2 years
Shipped on Pallet

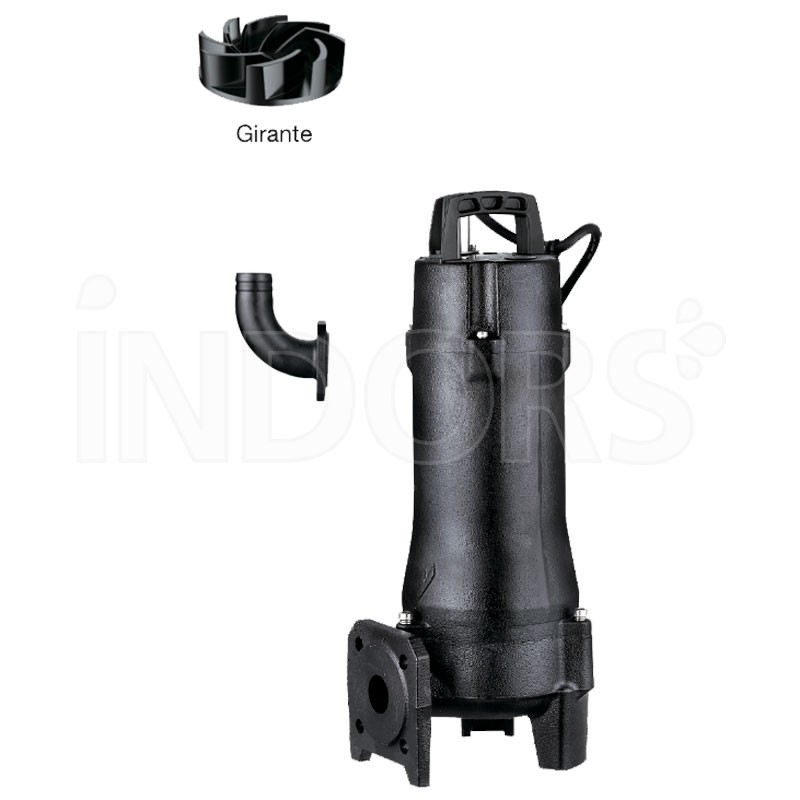

Leo 65SWU drainage electric pump
The Leo 65SWU pump is a cast iron pump for drainage of grey water, with solids up to 50 mm in diameter.
APPLICATION
Robustly constructed submersible pumps, made of cast iron, suitable for conveying wastewater and wastewater with suspended solids, specifically:
• Industrial waste water with suspended filiform components .
• Waste water from civil systems classified as grey.
• Black water from third chambers of septic tanks
• Waste water in industrial plants in the food, textile and pharmaceutical sectors.
• Chemically (pH 4-10) or mechanically aggressive wastewater (presence of significant quantities of sand)
CHARACTERISTICS
• VORTEX type impeller mounted in a rear position to allow the passage of large solid bodies (50mm)
• Stainless steel shaft with two mechanical seals mounted: silicon-silicon on the side
water, silicon-graphite inside an oil chamber, on the electric motor side.
• Flanged delivery mouth according to UNI EN 1092-1, DN65-PN6 for direct outlet or for installation with coupling foot
• Electric cable included (10 metres)
Characteristics
- Single-phase 2-pole motor
- Three-phase motor 2 or 3 poles
- Insulation Class F
- Protection Class IPX8
- Semi-open VORTEX impeller
- Double mechanical seal
- 65mm outlet
Limits of use
- Maximum temperature of pumped liquid: 0-40 °C
- Maximum diving depth 5 m

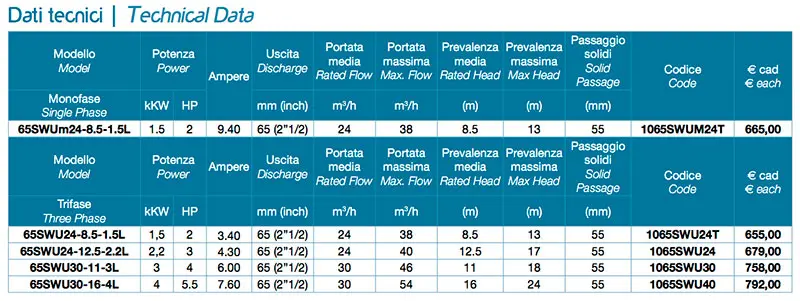

Technical Data
| Model | 65SWUm24-8.5-1.5L | 65SWU24-8.5-1.5L | 65SWU24-12.5-2.2L | 65SWU30-11-3L | 65SWU30-16-4L |
| Code | 1065SWUM24T | 1065SWU24T | 1065SWU24 | 1065SWU30 | 1065SWU40 |
| Power Supply | 230 V | 230 V | 230 V | 230 V | 230 V |
| Flow rate | 400 L/m | 400 L/m | 400 L/m | 400 L/m | 400 L/m |
| Nominal Power | 1.5 kW - 2 HP | 1.5 kW - 2 HP | 2.2 kW - 3 HP | 3 kW - 4 HP | 4 kW - 5.5 HP |
| Diameter D - D1 - D2 | 65 - 130 - 14 mm | 65 - 130 - 14 mm | 65 - 130 - 14 mm | 65 - 130 - 14 mm | 65 - 130 - 14 mm |
| Prevalence | 13 m | 13 m | 17 m | 18 m | 24 m |
| Protection Class - Insulation | IP X8 - Class F | IP X8 - Class F | IP X8 - Class F | IP X8 - Class F | IP X8 - Class F |
| Pump Body Material | Cast iron | Cast iron | Cast iron | Cast iron | Cast iron |
| Dimensions | 26 x 21 x 63 cm | 26 x 21 x 63 cm | 26 x 21 x 59 cm | 26 x 21 x 62 cm | 26 x 21 x 62 cm |
Technical Data
| Model | 65SWUm24-8.5-1.5L | 65SWU24-8.5-1.5L | 65SWU24-12.5-2.2L | 65SWU30-11-3L | 65SWU30-16-4L |
| Code | 1065SWUM24T | 1065SWU24T | 1065SWU24 | 1065SWU30 | 1065SWU40 |
| Power Supply | 230 V | 230 V | 230 V | 230 V | 230 V |
| Flow rate | 400 L/m | 400 L/m | 400 L/m | 400 L/m | 400 L/m |
| Nominal Power | 1.5 kW - 2 HP | 1.5 kW - 2 HP | 2.2 kW - 3 HP | 3 kW - 4 HP | 4 kW - 5.5 HP |
| Diameter D - D1 - D2 | 65 - 130 - 14 mm | 65 - 130 - 14 mm | 65 - 130 - 14 mm | 65 - 130 - 14 mm | 65 - 130 - 14 mm |
| Prevalence | 13 m | 13 m | 17 m | 18 m | 24 m |
| Protection Class - Insulation | IP X8 - Class F | IP X8 - Class F | IP X8 - Class F | IP X8 - Class F | IP X8 - Class F |
| Pump Body Material | Cast iron | Cast iron | Cast iron | Cast iron | Cast iron |
| Dimensions | 26 x 21 x 63 cm | 26 x 21 x 63 cm | 26 x 21 x 59 cm | 26 x 21 x 62 cm | 26 x 21 x 62 cm |
