Speroni SK 70-80-85
Construction Site Drainage Electric Pumps
from 5 to 15 HP
400V - 5÷15 HP
50÷1400 L/min - Head 6÷48.5 m
Ø 3÷4’’
€1,120.00
€918.03 tax excl.
Warranty 2 years
Shipped on Pallet

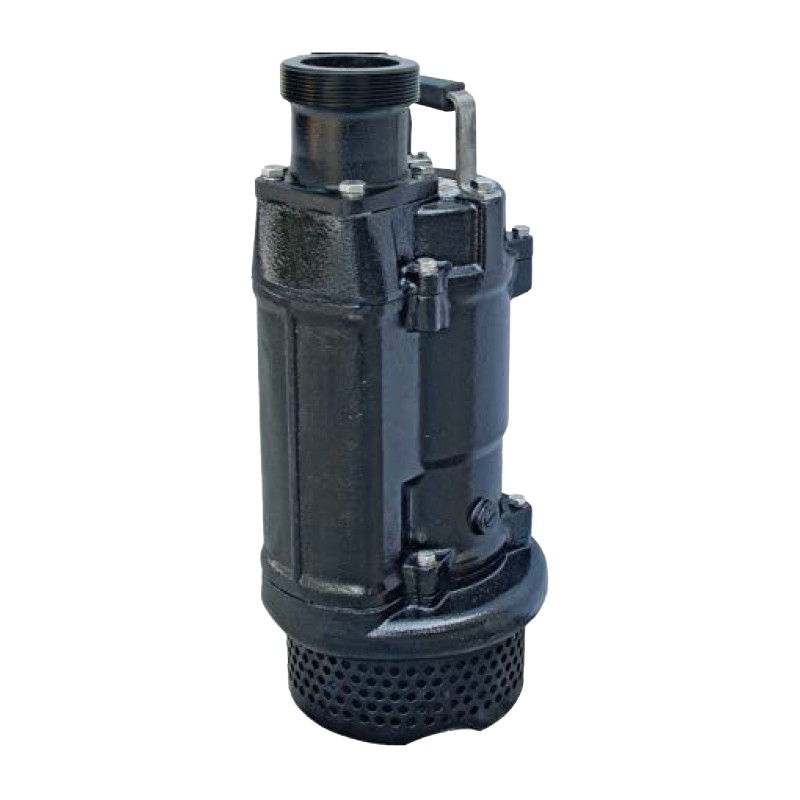

Speroni SK 70-80-85 - Submersible Pumps for Construction Site Drainage and Civil Engineering
The Speroni SK 70-80-85 submersible electric pumps are designed for professional drainage of construction sites, civil engineering works, and applications where water needs to be moved continuously, reliably, and efficiently. Made with robust components and selected materials, these submersible drainage pumps combine high performance, resistance, and durability. The cast iron construction of the pump body and motor cover ensures solidity, while the high-chrome alloy impeller is designed to handle demanding working conditions. The top discharge system facilitates motor cooling during operation. The double mechanical seal in silicon carbide, installed in an oil bath, further contributes to reliability and protection.
Available Models
Selectable from the dropdown menu:
- SK 70 - 3.7
- SK 70 - 5.5
- SK 80 - 7.5
- SK 85 - 11
Operating Limits
- Minimum suction level 150 mm (70-3.7; 70-5.5)
- Minimum suction level 190 mm (80-7.5; 85-11)
- Liquid temperature up to 35°C (for domestic use according to EN 60335-2-41)
- Max. liquid temperature: 50°C (for other uses)
- Maximum immersion depth 10 m (for domestic use according to EN 60335-2-41)
- Maximum immersion depth 25 m (with cable of adequate length)
- Continuous duty with pump fully submerged
Motor
- 2-pole induction electric motor
- Three-phase 400V-50Hz
- Class F insulation
- IP 68 protection
Materials
- Pump Body: Cast Iron
- Motor Cover: Cast Iron
- Impeller: Chrome Alloy
- Motor Shaft: Stainless Steel
- Mechanical Seal: Silicon Carbide in oil bath
Functional Specifications
SK 70-80-85 Submersible Electric Pumps for Construction Site Drainage
The Speroni SK 70-80-85 are cast iron submersible electric pumps developed for construction site drainage. The range is designed for professional applications requiring continuous operation and efficiency. The pumps can be used for general drainage, offering a robust solution for water evacuation.
Robust Construction and Durable Materials
The structure of the Speroni SK 70-80-85 submersible electric pumps is made with materials chosen to withstand demanding working conditions. The pump body and motor cover are made of cast iron, while the impeller is made of a high-chrome alloy. The stainless steel motor shaft contributes to the overall resistance. This configuration makes the pumps suitable for professional drainage on construction sites.
Top Discharge and Motor Cooling
A characteristic feature of the SK 70-80-85 series is the top discharge, designed to promote effective motor cooling during operation. The pumps are also equipped with a double mechanical seal in silicon carbide, installed in an oil bath. This solution offers high guarantees of durability and helps protect internal components.
Three-Phase Motor and Continuous Duty
The Speroni SK 70-80-85 electric pumps use a 2-pole induction electric motor, three-phase 400V-50Hz, with Class F insulation and IP68 protection rating. The design allows for continuous duty with the pump fully submerged. The maximum immersion depth reaches 25 meters with an adequately long cable.
Features
- Cast iron submersible electric pump
- Drainage for civil engineering
- Top discharge for improved motor cooling
- Three-phase motor from 5 to 15 HP
- Robust cast iron structure
- Chrome alloy impeller
- Double mechanical seal for long-lasting guarantee
- Immersion up to 25 m max
- High technical quality
Technical Data
| Code | 101295350 | 101295360 | 101295400 | 101295410 |
| Model | SK 70-3.7 | SK 70-5.5 | SK 80-7.5 | SK 85-11 |
| Power Supply | 400 V | 400 V | 400 V | 400 V |
| Rated Power | 5 HP - 3.7 kW | 7.5 HP - 5.5 kW | 10 HP - 7.5 kW | 15 HP - 11 kW |
| Discharge Diameter | 3'' | 3'' | 4'' | 4'' |

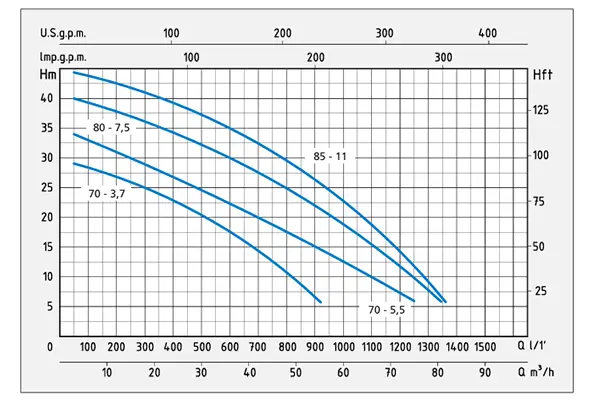

| Head | from 6 to 29 m | from 6 to 34 m | from 3 to 40 m | from 5 to 48.5 m |
| Liquid Flow Rate | 50÷916 L/min | 50÷1250 L/min | 50÷1400 L/min | 50÷1400 L/min |
| Protection Class - Insulation | IP 68 - F | IP 68 - F | IP 68 - F | IP 68 - F |
| Min Suction Level | 150 mm | 150 mm | 190 mm | 190 mm |
| Max Liquid Temp. Domestic Use | 35 °C | 35 °C | 35 °C | 35 °C |
| Max Liquid Temp. Professional Use | 50 °C | 50 °C | 50 °C | 50 °C |
| Max. Immersion Depth Domestic Use | 10 m | 10 m | 10 m | 10 m |
| Max. Immersion Depth | 25 m (with cable) | 25 m (with cable) | 25 m (with cable) | 25 m (with cable) |
| Pump Body Material | Cast Iron | Cast Iron | Cast Iron | Cast Iron |
| Impeller | Chrome Alloy | Chrome Alloy | Chrome Alloy | Chrome Alloy |
| Mechanical Seal | Silicon Carbide in Oil Bath | Silicon Carbide in Oil Bath | Silicon Carbide in Oil Bath | Silicon Carbide in Oil Bath |
| Dimensions | 28.5 x 62.9 x 25.2 cm | 28.5 x 62.9 x 25.2 cm | 33 x 67.6 x 35 cm | 37.3 x 69.5 x 35 cm |
| Weight | 68 kg | 84 kg | 116 kg | 148 kg |
