Leo OMNIA 2D T 400V
Electronic Control Panel for 2 Three-Phase Pumps 0.75-10 HP

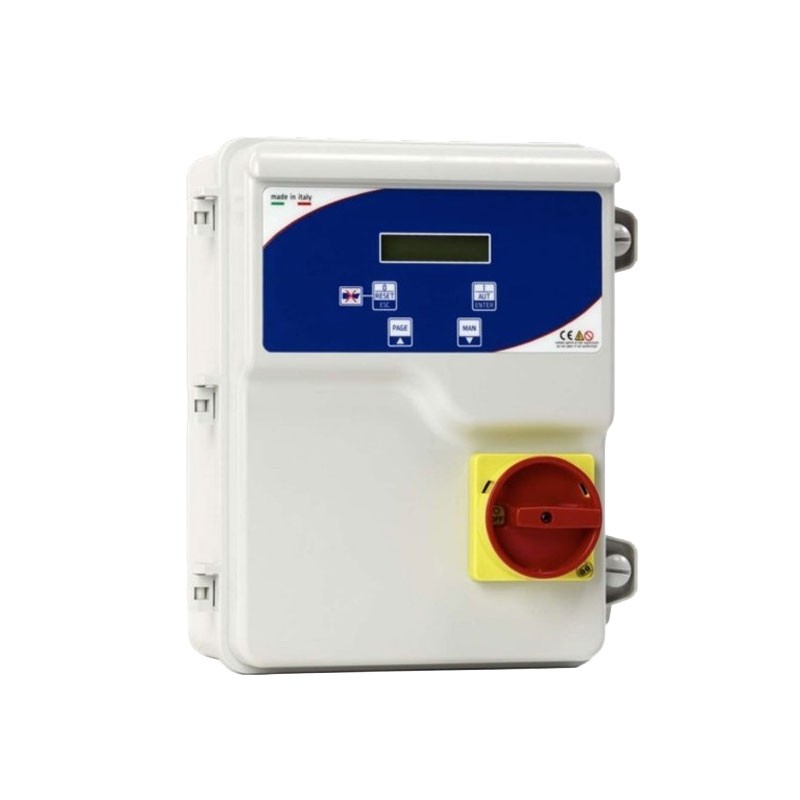

Leo OMNIA 2D T 400V - Electronic Control Panel for 2 Three-Phase Pumps 0.75-10 HP

The Leo Omnia 2D T 400V is an electronic control panel for two three-phase pumps with direct start, designed for wastewater and clear water lifting and for pressurization. It operates with a 400 V three-phase power supply, covering power ratings from 0.55 to 7.5 kW (0.75-10 HP) and automatically learning motor data.

A single control panel for electric pumps replaces multiple dedicated solutions: it manages float switches, pressure switches, and probes. The compact box is easy to install. The motor protection system and alternation functions make the control panel suitable for civil, industrial, and agricultural systems.

Functional Specifications

2-Pump Alternation and Peak Management

The control panel automatically manages the alternation between the two pumps and their simultaneous operation during peak times, optimizing motor wear and system performance. It is also programmable for both pressurization and lifting applications, with configurable start and stop delays to suit specific installation needs.

Intelligent Motor Protections and Electrical Safety

The control panel performs automatic motor data learning, calibrating protection thresholds automatically without manual settings. Included are overcurrent and undercurrent protections with a dedicated alarm, protection against voltage surges, phase sequence error control, and dry-running protection by reading minimum amperage and cosphi. There is also protection against motor klixon trips, with a specific thermal sensor for submersible pumps.

Advanced Functions and Connectivity

In addition to automatic motor data learning, the control panel features an automatic motor test function and programmed maintenance, useful for reducing unexpected system downtime. BMS readiness allows for remote connection for system monitoring, while the advanced Multitank program enables independent management of two pumps installed in two separate tanks.

Inputs and Operating Modes

The control panel accepts commands via float switches, pressure switches, or level probes, with a dedicated input for probe level control and four inputs for float switches, plus two inputs for motor thermal sensors. The green light indicates automatic pump operation, while the blue light indicates mains power; the STOP and reset button allows for immediate manual intervention in case of operational necessity.

Outputs

• Audible alarm
• Visual alarm
• Dry contacts for alarms (N.O.)
• 12 V d.c. alarm output
• Voltage-free contact alarm output

Inputs

• 1 x Level control with probes
• 4 x Float switches
• 2 x Motor thermal sensor

Possible Configurations

Below are the typical configurations for wiring probes/float switches/sensors according to the application

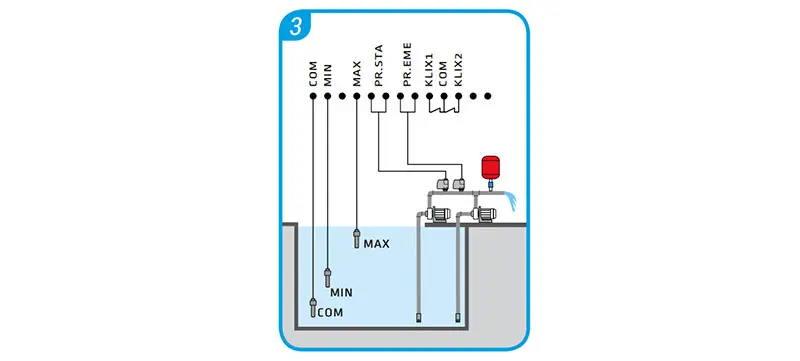

Connection for pressure booster application with level probe and pressure switches

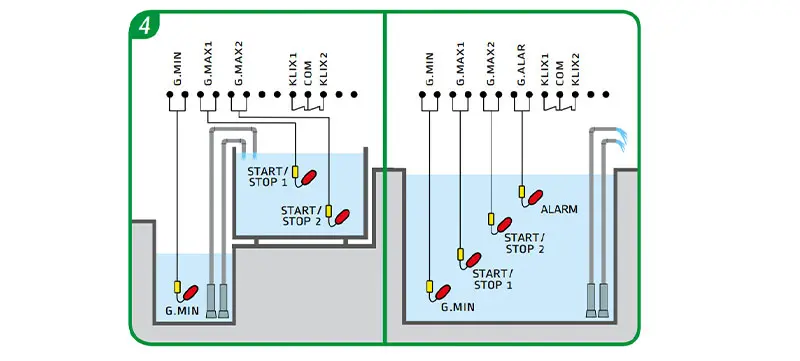

Connection for clear water management: tank filling and lifting with float switches

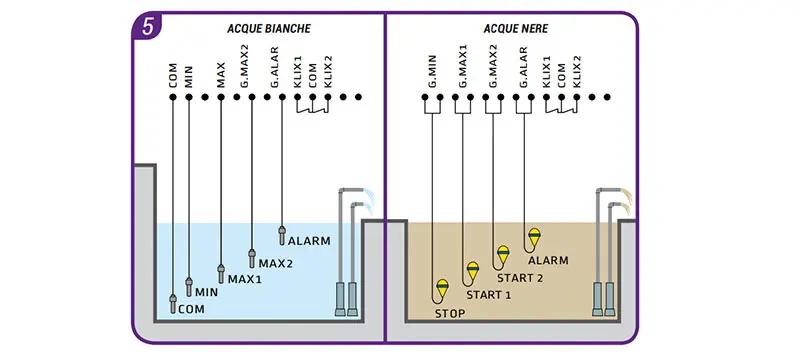

Connection for wastewater management: clear and dark water with dedicated float switches

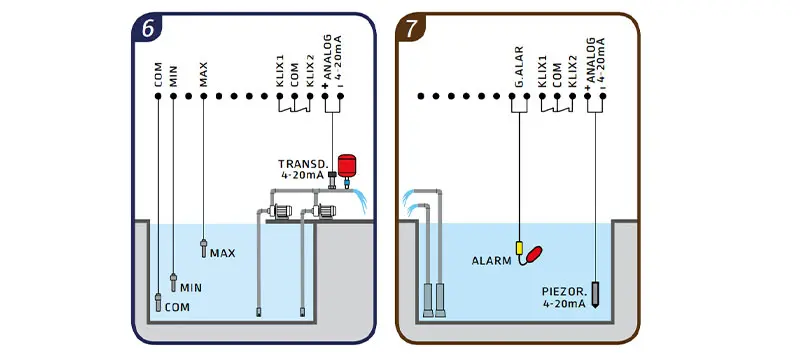

Connection with 4-20mA analog signal: pressure control in bar and level in meters

Features

• Direct start for two three-phase pumps
• Automatic motor data learning
• Compatible with clear and wastewater
• Management of float switches, pressure switches, and level probes
• BMS readiness for remote connection
• Programmable start and stop delay
• Over/under current, voltage surge, and phase sequence protection
• Dry-running protection with cosphi reading
• Motor klixon protection with thermal sensor for submersible pumps
• IP55 plastic box, temperature -5/+50 °C
• Managed power 0.55-7.5 kW (0.75-10 HP)
• Current 2x16 A
• Pump alternation and simultaneous operation during peak times
• Programmable for pressurization and lifting
• Input for 4-20 mA command (controls the pump with a piezoresistive sensor or pressure transducer)
• Automatic motor test
• Programmed maintenance
• Multitank: 2 independent pumps in 2 separate tanks
