Speroni SXS 1500-VA
1.4 kW Submersible Electric Pump
MPN: 101297590
230V - 1.5 HP
450 L/min - Head 10 m
Ø 2”
€425.00
€348.36 tax excl.

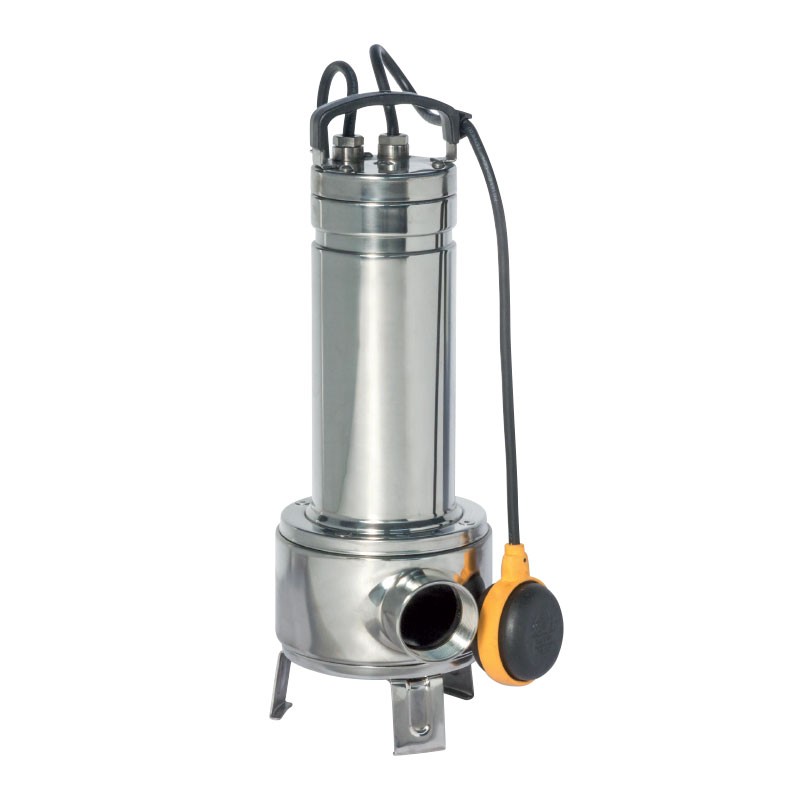

Speroni SXS 1500-VA - Stainless Steel Submersible Drainage Pump 1.4 kW
The Speroni SXS-VA stainless steel submersible electric pump is designed for draining and pumping wastewater and sewage , ideal for domestic and civil applications. Equipped with an AISI 304 stainless steel impeller, it guarantees robustness and long life. It can operate up to an immersion depth of 5 m and tolerates liquids with temperatures up to 35°C .
Usage Limits
- Liquid temperature up to 35°C - for domestic use according to EN 60335-2-41
- Max. liquid temperature: 35°C (for other uses)
- Maximum diving depth 5 meters
- Solid passage Ø 50 mm
- Minimum suction level 120 mm
- Continuous service
Motor
- Single-phase 230V-50Hz (with float)
- Mechanical seal in oil bath
- Permanent capacitor inserted
- Class F insulation
- IP 68 protection
Materials
- Handle: AISI 304 Stainless Steel + Nylon
- Motor case: AISI 304 stainless steel
- Pump body: AISI 304 stainless steel
- Suction flange: AISI 304 stainless steel
- Crankshaft: AISI 304 stainless steel
- Mechanical seal: Silicon/Silicon/NBR
Characteristics
- Stainless steel submersible electric pump
- Single-phase
- For drainage and pumping of waste water
- Power consumption 1.6 kW
- Head 4-10 m
- IP 68 protection
- Class F insulation

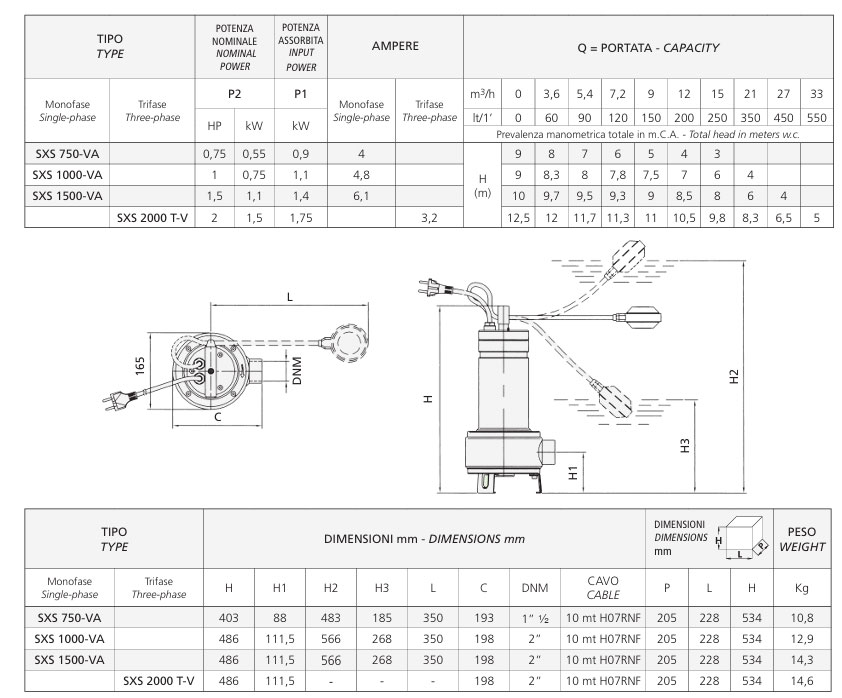

Technical Data
| Model | SXS 1500-VA |
| Code | 101297590 |
| Power Supply | 230 V |
| Power Absorbed | 1400 W |
| Maximum flow rate | 450 L/min |
| Diving Depth | 5 m |
| Min/max prevalence | 4 ÷ 10 m |
| Delivery Diameter | 2'' |
| Insulation class | F |
| Pump Body Material | Stainless Steel |
| Max Temp. Liquid Domestic Use | 35°C |
| Max Liquid Temp. Other Uses | 35°C |
| Protection level | IP 68 |
| Cable | 10 m |
| Dimensions | 16.5 x 48.5 x 19.8 cm |
| Weight | 14.6 kg |

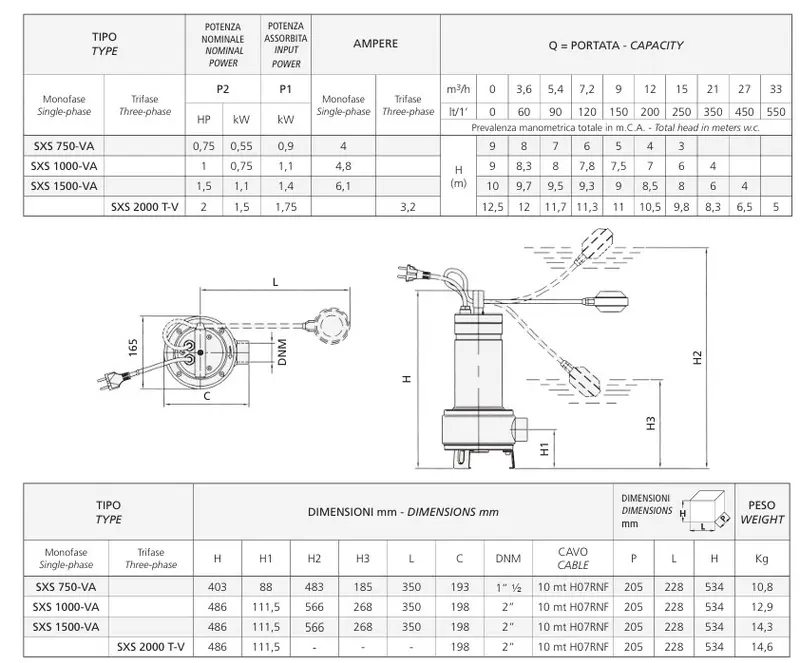

Technical Data
| Model | SXS 1500-VA |
| Code | 101297590 |
| Power Supply | 230 V |
| Power Absorbed | 1400 W |
| Maximum flow rate | 450 L/min |
| Diving Depth | 5 m |
| Min/max prevalence | 4 ÷ 10 m |
| Delivery Diameter | 2'' |
| Insulation class | F |
| Pump Body Material | Stainless Steel |
| Max Temp. Liquid Domestic Use | 35°C |
| Max Liquid Temp. Other Uses | 35°C |
| Protection level | IP 68 |
| Cable | 10 m |
| Dimensions | 16.5 x 48.5 x 19.8 cm |
| Weight | 14.6 kg |
