BIEMMEDUE EC 22
Diesel heater
€1,100.00
€901.64 tax excl.
| or in 3 rates from 366.67 € with |  |
library_add more options
MPN: 02EC101
Diesel - 23.4 kW
Thermostat preparation
107.5 x 44 x 61.5 cm - 550 m³/h
Warranty 2 years
14 days to change your mind
Shipped on Pallet
Biemmedue EC 22 - Diesel heater
Biemmedue EC 22 diesel heater with stainless steel burner integrated and separated from the fan, with indirect combustion, uses a heat exchanger that allows the evacuation of fumes through a chimney that can be connected to the outside; it can therefore be placed inside closed rooms.
The Biemmedue EC 22 diesel heater is suitable for indirect heating of tents, construction sites, warehouses and sheds .
If stocks of the Biemmedue EC 22 model in red color run out, the OKLIMA SE 80 branded model in yellow color will automatically be sent, which has the same characteristics and same equipment.

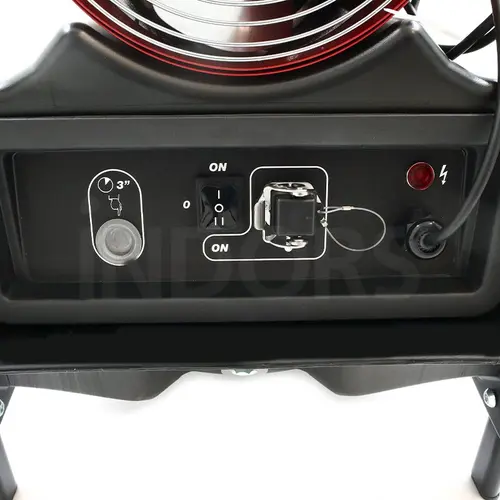

Commands

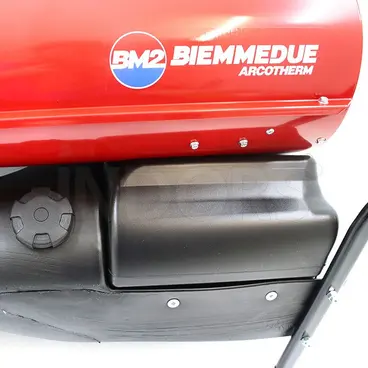

Fairing and Wheels Detail

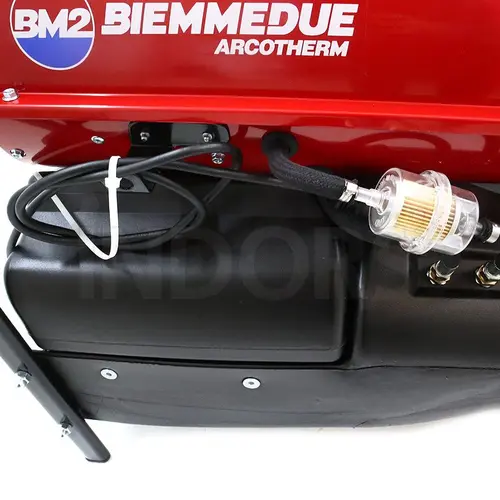

Filter detail
Characteristics
- Automatic diesel burner
- Socket for connecting thermostat, humidistat or timer
- Electrical power cable 1.5 m
- Combustion chamber in AISI 430 stainless steel with 3 smoke passes
- Timed post-ventilation for cooling the combustion chamber
- Electronic flame control
- Overheating thermostat
- Diesel fuel supply hoses in hydrocarbon-resistant rubber with reinforcing textile mesh covering
- Shock-proof polyethylene tank
- Bayonet tank closure cap
- Fuel tank drain plug
- Electrical control panel
Fields of application
Standard equipment
- Booklet
- Components
- Wheels and handle
Technical data
| Power Supply | 230V |
| Nominal power | 23.4 kW, 20,108 kcal/h - 80,032 BTU/h |
| Electric power | 0.3 kW |
| Thermal Power Yield | 19.6 kW |
| Thermostat | Thermostat preparation |
| Air flow | 550 m³/h |
| Fuel | Kerosene / Diesel |
| Tank capacity | 42 L |
| Fuel consumption | 1.85 kg/h |
| Yield | 84% |
| Thermal jumping | 95°C |
| ø chimney | 120 mm |
| ø 1-2 way air outlet sheath | na |
| Dimensions | 108 x 44 x 62 cm |
| Weight | 40 kg |
Technical data
| Power Supply | 230V |
| Nominal power | 23.4 kW, 20,108 kcal/h - 80,032 BTU/h |
| Electric power | 0.3 kW |
| Thermal Power Yield | 19.6 kW |
| Thermostat | Thermostat preparation |
| Air flow | 550 m³/h |
| Fuel | Kerosene / Diesel |
| Tank capacity | 42 L |
| Fuel consumption | 1.85 kg/h |
| Yield | 84% |
| Thermal jumping | 95°C |
| ø chimney | 120 mm |
| ø 1-2 way air outlet sheath | na |
| Dimensions | 108 x 44 x 62 cm |
| Weight | 40 kg |
