Biemmedue OKLIMA SE 80
Diesel Hot Air Generator
MPN: 02SE101
Diesel - 23.4 kW
Thermostat Provision
107.5 x 44 x 61.5 cm - 550 m³/h
€1,110.00
€909.84 tax excl.
Warranty 2
years
Shipped on Pallet
Biemmedue Oklima SE 80 - Diesel Hot Air Generator
Oklima SE 80 diesel hot air generator with integrated stainless steel combustion chamber separate from the fan, indirect combustion, uses a heat exchanger that allows the evacuation of fumes through a chimney that can be connected to the outside; it can therefore be placed inside closed rooms.
The Oklima SE 80 diesel hot air generator is suitable for indirect heating of tents, construction sites, warehouses and sheds .
If the yellow Oklima SE 80 model is out of stock, the red Biemmedue EC 22 model will automatically be sent, which has the same features and the same equipment.
Oklima heaters are produced by the renowned company Biemmedue, Made in Italy, guaranteeing quality and reliability for comfortable and efficient environments.
Characteristics
- Automatic diesel burner
- Socket for connecting thermostat, humidistat or timer
- Power cable 1.5 m
- AISI 430 stainless steel combustion chamber with 3 smoke passes
- Timed post-ventilation of combustion chamber cooling
- Electronic flame control
- Overheat Thermostat
- Diesel fuel supply pipes made of hydrocarbon-resistant rubber with textile reinforcing mesh covering
- Anti-shock polyethylene tank
- Bayonet tank cap
- Fuel tank drain plug
- Electric control panel
Oklima SE 80 Control Panel
- Reset button with lock (red), operation (green) and stand-by (orange) indicator lights
- Three-position control switch:
- position 0 for stationary machine
- position 1 for machine operating “continuously”
- position 2 for machine working with room thermostat, humidistat, timer
- Socket for room thermostat, humidistat, timer
- Voltage presence warning light
- Line cable output
- Electric cable support

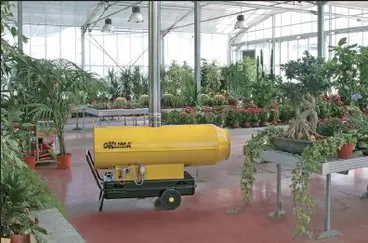

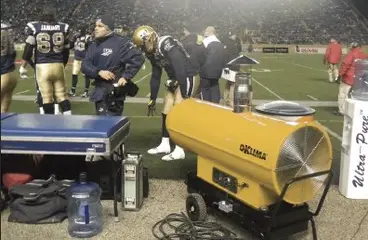

Oklima SE80 Application Examples
Technical Data
| Power Supply | 230 V |
| Nominal Power | 23.4 kW, 20,108 Kcal/h - 80,032 BTU/h |
| Thermal Power - Yield | 19.6 kW - 16,891 Kcal/h - 67,227 BTU/h |
| Electric Power | 0.3 kW |
| Yield | 84% |
| Thermostat | Thermostat Provision |
| Air Flow | 550 m³/h |
| Thermal Jump at 20°C | 95°C |
| Fuel | Kerosene / Diesel |
| Tank Capacity | 42 L |
| Fuel Consumption | 1.85 Kg/h |
| fireplace | Ø 120 mm |
| Dimensions | 107.5 x 44 x 61.5 cm |
| Weight | 40 kg |
