Biemmedue OKLIMA SE 200
Diesel Hot Air Generator
€2,049.00
€1,679.51 tax excl.
library_add more options
MPN: 02SE103
Diesel - 58.6 kW
Thermostat preparation
143.5 x 55.5 x 94 cm - 2500 m³/h
Warranty 2 years
14 days to change your mind
Shipped on Pallet
Biemmedue Oklima SE 200 - Diesel Hot Air Generator
Oklima SE 200 diesel hot air generator with stainless steel burner integrated and separated from the fan, with indirect combustion, uses a heat exchanger that allows the evacuation of fumes through a chimney that can be connected to the outside; it can therefore be placed inside closed rooms.
The Oklima SE 200 diesel hot air generator is suitable for the indirect heating of tents, construction sites, warehouses and sheds .
If the Oklima SE 200 model in yellow is out of stock, the Biemmedue EC 55 branded model in red will automatically be sent, which has the same characteristics and same equipment.
Oklima heaters are produced by the renowned Biemmedue company, Made in Italy, guaranteeing quality and reliability for comfortable and efficient environments.
Electrical cabinet
- Reset button with lock (red), operation (green) and stand-by (orange) indicator
- Three-position control switch:
- position 0 for machine stopped
- position 1 for machine operating in "continuous" mode
- position 2 for machine operating with room thermostat, humidistat, timer
- Socket for room thermostat, humidistat, timer
- Voltage presence indicator light
- Line cable output
- Electric cable support
Characteristics
- Automatic diesel burner
- Socket for connecting thermostat, humidistat or timer
- Electrical power cable 1.5 m
- Combustion chamber in AISI 430 stainless steel with 4 smoke passes
- Timed post-ventilation for cooling the combustion chamber
- Electronic flame control
- Overheating thermostat
- Fuel supply hoses in hydrocarbon-resistant rubber with reinforcing metal mesh covering
- Steel tank
- Bayonet tank closure cap
- Fuel tank drain plug
- Electrical control panel

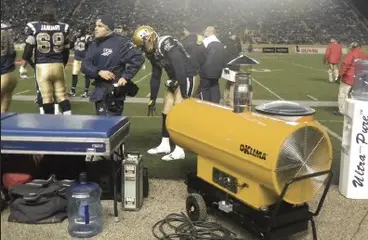

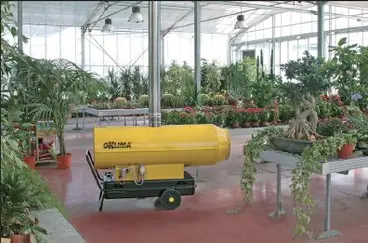

Fields of application
Technical data
Power supply | 230V |
Nominal power | 58.6 kW - 50,434 Kcal/h |
Electric power | 850W |
Power Yield | 52.5 kW |
Thermostat | Thermostat preparation |
Air flow | 2500 m³/h |
Fuel | Kerosene / Diesel |
Tank capacity | 65 L |
Diesel consumption | 4.64 kg/h |
Yield | 89.5% |
Temperature difference at 20°C | 66°C |
ø Fireplace | 150 mm |
ø 1 - 2 way air outlet sheath | 350 - 300 mm |
Dimensions | 143.5 x 55.5 x 94 cm |
Weight | 81 kg |
Technical data
Power supply | 230V |
Nominal power | 58.6 kW - 50,434 Kcal/h |
Electric power | 850W |
Power Yield | 52.5 kW |
Thermostat | Thermostat preparation |
Air flow | 2500 m³/h |
Fuel | Kerosene / Diesel |
Tank capacity | 65 L |
Diesel consumption | 4.64 kg/h |
Yield | 89.5% |
Temperature difference at 20°C | 66°C |
ø Fireplace | 150 mm |
ø 1 - 2 way air outlet sheath | 350 - 300 mm |
Dimensions | 143.5 x 55.5 x 94 cm |
Weight | 81 kg |
On Request Accessories
Biemmedue Room Thermostat
€53.00
