BIEMMEDUE EC 55
Diesel Hot Air Cannon
MPN: 02EC103
Diesel - 58.6 kW
Thermostat predisposition
143.5 x 55.5 x 94 cm - 2500 m³/h
Warranty 2 years
14 days to change your mind
Shipped on Pallet

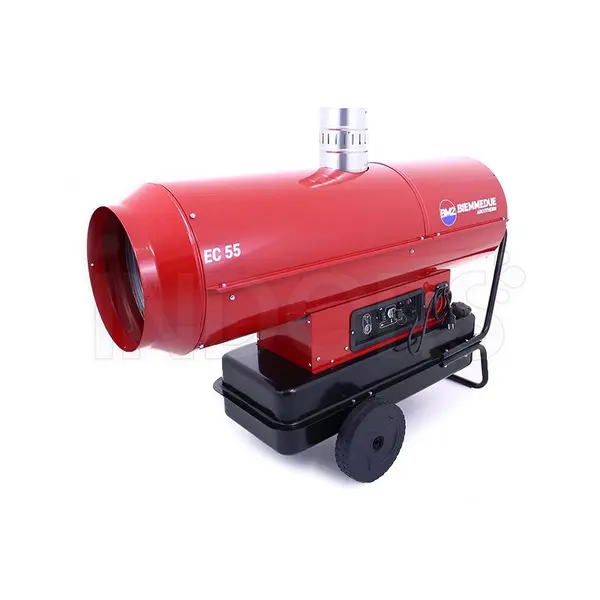

Biemmedue EC 55 - Diesel Hot Air Cannon
Biemmedue EC 55 Diesel Hot Air Cannon with stainless steel burner integrated and separated from the fan, with indirect combustion, uses a heat exchanger that allows the evacuation of fumes through a chimney that can be connected to the outside; it can therefore be placed inside closed rooms.

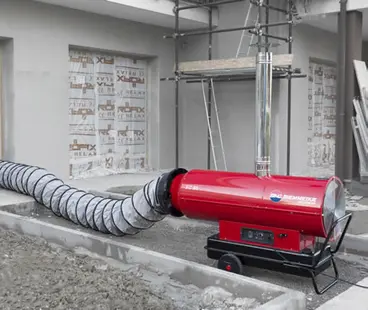

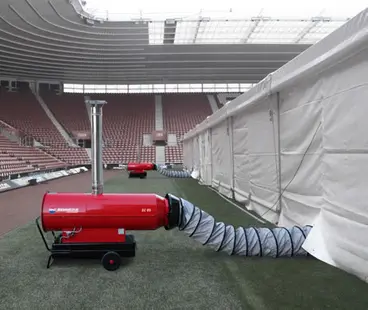

The Biemmedue EC 55 Diesel Hot Air Cannon is suitable for indirect heating of tents, construction sites, warehouses and sheds .
In case of stock exhaustion of the Biemmedue EC 55 model in red, the OKLIMA SE 200 branded model in yellow will automatically be sent, which has the same characteristics and the same equipment.
Characteristics
- Automatic diesel burner
- Socket for thermostat, humidistat or timer connection
- Power supply cable 1.5 m
- Combustion chamber in AISI 430 stainless steel with 4 smoke passes
- Timed post-ventilation for cooling the combustion chamber
- Electronic flame control
- Overheating thermostat
- Fuel supply hoses in hydrocarbon-resistant rubber with reinforcing metal mesh lining
- Steel tank
- Bayonet tank closure cap
- Fuel tank drain plug
- Electrical control panel
Fields of application
Technical data
| Power Supply | 230V |
| Nominal power | 52.5 ÷ 58.6 kW |
| Electric power | 850W |
| Air Flow | 2500 m³/h |
| Fuel | Kerosene / Diesel |
| Tank capacity | 65 L |
| Fuel consumption | 4,64 Kg/h |
| Yield | 89.5% |
| Thermal jump at 20°C | 66°C |
| ø fireplace | 150mm |
| ø air outlet sheath 1 - 2 ways | 350 - 300mm |
| Dimensions | 143.5 x 55.5 x 94cm |
| Weight | 81kg |
Technical data
| Power Supply | 230V |
| Nominal power | 52.5 ÷ 58.6 kW |
| Electric power | 850W |
| Air Flow | 2500 m³/h |
| Fuel | Kerosene / Diesel |
| Tank capacity | 65 L |
| Fuel consumption | 4,64 Kg/h |
| Yield | 89.5% |
| Thermal jump at 20°C | 66°C |
| ø fireplace | 150mm |
| ø air outlet sheath 1 - 2 ways | 350 - 300mm |
| Dimensions | 143.5 x 55.5 x 94cm |
| Weight | 81kg |
