Speroni RGXM 5
Horizontal Electric Pumps
Multi-impeller 230V
230 V - 0.75÷1.3 HP
120 L/min - Prevalence 12÷49 m
Ø 1" 1/4 - 1" '
€255.00
€209.02 tax excl.

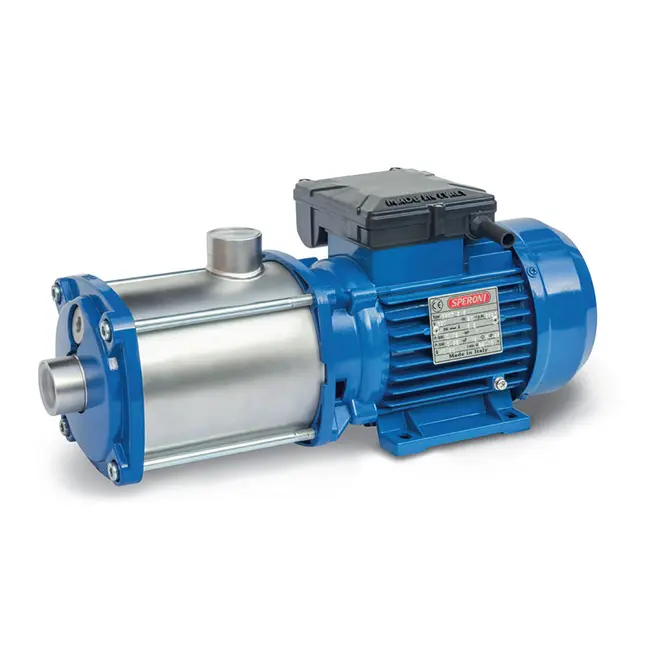

Speroni RGXM 5 - Horizontal Axis Multi-impeller Electric Pumps 230V
The Speroni RGXM 5 horizontal multi-impeller electric pumps offer a high flow of high pressure water up to 120 L/min , while maintaining low energy consumption. Thanks to their silence, these multi-impeller pumps are perfect for domestic uses, small sprinkler irrigation systems, car washes and autoclaves.
Equipped with a single-phase 230V 2-pole induction electric motor , with class F insulation and IP 55 protection, they can reach a maximum flow rate of 120 L/min with a head between 12 and 49 m .
The durability of these Speroni pumps is guaranteed by the resistant materials used in their construction. The body and cover are made of cast iron , while the impellers, diffusers, pump jacket and motor shaft are made of 304 stainless steel . Mechanical seals are made of ceramic, graphite and viton.
Models available
Speroni's RGXM 5 series includes several models, each with different specifications and features to meet user needs.
Selectable from the drop-down menu:
- RGXM 5-3 - Single phase
- RGXM 5-4 - Single phase
- RGXM 5-5 - Single phase
The nominal power of these electric pumps ranges from 0.75 kW to 1.5 kW , depending on the model selected.
Limitations of use
- Liquid temperature up to 35°C (for domestic use according to EN 60335-2-41)
- Max. temperature liquid: 90°C (for other uses)
- Ambient temperature up to 40°C
- Manometric suction height up to 7 m.
- Continuous service
Motor
- Single phase 230V-50Hz
- 2-pole induction electric motor (n = 2850 min-1)
- Class F insulation
- IP 55 protection
Materials
- Suction body: Cast iron
- Delivery body: Cast iron
- Impeller: AISI 304 stainless steel
- Pump jacket: AISI 304 stainless steel
- Upper cover: AISI 304 stainless steel
- Lower cover: AISI 304 stainless steel
- Crankshaft: AISI 304 stainless steel
- Mechanical seals: Ceramic/Graphite/Viton

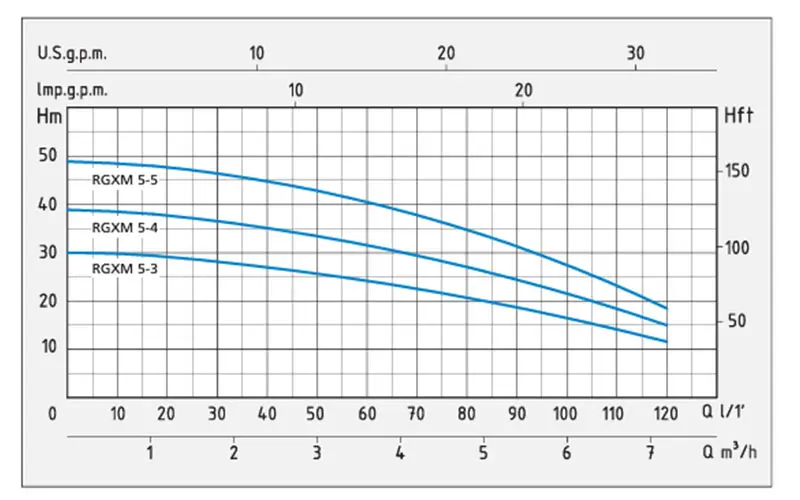

Hydraulic curve

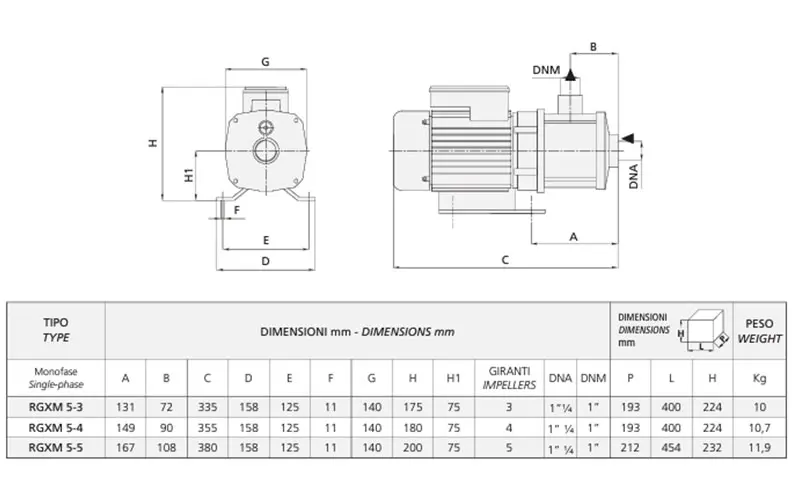

Product Dimensions

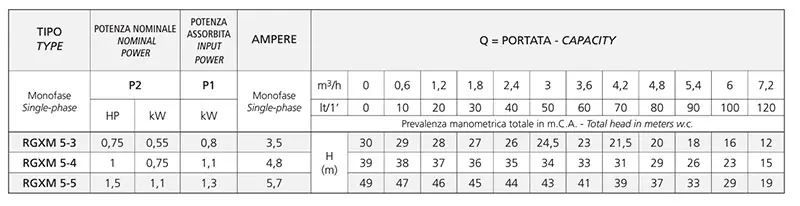

Technical data
| Model | RGXM 5-3 | RGXM 5-4 | RGXM 5-5 |
| Power Supply | 230V | 230V | 230V |
| Nominal power | 0.75 HP - 0.55 kW | 1 HP - 0.75 kW | 1 HP - 1.1 kW |
| Absorbed power | 0.8 kW | 1.1 kW | 1.3 kW |
| Prevalence | from 12 to 30 m | from 15 to 39 m | from 19 to 49 m |
| Liquid flow rate | 0÷120 L/min | 0÷120 L/min | 0÷120 L/min |
| Protection Class - Insulation | IP 55 - F | IP 55 - F | IP 55 - F |
| Dimensions with packaging | 40 x 22.4 x 19.3 cm | 40 x 22.4 x 19.3 cm | 45.4 x 23.2 x 21.2 cm |
| Weight | 10kg | 10.7kg | 11.9kg |
