Speroni RVM 40 RVM 50 RVM 60
Multistage electric pump
230 V - 2÷3 HP
10÷160 L/min - Prevalence 15÷73 m
Ø 1'' 1/4 - 1''
€537.00
€440.16 tax excl.
Warranty 2
years
Shipped on Pallet

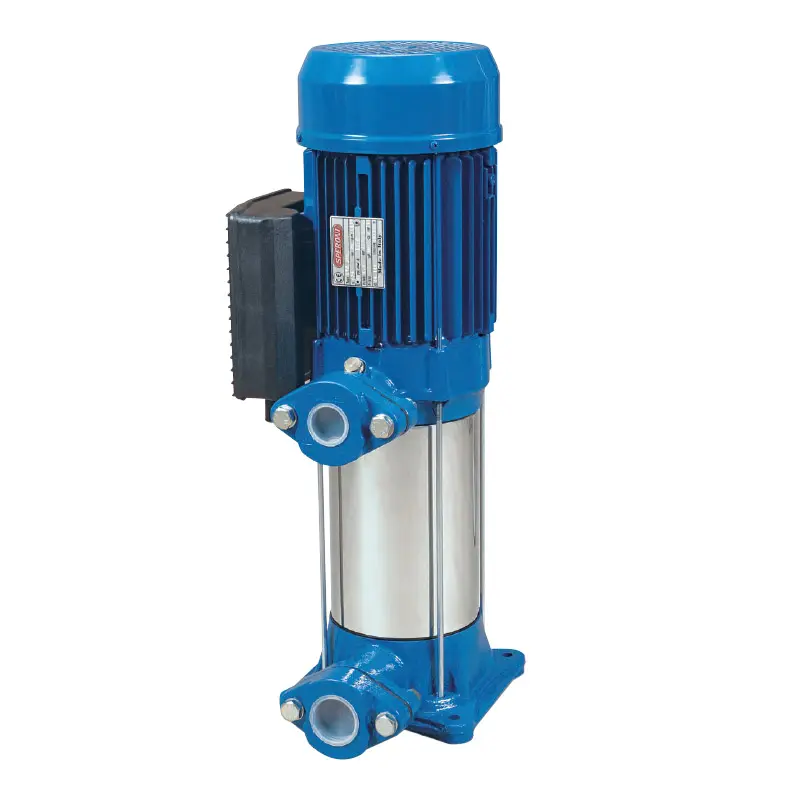

Speroni RVM - Multistage Centrifugal Electric Pump
The Speroni RVM 40, RVM 50 and RVM 60 vertical axis multistage centrifugal electric pumps are an excellent solution for various pumping needs, thanks to their ability to generate considerable pressure and, at the same time, a high water flow rate , all with reduced energy consumption. These Speroni electric pumps represent a versatile choice, suitable for both civil and industrial applications in a wide range of sectors.
The Speroni RVM centrifugal multistage electric pumps are versatile electric pumps , suitable for a variety of uses, including washing systems , irrigation , agriculture , sports facilities and domestic use . Their flexibility also makes them perfect for application in pressurization systems, where it is essential to ensure effective water distribution.
Limitations of use
- Liquid temperature up to 35°C (for domestic use according to EN 60335-2-41)
- Max liquid temperature: 35°C (for other uses)
- Ambient temperature up to 40°C
- Manometric suction height up to 7 m
- Continuous service
- Minimum efficiency index (BEP) MEI ≥ 0.4
Motor
- Single phase 230V-50Hz
- Three-phase 230/400V-50Hz
- 2-pole induction electric motor (n = 2850 min-1)
- Class F insulation
- IP 55 protection
Protection
- Pump body: Cast iron
- Engine support: Cast iron
- Impeller: Noryl
- Diffuser: Noryl
- Pump sleeve AISI 304 stainless steel
- Drive shaft AISI 304 stainless steel
- Silicon/Silicon/NBR mechanical seals
Models available
Selectable from the drop-down menu:
- RVM 40 - code 102195010
- RVM 50 - code 102195020
- RVM 60 - code 102195030
Hydraulic curve
Product Dimensions
Technical data
| Model | RVM 40 | RVM 50 | RVM 60 |
| Code | 102195010 | 102195020 | 102195030 |
| Power Supply | 230V | 230V | 230V |
| Nominal power | 2 HP - 1.5 kW | 2.5 HP - 1.85 kW | 3 HP - 2.2 kW |
| Absorbed power | 2 kW | 2.2 kW | 2.7 kW |
| Suction diameter | 1'' 1/4 | 1'' 1/4 | 1'' 1/4 |
| Delivery diameter | 1'' | 1'' | 1'' |
| Prevalence | from 15 to 50 m | from 18 to 60 m | from 22 to 73 m |
| Liquid flow rate | 10÷160 L/min | 10÷160 L/min | 10÷160 L/min |
| Protection Class - Insulation | IP 55 - F | IP 55 - F | IP 55 - F |
| Impellers | 4 | 5 | 6 |
| Dimensions | 52 x 24 x 18 cm | 55 x 27 x 18 cm | 58 x 30 x 18 cm |
| Weight | 27.3kg | 28.4kg | 31.6kg |
