Speroni 2CM 25/160 BC
Single-phase twin-impeller electric pump

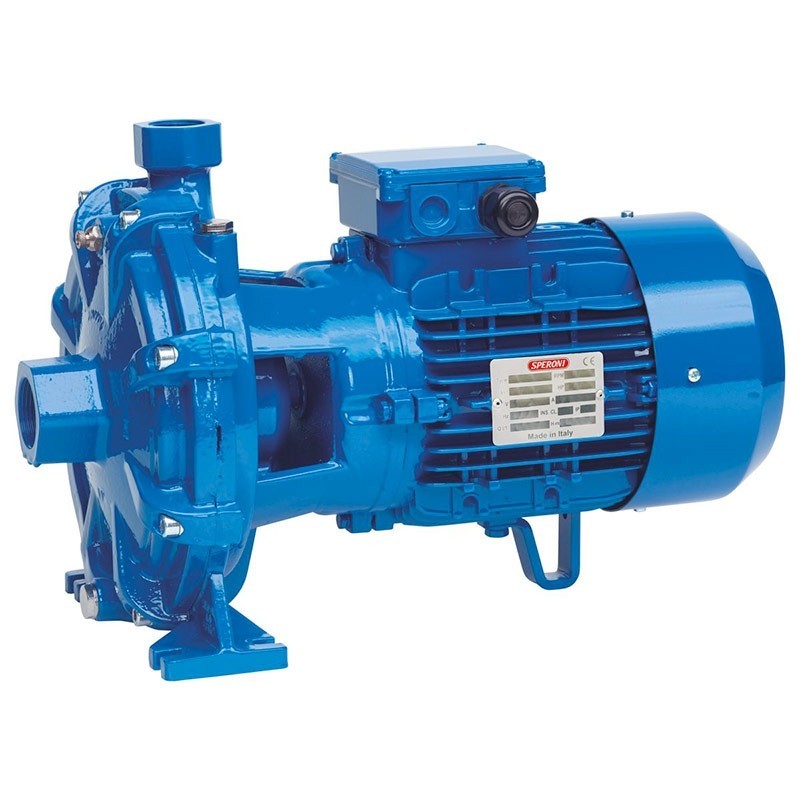

Speroni 2CM 25/160 BC - Twin Impeller Centrifugal Pump

The Speroni 2CM / C 25/160 BC is a twin impeller centrifugal electric pump designed for lifting clean water or other liquids moderately charged with impurities but not aggressive towards the materials of which the pump is made.

These pumps can be single-phase or three-phase selectable from the drop-down menu above and are characterized by the use of two opposing impellers which allow much higher heads than single-impeller models.
The 2CM electric pumps are suitable for civil and industrial systems, for the distribution of water by means of an autoclave and for sprinkler irrigation both in agriculture and in private gardens.

Download the Technical Sheet

Limits of use

• Liquid temperature limit up to 35 ° C for domestic use (EN 60335-2-41)
• Liquid temperature limit up to 90 ° C for other uses
• Ambient temperature up to 40 ° C
• Monometric suction height up to 7 m
• Continuous service

Materials

• Pump course: Cast iron
• Motor support: Cast iron
• Impellers: Brass
• Motor shaft: AISI 304 stainless steel
• Mechanical seals: Ceramic / Graphite / NBR

Engines

• Class F insulation
• IP 55 protection
• Single phase 230V-50Hz ≤ 7.5 kW
• Three-phase 230 / 400V-50Hz> 7.5 kW
• 2-pole induction electric motor (n = 2850 min-1)
• Minimum efficiency index (BEP) MEI ≥ 0.4

Hydraulic curve

Model details available

Product Dimensions
