Speroni CAM 40.22
Surface Pressurization Unit
MPN: 101155560
€215.00
€176.23 tax excl.
Warranty 2 years
14 days to change your mind
Shipped on Pallet

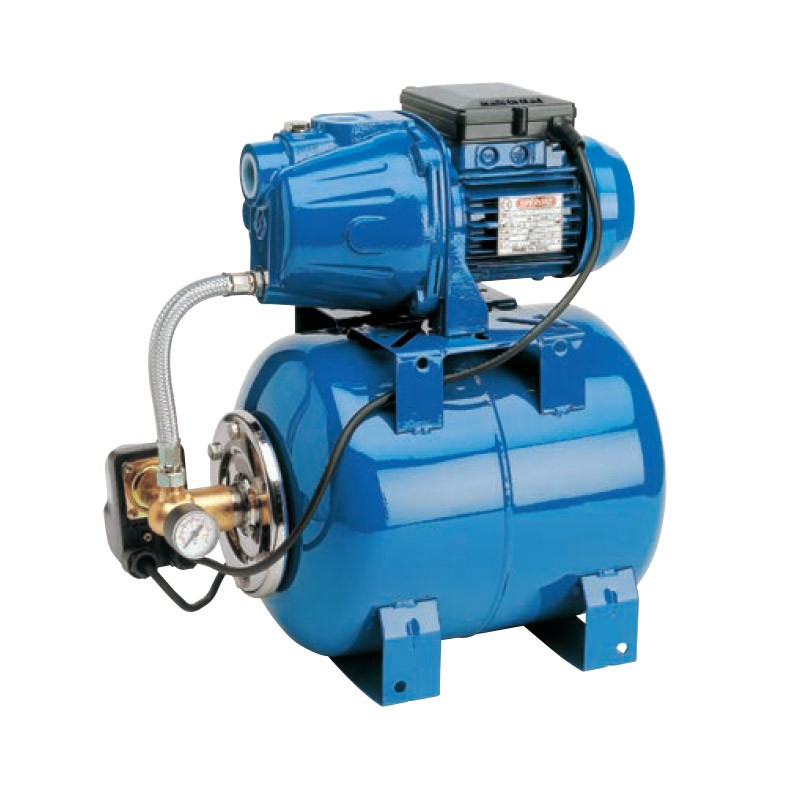

Speroni CAM 40.22 - Surface Pressurization Unit
Speroni CAM 40.22 is an automatic pressurization unit , made with a self- priming jet electric pump . Very reliable and silent , they are particularly suitable for increasing the pressure available from a distribution network, for water supply with suction from wells and for domestic water systems .
Functional specifications
Limits of use
- Liquid temperature up to 35 ° C (domestic use according to EN 60335-2-41)
- Max liquid temperature 35 ° C (for other uses)
- Ambient temperature up to 40 ° C
- Manometric suction height up to 8 m
- Continuous service
Motor
- 2-pole induction electric motor
- Class F insulation
- IP 44 protection
Materials
- Butyl membrane tank
- Flexible hose connected
- Pre-calibrated pressure switch 1.4 ÷ 2.8 bar with cables
- Pressure gauge
- Brass fitting
Features
- Pressurization group
- with self-priming jet pump
- To increase water pressure
- For suction from wells and domestic water systems
Technical data
| Power Supply | 230V |
| Nominal power | 0.8 HP - 0.6 kW |
| Suction diameter | 1 '' |
| Delivery diameter | 1 '' |
| Prevalence | from 19 to 38 m |
| Liquid flow rate | 50 L / min |
| Max Temp. Liquid | 35 ° C |
| Max. Ambient Temp | 40 ° C |
| Dimensions | 29 x 50 x 52 cm |
| Weight | 15.6 kg |
Technical data
| Power Supply | 230V |
| Nominal power | 0.8 HP - 0.6 kW |
| Suction diameter | 1 '' |
| Delivery diameter | 1 '' |
| Prevalence | from 19 to 38 m |
| Liquid flow rate | 50 L / min |
| Max Temp. Liquid | 35 ° C |
| Max. Ambient Temp | 40 ° C |
| Dimensions | 29 x 50 x 52 cm |
| Weight | 15.6 kg |
