Speroni SA 316
0.8 HP to 5.5 HP Three-Phase Submersible Pumps
400 V - 0.8 to 5.5 HP
200 to 900 L/min - Head 9 to 21 m
DNM 2'' / DNM 3''
€1,110.00
€909.84 tax excl.

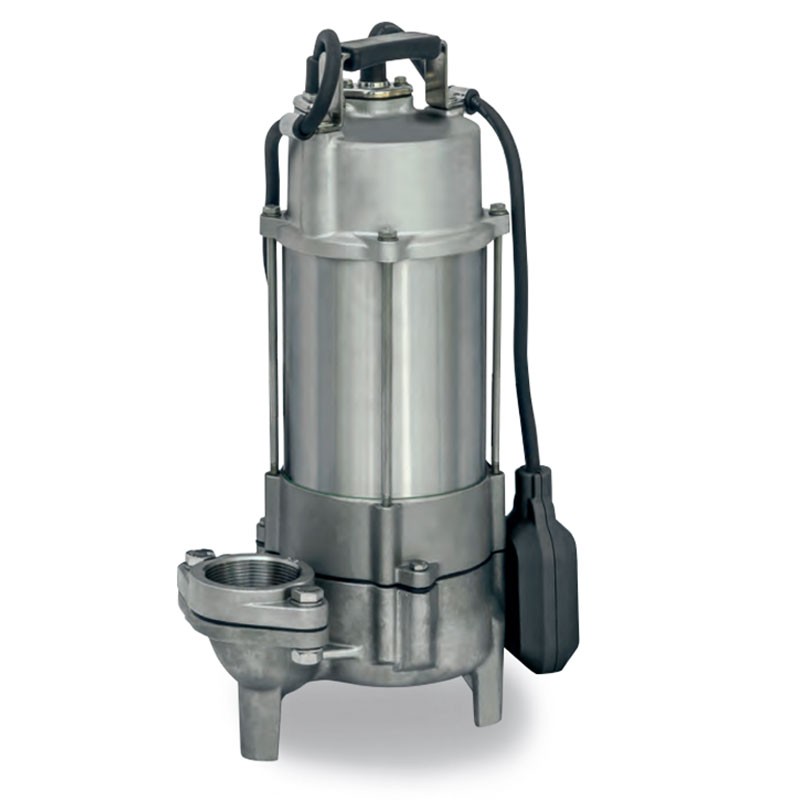

Speroni SA 316 Three-Phase Submersible Pumps from 0.8 HP to 5.5 HP for Dirty Water
Speroni SA 316 Drainage Submersible Pumps in versions from 0.8 to 5.5 HP in AISI 316 Stainless Steel. Suitable for handling heavily loaded sewage and biological liquids, activated sludge, and for unfiltered liquids from grids, for discharges of civil and industrial origin, and for particularly aggressive, saline, and corrosive liquids.
These Drainage Pumps feature a Three-Phase 400 V Motor with Class F Insulation and IP 68 Protection.
Available Models
- SA 316-80 - 0.80 HP - 0.6 kW - Three-Phase 400V
- SA 316-130 - 1.30 HP - 1.0 kW - Three-Phase 400V
- SA 316-200 - 2.00 HP - 1.5 kW - Three-Phase 400V
- SA 316-300 - 3.00 HP - 2.2 kW - Three-Phase 400V
- SA 316-550 - 5.50 HP - 4.0 kW - Three-Phase 400V
Single-phase 230V models from 0.80 HP to 1.30 HP are also available on our website.
Operating Limits
- Liquid temperature up to 35°C (for domestic use according to EN 60335-2-41)
- Max. liquid temperature 40°C (for other uses)
- Maximum immersion depth 10 m (for domestic use according to EN 60335-2-41)
- Maximum immersion depth 20 m with cable of adequate length
- Minimum suction level 150 mm
- Continuous service
Motor
- Single-phase 230V-50Hz (with float switch)
- Class F Insulation
- IP 68 Protection
- Thermal protector
Materials
- Motor body AISI 316 Stainless Steel
- Pump body AISI 316 Stainless Steel
- Top cover AISI 316 Stainless Steel
- Impeller AISI 316 Stainless Steel
- Motor cylinder AISI 316 Stainless Steel
- Motor shaft AISI 316 Stainless Steel
- Double mechanical seal in oil chamber Ceramic/Graphite/Viton/Silicon/Silicon/Viton

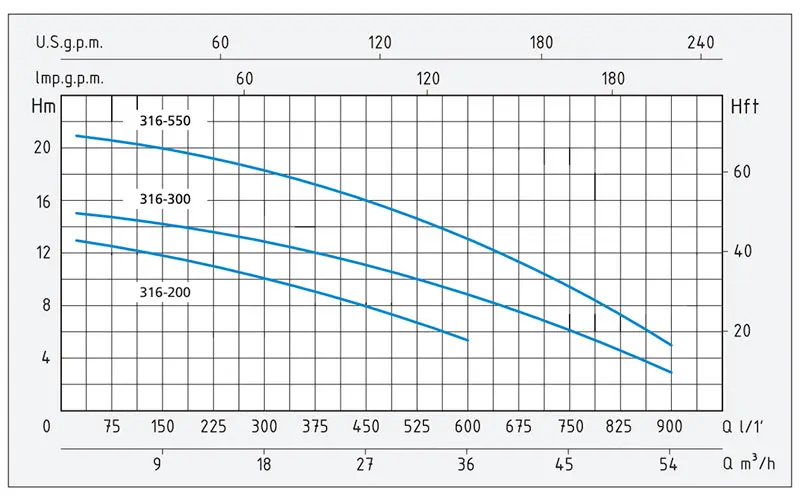

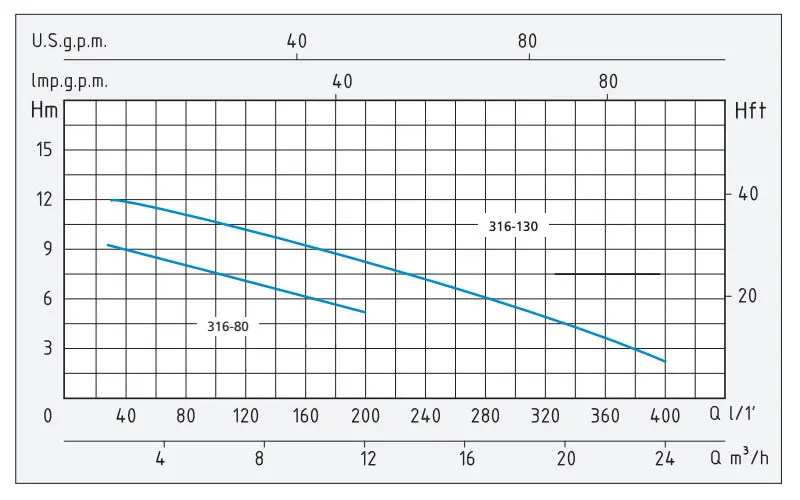

Hydraulic Curve

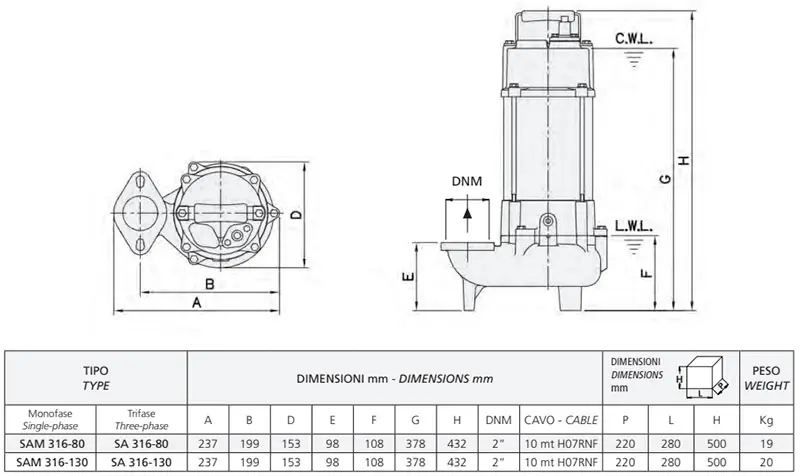

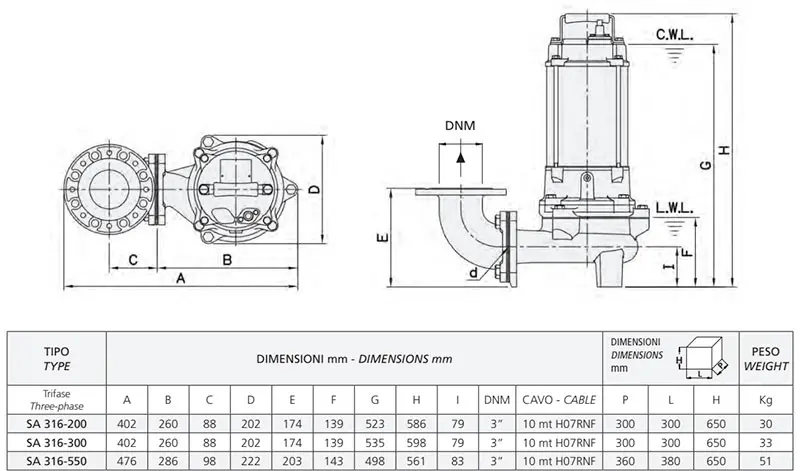

Product Dimensions

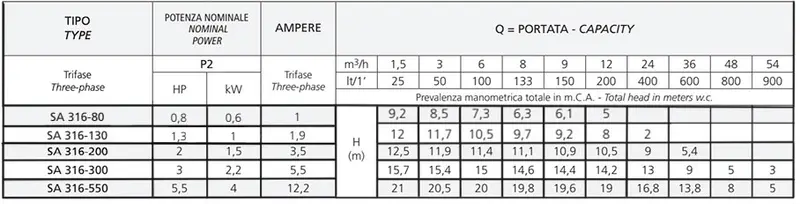

Technical Data
| Model | SA 316-80/ | SA 316-130 | SA 316-200 | SA 316-300 | SA 316-550 |
| Power Supply | 400 V | 400 V | 400 V | 400 V | 400 V |
| Rated Power | 0.80 HP (0.6 kW) | 1.30 HP (1 kW) | 2.00 HP (1.5 kW) | 3.00 HP (2.2 kW) | 5.50 HP (4 kW) |
| Discharge Diameter | DNM 2'' | DNM 2'' | DNM 3'' | DNM 3'' | DNM 3'' |
| Min Head | 5 m | 2 m | 5.4 m | 3 m | 5 m |
| Max Head | 9.2 m | 12 m | 12.5 m | 15.7 m | 21 m |
| Liquid Flow Rate | 200 L/min | 400 L/min | 600 L/min | 800 L/min | 900 L/min |
| Protection Class - Insulation | IP 68 - F | IP 68 - F | IP 68 - F | IP 68 - F | IP 68 - F |
| Dimensions with packaging | 24 x 15 x 43 cm | 24 x 15 x 43 cm | 40 x 20 x 59 cm | 40 x 20 x 60 cm | 48 x 22 x 56 cm |
| Weight | 19 kg | 20 kg | 30 kg | 33 kg | 51 kg |
