Leo PQ50E-1
370 W Pressurization System
Constant Water Pressure

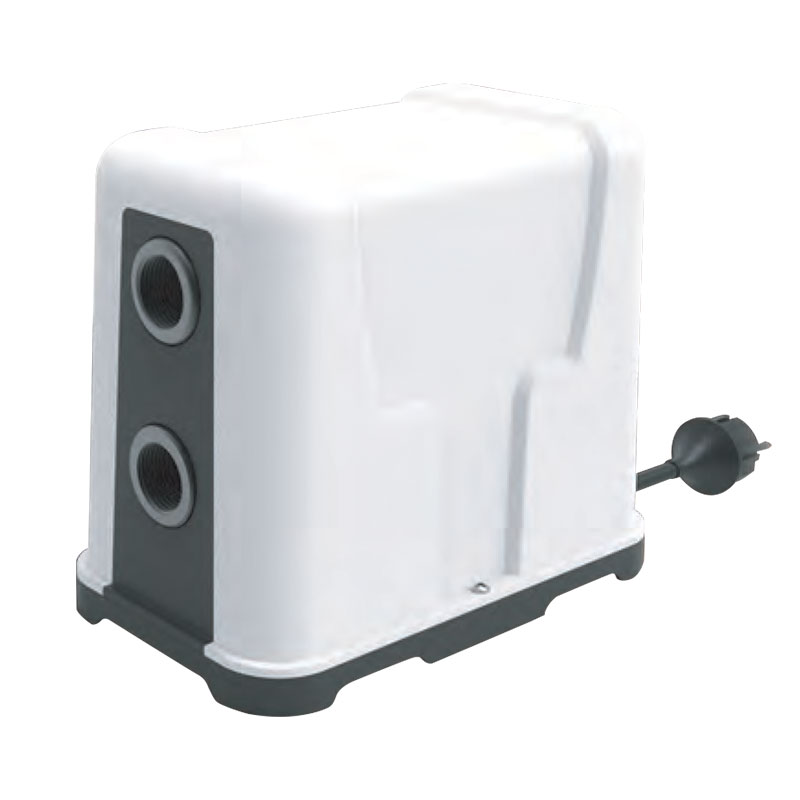

LEO PQ50E-1 - Integrated Pressurization and Lifting System

LEO PQ50E-1 is a compact and reliable booster pump, designed to improve water pressure in domestic applications, for garden irrigation and for small agricultural systems. This model is an on-off constant pressure system , that is, it only starts working when water is required, thus ensuring significant energy savings.

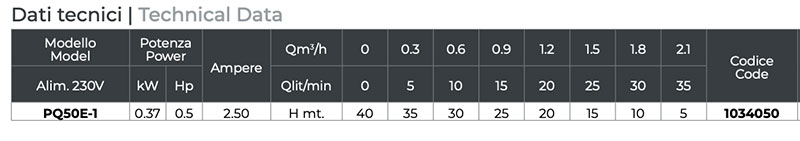

With a power of 0.37 kW (0.5 HP) and a maximum absorption of 2.5 A, the PQ50E-1 is equipped with a motor with copper windings , which ensures durability and efficiency. Easy to install and use, thanks to the touch panel with pressure and error code display , it already integrates a non-return valve, expansion vessel and pressure sensor.

The system is also protected against overheating, dry running and impeller blockage.

Application

• Water supply and pressure boosting for domestic applications
• Garden and agriculture irrigation

Characteristics

• Protective functions : Dry running protection, leakage protection, high/low voltage protection
• Low noise level : 47 dB(A) during normal use.
• Touch Control: Operating pressure and error code and other parameters visible and programmable.
• Easy Installation : Non-return valve, pressure sensor, expansion vessel included.

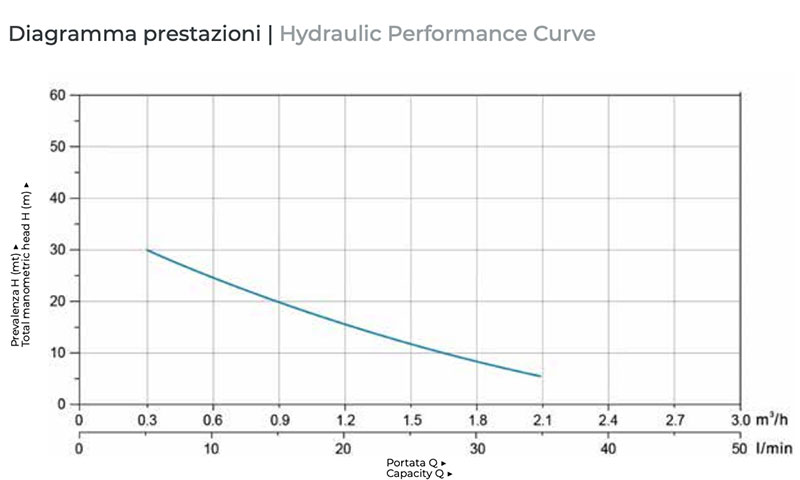

OPERATION CURVE
