Leo LSWS
1 HP Drainage Electric Pump
For Dirty and Loaded Water
230V - 0.75÷1HP
234÷334 L/h - Prevalence 8.5÷10.5 m
Ø 1''1/2 - 2''
€245.00
€200.82 tax excl.

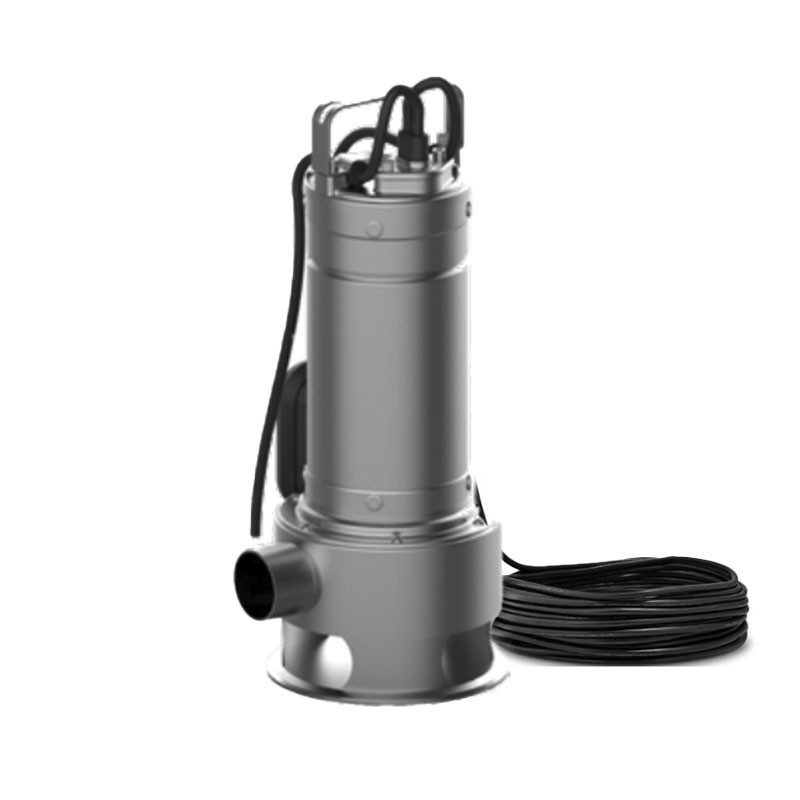

Leo LSWS - Electric Drainage Pump for Dirty and Loaded Water
The Leo LSWS submersible electric pump is designed to offer an efficient drainage solution in residential, commercial and industrial environments. Robust and versatile, it is perfect for removing wastewater , muddy water or water containing solids . Its compact structure and ease of use make it suitable even for less experienced users. Thanks to the IP68 protection and the quality of the materials used, this Leo pump can operate in difficult conditions, ensuring safety and reliability.
Leo LSWS is a single-phase drainage electric pump up to 1 HP, ideal for draining a washing area or managing light sewage water and for managing rapid and effective interventions.
Includes 10 meters of cable.
Available Models
Selectable from drop-down menu:
- LSWm75SA - code 1052075
- LSWm100SA - code 1052100
APPLICATION
- Drainage of waste water with solid bodies up to 35 mm
- Disposal of groundwater and sewage
- Stagnant surface water, sewage water and particularly loaded water
- Flooded environments and machine washing areas
PUMP
- Diving depth 5 m
- Max liquid temperature +40%
- Liquid pH value 4-10
MOTOR
- Copper motor winding
- Built-in thermal protection
- Stainless steel tree
- Insulation class F
- Protection class IP68

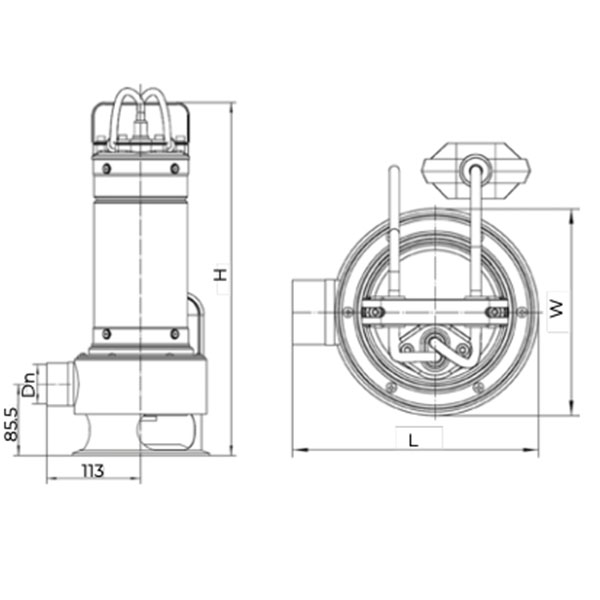

DATA and Dimensions

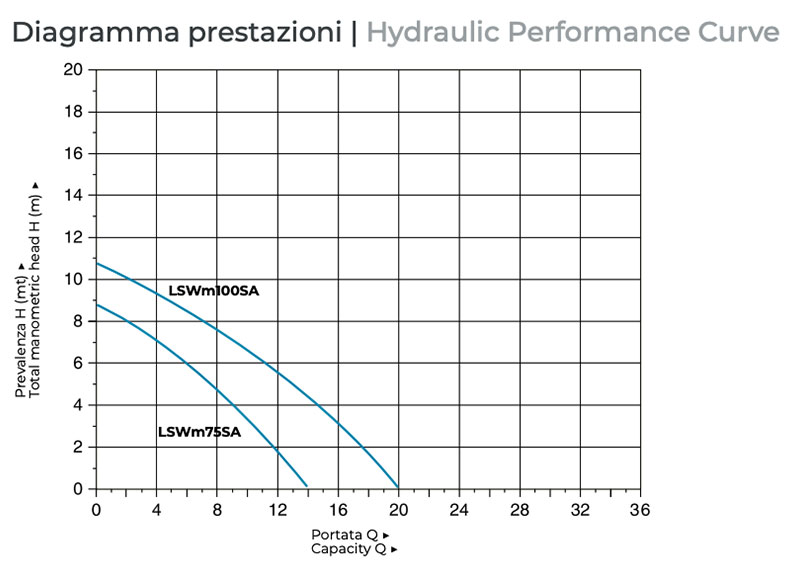

Performance curves

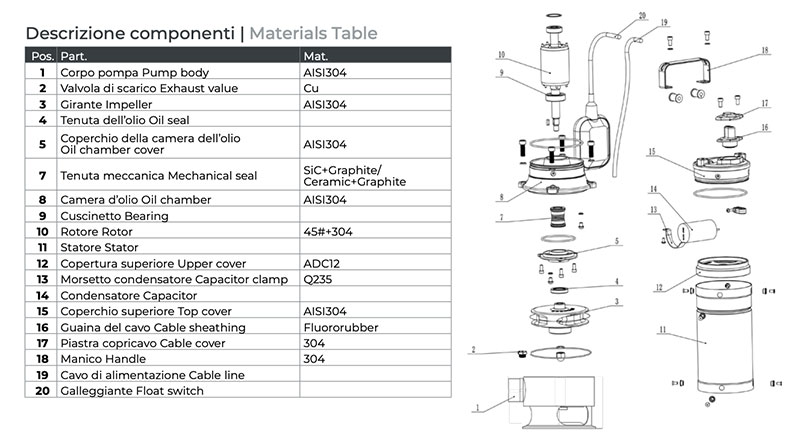

components

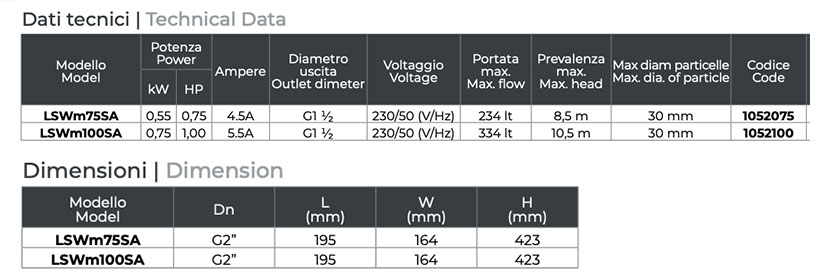

Technical Data
| Model | LSWm75SA | LSWm100SA |
| Code | 1052075 | 1052100 |
| Power Supply | 230 V | 230 V |
| Rated power | 0.55 kW - 0.75 HP | 0.75 HP - 1 HP |
| Delivery Diameter | Ø 1'' 1/2 (40 mm) | Ø 1'' 1/2 (40 mm) |
| Suction Diameter | Ø 2'' (50 mm) | Ø 2'' (50 mm) |
| Prevalence | 8.5 m | 10.5 m |
| Flow rate | 234 L/min | 334 L/min |
| Max Liquid Temp. | 40 °C | 40 °C |
| Protection Class - Insulation | IP68 - Class F | IP68 - Class F |
| Diving Depth | 5 m | 5 m |
| Cable Length | 10 m | 10 m |
| Pump Material | AISI304 | AISI304 |
| Dimensions | 19.5 x 16.4 x 42 cm | 19.5 x 16.4 x 42 cm |
| Weight with Packaging | 14 kg | 15.1 kg |
Technical Data
| Model | LSWm75SA | LSWm100SA |
| Code | 1052075 | 1052100 |
| Power Supply | 230 V | 230 V |
| Rated power | 0.55 kW - 0.75 HP | 0.75 HP - 1 HP |
| Delivery Diameter | Ø 1'' 1/2 (40 mm) | Ø 1'' 1/2 (40 mm) |
| Suction Diameter | Ø 2'' (50 mm) | Ø 2'' (50 mm) |
| Prevalence | 8.5 m | 10.5 m |
| Flow rate | 234 L/min | 334 L/min |
| Max Liquid Temp. | 40 °C | 40 °C |
| Protection Class - Insulation | IP68 - Class F | IP68 - Class F |
| Diving Depth | 5 m | 5 m |
| Cable Length | 10 m | 10 m |
| Pump Material | AISI304 | AISI304 |
| Dimensions | 19.5 x 16.4 x 42 cm | 19.5 x 16.4 x 42 cm |
| Weight with Packaging | 14 kg | 15.1 kg |
