Leo LDW FabryLeo
Submersible Electric Pump
Multistage from 0.75 to 1.2 HP
230V - 0.75÷1.2 HP
83.2 L/min - Head 73 m
Ø 4”
€210.00
€172.13 tax excl.
Warranty 2 years
Shipped on Pallet

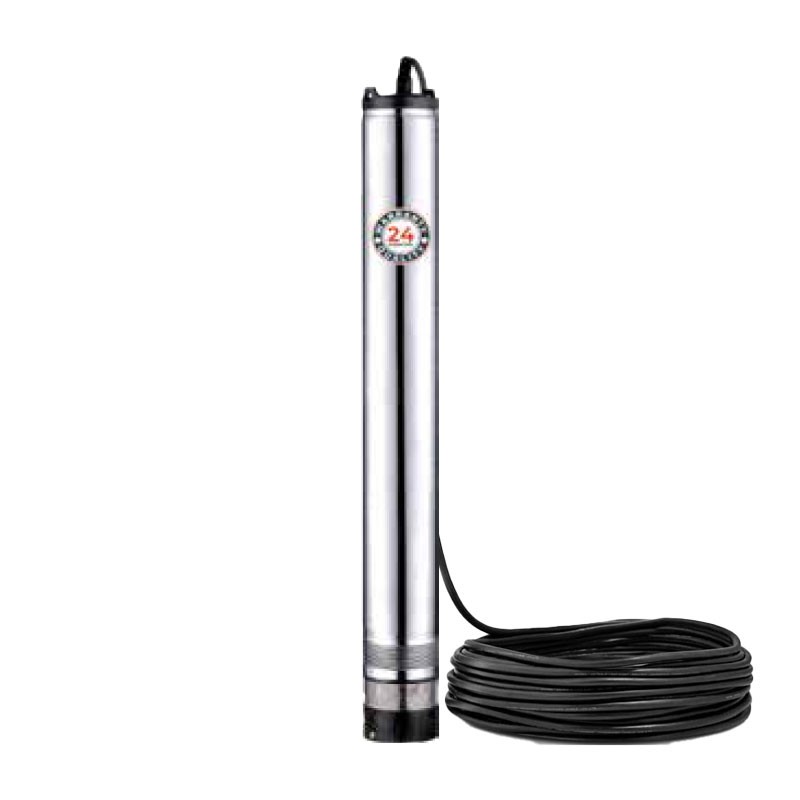

Leo LDW - Multistage Submersible Electric Pump
The 4" monobloc submersible electric pumps are designed for civil applications, ideal for use in cisterns, traditional wells, collection tanks and small irrigation systems. Thanks to their compact design and high performance, they represent an efficient solution for pumping water in various domestic or small-scale agricultural contexts.
The pump body is made of AISI 304 stainless steel , a material that guarantees resistance to corrosion and long life. The multi-stage impeller structure allows for high head and optimal flow rates. Performance remains stable up to a maximum immersion depth of 7 meters . The maximum temperature of the pumped liquid is +35°C and the maximum diameter of the solid particles allowed is 1 mm . The pump is supplied with a 22-meter cable and rope.
Available models
- LDW-6-35-750 - code 1042035
- LDW-6-49-1000 - code 1042049
- LDW-6-70-1300 - code 1042070
Applications
- 4" monobloc electric pump ideal for deposits and tanks
- Ideal for small applications
Pump
- AISI304 pump body
- High prevalence and excellent flow rates
- Maximum liquid temperature 35°C
- Maximum immersion capacity 7 m
- Particle diameter 1 mm
- 22mm cable
- 22mm rope
Motor
- Integrated thermal protection
- Insulation class F
- Protection class IPX8

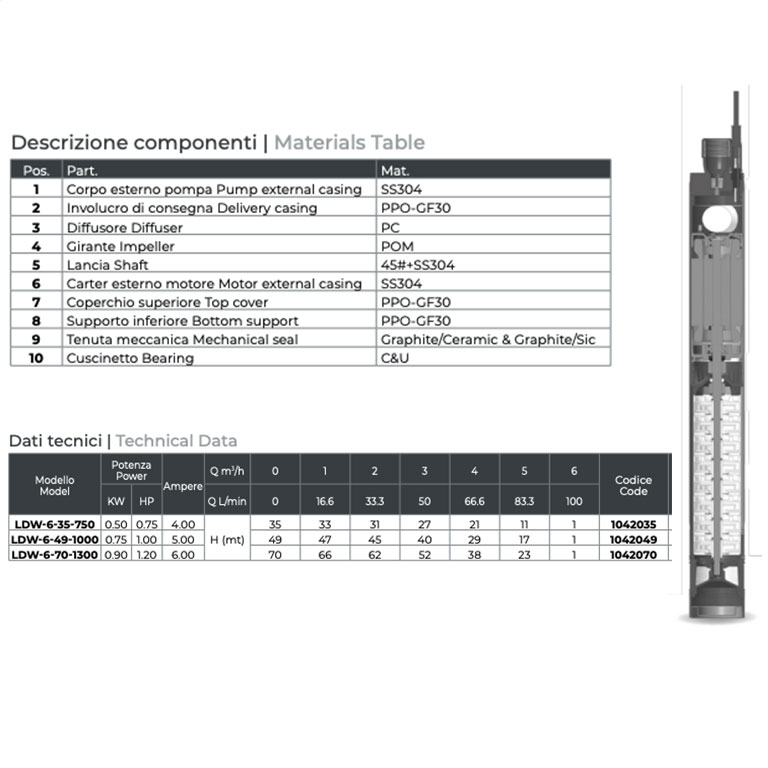

Technical Data
| Model | LDW-6-35-750 | LDW-6-49-1000 | LDW-6-70-1300 |
| Code | 1042035 | 1042049 | 1042070 |
| Power Supply | 230V | 230V | 230V |
| Rated power | 0.50 kW - 0.75 HP | 0.75 kW - 1 HP | 0.9 kW - 1.20 HP |
| Motor/Pump Connection | 4'' | 4'' | 4'' |
| Prevalence | 1÷35 m | 1÷49 m | 1÷70 m |
| Max Liquid Temp. | 35 °C | 35 °C | 35 °C |
| Max Dive Depth | 7 m | 7 m | 7 m |
| Protection Class - Insulation | IP X8 - Class F | IP X8 - Class F | IP X8 - Class F |
| Motor | Copper Winding | Copper Winding | Copper Winding |
| Cable | 22 m | 22 m | 22 m |
| Rope | 22 m | 22 m | 22 m |
| Minimum Well Diameter | 132mm | 132mm | 132mm |
Technical Data
| Model | LDW-6-35-750 | LDW-6-49-1000 | LDW-6-70-1300 |
| Code | 1042035 | 1042049 | 1042070 |
| Power Supply | 230V | 230V | 230V |
| Rated power | 0.50 kW - 0.75 HP | 0.75 kW - 1 HP | 0.9 kW - 1.20 HP |
| Motor/Pump Connection | 4'' | 4'' | 4'' |
| Prevalence | 1÷35 m | 1÷49 m | 1÷70 m |
| Max Liquid Temp. | 35 °C | 35 °C | 35 °C |
| Max Dive Depth | 7 m | 7 m | 7 m |
| Protection Class - Insulation | IP X8 - Class F | IP X8 - Class F | IP X8 - Class F |
| Motor | Copper Winding | Copper Winding | Copper Winding |
| Cable | 22 m | 22 m | 22 m |
| Rope | 22 m | 22 m | 22 m |
| Minimum Well Diameter | 132mm | 132mm | 132mm |
