Leo LVR 5
Centrifugal Electric Pump
Three-phase from 1.5 to 3 HP Vertical

LEO LVR 400V - Vertical Centrifugal Electric Pump

The Leo LVR pump is designed for the transfer of clean water or non-aggressive liquids, ideal for civil, agricultural and industrial applications. Leo LVR is perfect for flow or rain irrigation and for drawing water from lakes, rivers or wells. It is also used in the fruit and vegetable industry for washing vegetables and in the industrial sector for parts washing machines, thanks to its ability to provide large flow rates at low prevalence.

The pump is made with a cataphoresis-treated cast iron body , brass impeller and AISI 304 stainless steel shaft. It supports temperatures from -20°C to +120°C , with suction up to 8 metres . It is equipped with an IE3 motor with copper windings, IPX4 protection and class F insulation .

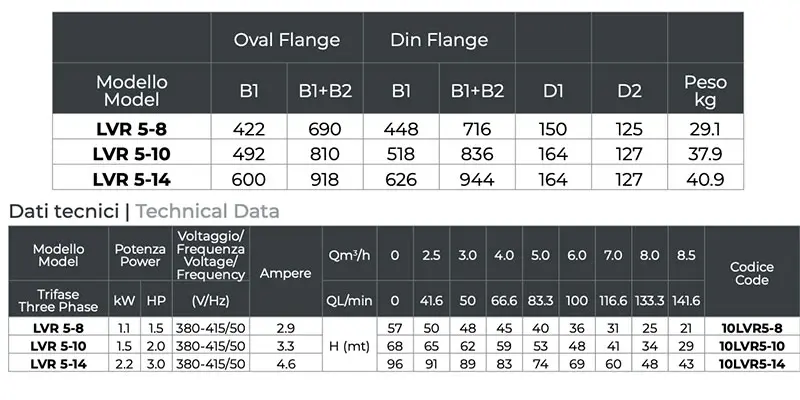

Available models

Selectable from drop-down menu:

• LVR 5-8 - code 10LVR5-8
• LVR 5-10 - code 10LVR5-10
• LVR 5-14 - code 10LVR5-14

Application

• Clean water or chemically non-aggressive liquids: recommended for use in civil and agricultural environments
• Sprinkler irrigation
• Water withdrawal from lakes, rivers or wells
• Industrial use requiring high flow rates with low heads
• Fruit and vegetable sector for washing vegetables
• Industrial sector for washing tools

Pump

• • Cast iron pump body, subjected to cataphoresis treatment
  • Brass impeller
  • AISI 304 shaft
  • Liquid temperature: -20°C +120°C
  • Manometric suction height up to: 8 m

Motor

• Motor with copper winding
• Insulation class F
• Protection class IPX4
• Energy efficiency class: IE 3
• Maximum ambient temperature +40°C

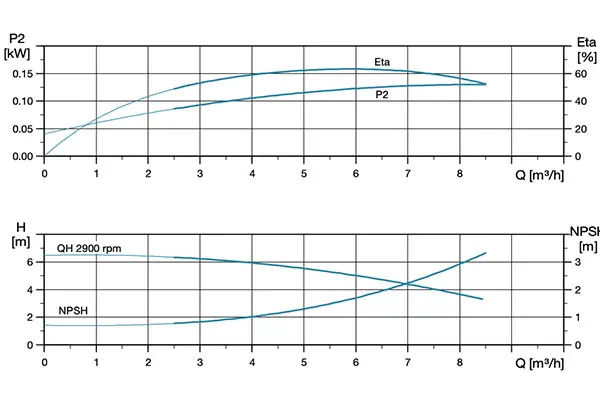

Operation curves

Suction pressure

The maximum suction pressure is indicated in the table
