Leo LVR 5
Centrifugal Electric Pump
Three-Phase from 1.5 to 3 HP Vertical
400V - 1.5÷3HP
141 L/min - Head 141 m
Ø 1/4
€690.00
€565.57 tax excl.
Warranty 2 years
Shipped on Pallet

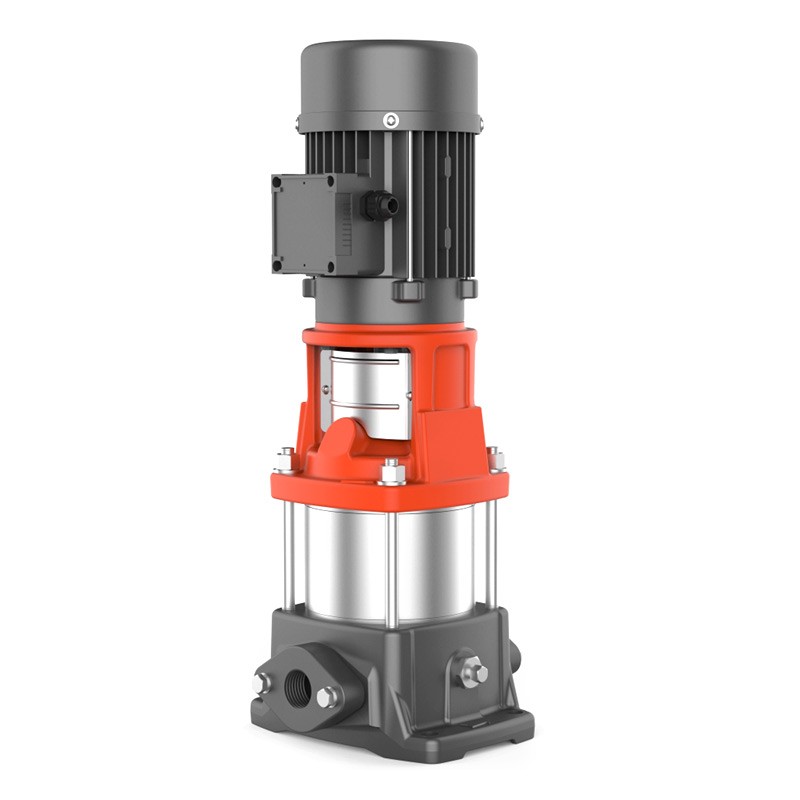

LEO LVR 400V - Vertical Centrifugal Electric Pump
The Leo LVR pump is designed for transferring clean water or non-aggressive liquids, ideal for civil, agricultural, and industrial applications. The Leo LVR is perfect for surface or sprinkler irrigation and for pumping water from lakes, rivers, or wells. It is also used in the fruit and vegetable industry for washing vegetables and in industrial applications for parts washing machines, thanks to its ability to deliver high flow rates at low head.
The pump is made with a cataphoresis-treated cast iron body , brass impeller and AISI 304 stainless steel shaft. It can withstand temperatures from -20°C to +120°C , with suction up to 8 metres . It is equipped with an IE3 motor with copper windings, IPX4 protection and class F insulation .
Available models
Selectable from the drop-down menu:
- LVR 5-8 - code 10LVR5-8
- LVR 5-10 - code 10LVR5-10
- LVR 5-14 - code 10LVR5-14
Application
- Clean water or chemically non-aggressive liquids: recommended for use in civil and agricultural environments
- Sprinkler irrigation
- Water withdrawal from lakes, rivers or wells
- Industrial use requiring high flow rates with low heads
- Fruit and vegetable sector for washing vegetables
- Industrial sector for washing tools
Pump
- Cast iron pump body, subjected to cataphoresis treatment
- Brass impeller
- AISI 304 shaft
- Liquid temperature: -20°C +120°C
- Manometric suction height up to: 8 m
Motor
- Motor with copper winding
- Insulation class F
- Protection class IPX4
- Energy efficiency class: IE 3
- Maximum ambient temperature +40°C
Operating curves
Suction pressure
The maximum suction pressure is indicated in the table
Technical Data
| Model | LVR 5-8 | LVR 5-10 | LVR 5-14 |
| Code | 10LVR5-8 | 10LVR5-10 | 10LVR5-14 |
| Power Supply | 400 V | 400 V | 400 V |
| Rated power | 1.1 kW - 1.5 HP | 1.5 kW - 2 HP | 2.2 kW - 3 HP |
| Suction Diameter | 1/4'' | 1/4'' | 1/4'' |
| Suction Height | 8 m | 8 m | 8 m |
| Prevalence | 21÷57 m | 29 ÷ 68 m | 43 ÷ 96 m |
| Liquid Flow Rate | 0÷141.6 L/min | 0÷141.6 L/min | 0÷141.6 L/min |
| Max Liquid Temp. | -20° + 120°C | -20° + 120°C | -20° + 120°C |
| Max. Ambient Temp. | +40°C | +40°C | +40°C |
| Protection Class - Insulation | F - IPX4 | F - IPX4 | F - IPX4 |
| Pump Body Material | Cast iron | Cast iron | Cast iron |
| Weight | 29.1 kg | 37.9 kg | 40.9 kg |
Technical Data
| Model | LVR 5-8 | LVR 5-10 | LVR 5-14 |
| Code | 10LVR5-8 | 10LVR5-10 | 10LVR5-14 |
| Power Supply | 400 V | 400 V | 400 V |
| Rated power | 1.1 kW - 1.5 HP | 1.5 kW - 2 HP | 2.2 kW - 3 HP |
| Suction Diameter | 1/4'' | 1/4'' | 1/4'' |
| Suction Height | 8 m | 8 m | 8 m |
| Prevalence | 21÷57 m | 29 ÷ 68 m | 43 ÷ 96 m |
| Liquid Flow Rate | 0÷141.6 L/min | 0÷141.6 L/min | 0÷141.6 L/min |
| Max Liquid Temp. | -20° + 120°C | -20° + 120°C | -20° + 120°C |
| Max. Ambient Temp. | +40°C | +40°C | +40°C |
| Protection Class - Insulation | F - IPX4 | F - IPX4 | F - IPX4 |
| Pump Body Material | Cast iron | Cast iron | Cast iron |
| Weight | 29.1 kg | 37.9 kg | 40.9 kg |
