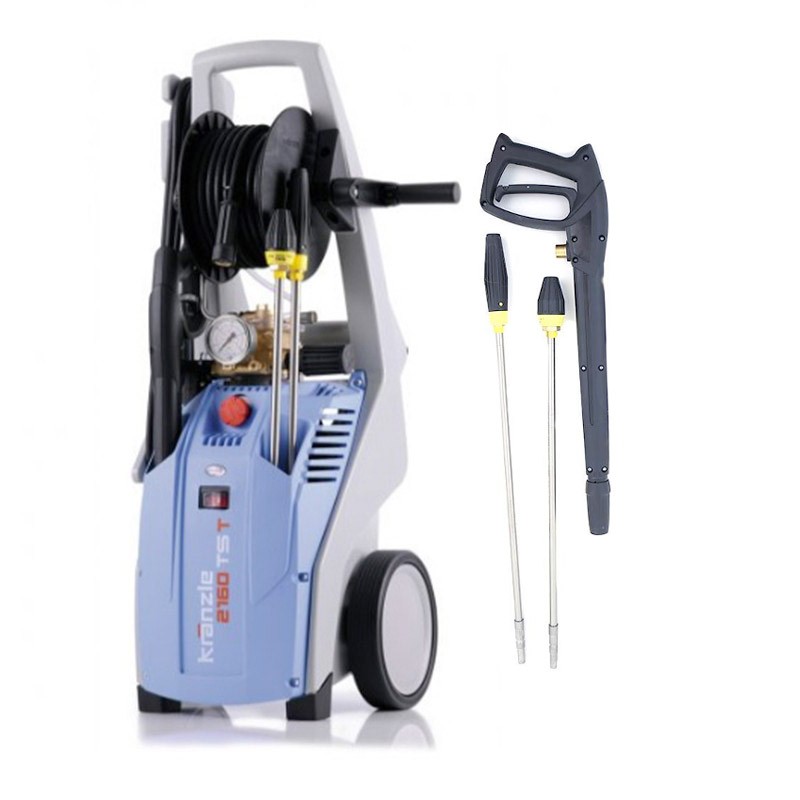

Kranzle K 2160 2195 2175 TST
Pressure Washer with Hose Reel

Kranzle K 2160 2195 2175 TST - High Pressure Washer with Hose Reel

The Kranzle K series is made up of various models where the design is common and the only characteristics that vary are pressure, flow rate and power supply.

The models of the Kranzle K 2000 TST series are:

• Kranzle K 2160 TS T Single-phase 230V (with 15 meters of hose with hose reel)
• Kranzle K 2195 TS T Single-phase 230V (with 15 meters of hose with hose reel)
• Kranzle K 2175 TS T Three-phase 400V (with 15 meters of hose with hose reel)

Check out the specifications table at the bottom of the page to see the models compared and make your choice!

Kranzle K can also be positioned horizontally

Characteristics

• The pump head is made of special brass
  The pump head is made in Germany by Kranzle, using special forged brass which guarantees an extremely long life.
• Ceramic-coated stainless steel pistons All machines are equipped with ceramic-coated stainless steel pistons which offer excellent thermal conductivity and excellent wear resistance properties (typical of ceramic coatings).
• Engine 1400 rpm
  The devices are equipped with long-lasting, 4-pole, low-speed asynchronous electric motors (1,400 rpm). No carbon brushes = no problems!
• Dry-running protection
  In all machines, each piston is equipped with a textile sleeve and a Teflon-graphite ring. The excellent sliding properties of the Teflon-graphite elements reduce frictional resistance and temperatures inside the machine. This allows Kranzle products to operate for extended periods even without water. This increases safety in dry-running situations.
• Bypass operation
  When the gun is closed, all devices are switched to bypass operation at reduced pressure and the water is transported into the circuit with a residual pressure of approximately 10 bar.
• Water pressure and quantity regulation
  The machines, except those with a double group, allow you to set the operating pressure and, consequently, the quantity of water so as to adapt them exactly to the needs of the cleaning being carried out.
• Stainless steel pressure gauge
  All machines are equipped with large, clearly visible stainless steel pressure gauges cushioned with glycerine. Kranzle quality is evident in the details.
• Corrosion-free and long-lasting
  All pump components and safety devices that transport water are made of stainless steel or special brass.
• Loss Recovery System
  A layer of water between the piston seals prevents incoming air from coming into contact with the pump seal. This significantly increases the life of the pistons and the pump.
• Product safety
  Kranzle appliances are subjected to testing procedures according to CE and TÜV/GS regulations with respective certifications.
• Robust Roto-Mold Frame
  Made from a single piece with large-diameter rubber wheels, suitable for transport on any type of terrain. The materials used to make the frame and the diameter of the wheels make it suitable for pulling even up stairs.
• 5m electric cable with cable reel
• Housing for all accessories
  high pressure gun, Vario-Jet Duo lance and lance with rotating nozzle

Difference between the "TS" and "TS T" models

The Kranzle K 2000 series, which includes the K 2195, is built with oversized mechanical components designed for continuous industrial use. This also ensures the long life of its appliances. The body of the K 2000 series pressure washers has been designed to ensure the most rational arrangement possible of each component: the hose reel, the high-pressure gun housing, the lance housings, and the power cord rewind system.

Fields of application

For professional use and the demanding professional who wants a machine that's always in perfect working order, meticulously maintained. For washing cars and machinery, garden equipment, floors, exterior walls, paint stripping, and sandblasting.

Standard equipment

• 5m electric cable with cable reel
• High pressure hose with steel reinforcement mesh
• Automatic pistol with automatic arrest
• Stainless steel lance with rotating nozzle
• Lancia Vario-Jet DUO
