STRM Professional Dispenser for Chemical Solutions and Detergents High Regulation Precision

The Softclean chemical injection box is an indispensable accessory in cleaning operations for carefully mixing detergents such as Algo Clear or similar with water, with the possibility of easily adjusting the necessary proportions thanks to the built-in chemical dosing unit.

STRM Softclean Dosatron - Adjustable Detergent Mixer

Softclean Dosatron is equipped with a hydraulic piston and uses water pressure as the only driving force : it sucks in the concentrated product and doses the desired percentage, homogenizing it in the mixing chamber together with the driving water. The solution created is finally sent out of the dispenser.

This portable chemical dispenser ensures an effective and high quality soft wash , suitable for cleaning delicate materials or in situations where high pressure washing could cause damage.

STRM Softclean Dosatron - Chemical Injection BoxSTRM Softclean Dosatron - Adjustable Mixer for Chemical Products

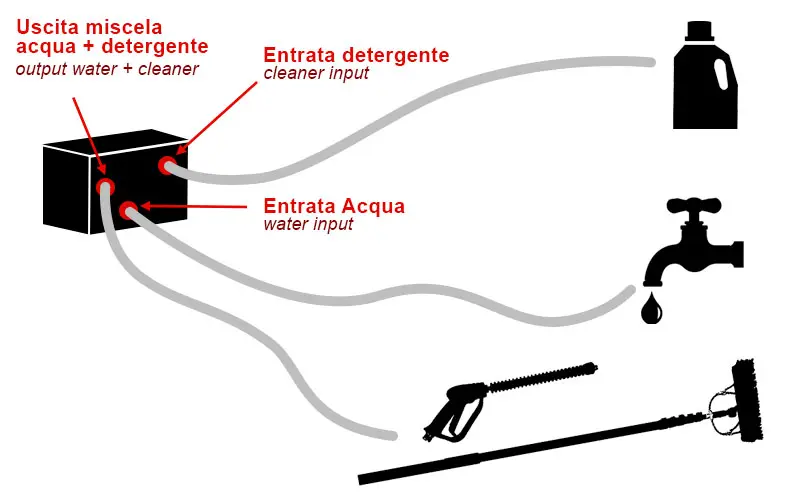

Simple to use, just connect the water source to the water inlet fitting and a chemical to the chemical inlet and adjust the water/detergent ratio. The Dosatron chemical dosing unit allows you to obtain a uniform mixture by choosing the proportions based on your needs.

STRM Softclean Dosatron Usage

Softclean is equipped with quick-connect male fittings for a quick connection, one-way valve for controlled flow, pressure regulation , water/detergent ratio regulation and integrated pressure gauge to monitor pressure in real time.

STRM Softclean Dosatron - Portable

The compact dimensions of 40 x 40 x 33.5 cm and the weight of 5 kg make this accessory light and easy to transport.

Characteristics

  • Box for chemical injection
  • Lightweight and portable
  • Easy to use
  • Integrated pressure gauge
  • Possibility of connection to the electricity network or other water network
  • Suitable for use in all weather conditions
  • Not suitable for use with sodium hypochlorite

Technical data

Motor Hydraulic piston
Input/Output Connection 3/4''M
Water flow rate 5 ÷ 700 L/h
Pressure 0.30 ÷ 6 bar
Dosage External Regulation 0.15 ÷ 1.25 %
Injected Solution Flow Rate 0.0075 ÷ 8.75 L/h
Max Operating Temperature 40° C
Min Operation Water Temperature 5° C
Average Dosing Accuracy +/- 5%
Load Loss 0.3 ÷ 1.4 bar
Integrated Bleed Valve YES
Self-Priming YES
Max Viscosity Concentrate 400 cSt at 20° C
Max Concentrate Suction Height/Length 4 m
Sucker YES
Dimensions 40 x 40 x 33.5 cm
Weight 5kg

Technical data

Motor Hydraulic piston
Input/Output Connection 3/4''M
Water flow rate 5 ÷ 700 L/h
Pressure 0.30 ÷ 6 bar
Dosage External Regulation 0.15 ÷ 1.25 %
Injected Solution Flow Rate 0.0075 ÷ 8.75 L/h
Max Operating Temperature 40° C
Min Operation Water Temperature 5° C
Average Dosing Accuracy +/- 5%
Load Loss 0.3 ÷ 1.4 bar
Integrated Bleed Valve YES
Self-Priming YES
Max Viscosity Concentrate 400 cSt at 20° C
Max Concentrate Suction Height/Length 4 m
Sucker YES
Dimensions 40 x 40 x 33.5 cm
Weight 5kg
