Pramac PMD5000S
Silenced Diesel Generator 5 kW
ATS Optional
€1,433.00
€1,174.59 tax excl.
| or in 3 rates from 477.67 € with |  |
library_add
more options
MPN: PR452SXAY00
230V - 5 kW
418 cc
Diesel
Warranty 2 years
14 days to change your mind
Shipped on Pallet

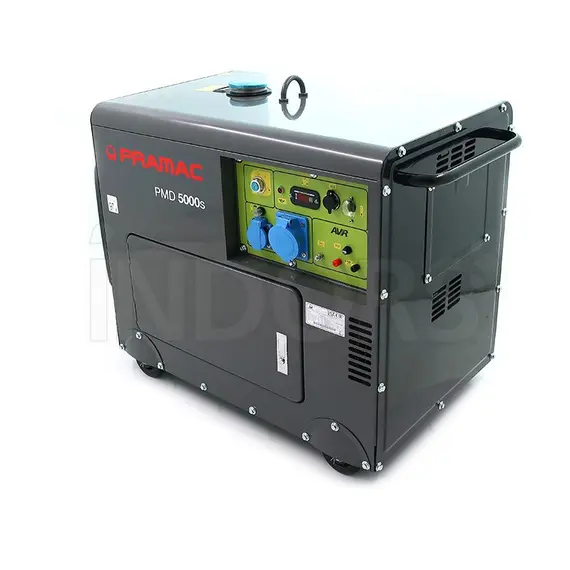

Pramac PMD5000S - Silenced Diesel Generator 5 kW
The Pramac PMD5000S diesel generator is a 5 kW generator designed to meet energy needs in different situations.
With a continuous output of 5 kW , this diesel generator is capable of providing a significant amount of electricity to power power tools , industrial and domestic equipment , and much more.
Featuring a robust and efficient diesel engine , the Pramac PMD5000S generator offers longer life and greater efficiency than traditional diesel generators.
With AVR current stabilizer , electric start and ATS panel predisposition for connection to the domestic network, Pramac PMD5000S is a diesel power generator ideal for semi-professional, domestic or emergency use.
Functional specifications
8 HP diesel engine
Equipped with a 4-stroke 186FAD engine, air-cooled with OHV overhead valves , the Pramac PMD5000S diesel generator has a power of 8.4 HP and a displacement of 481 cc , with an oil tank of 1.65 L.

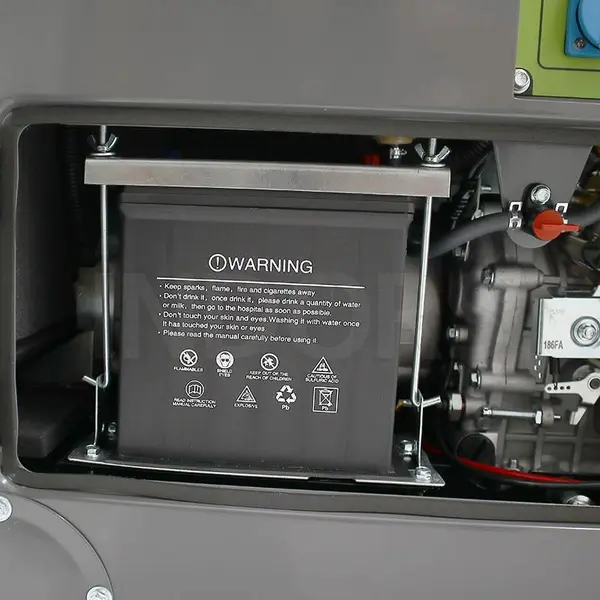

The engine is equipped with electric starter, with battery.
Silent generator
The Pramac PMD5000S generator is equipped with a residential muffler and is particularly suitable for working close to people and homes. Very low noise emissions: 72 dB at 7 m .
Control panel
- Electronic starting via key
- Main switch and ATS connector
- 12 V charger socket
- Single-phase Schuko sockets
- Single-phase industrial power socket
- Digital screen and oil control light
Watch the video
PMD Generator Tutorial
Maintenance Tutorial
Characteristics
- Continuous power of 4.5 kW
- AVR automatic adjustment
- Predisposition for ATS panel
- Robust and efficient diesel engine
- Greater autonomy thanks to reduced fuel consumption
- Reliable protection and easy maintenance
- Intuitive control panel
- Automatic shutdown system in case of low oil level
- Overload protection
- Portability with wheels and handles
Standard equipment
- Spark plug wrench
- Instruction booklet
Technical data
| Fuel | Diesel |
| Goodwill | Electric |
| Maximum power | 5 KVA - 5 KW cos φ 1 |
| Nominal power | 4.2 KVA - 4.2 KW cos φ 1 |
| Rated Horses | 8.4HP |
| Output Voltage | 230V / 50Hz |
| Motor | 4 Strokes |
| Engine rpm | 3000 rpm |
| Displacement | 418 cc |
| Phase | Single phase |
| Oil capacity | 1.65 L |
| Low Oil Level Protection | YES |
| Fuel Tank Capacity | 14.5 L |
| Autonomy 100% Load | 14.6 hours |
| Noise at 7 m | 69 dB |
| Voltmeter | YES |
| Hour meter | YES |
| Frequency meter | YES |
| Fuel level | YES |
| Magnetothermic protection | YES |
| 9A Fuse Protection (12V DC) | YES |
| ATS framework | Optional |
| Battery charger output | 12V |
| Schuko socket 16 A IP44 | 1 |
| 2P+E 230V 32A IP44 socket | 1 |
| Dimensions | 93 x 74 x 54 cm |
| Weight | 165kg |
Technical data
| Fuel | Diesel |
| Goodwill | Electric |
| Maximum power | 5 KVA - 5 KW cos φ 1 |
| Nominal power | 4.2 KVA - 4.2 KW cos φ 1 |
| Rated Horses | 8.4HP |
| Output Voltage | 230V / 50Hz |
| Motor | 4 Strokes |
| Engine rpm | 3000 rpm |
| Displacement | 418 cc |
| Phase | Single phase |
| Oil capacity | 1.65 L |
| Low Oil Level Protection | YES |
| Fuel Tank Capacity | 14.5 L |
| Autonomy 100% Load | 14.6 hours |
| Noise at 7 m | 69 dB |
| Voltmeter | YES |
| Hour meter | YES |
| Frequency meter | YES |
| Fuel level | YES |
| Magnetothermic protection | YES |
| 9A Fuse Protection (12V DC) | YES |
| ATS framework | Optional |
| Battery charger output | 12V |
| Schuko socket 16 A IP44 | 1 |
| 2P+E 230V 32A IP44 socket | 1 |
| Dimensions | 93 x 74 x 54 cm |
| Weight | 165kg |
