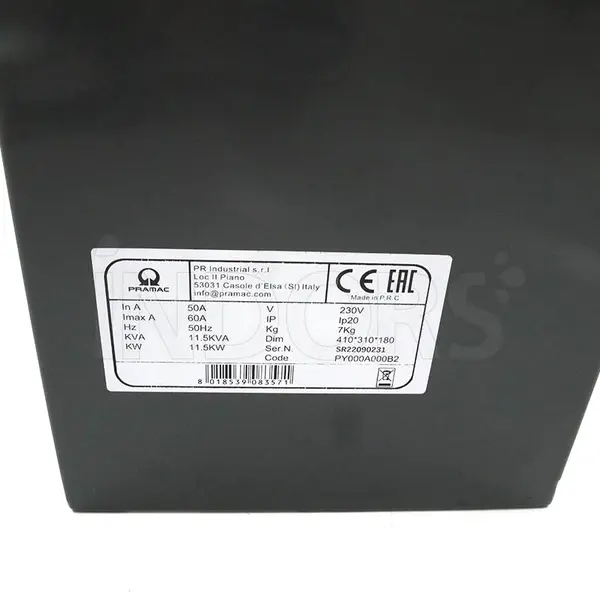

Pramac PY000A000B2
Automatic ATS panel
for PMD5000S generator

Pramac PY000A000B2 - Automatic ATS panel

The PY000A000B2 automatic ATS panel for Pramac PMD5000S power generator is an automatic intervention panel with quick coupling connector for connecting the generator set (auxiliaries).

Once installed and connected to the generator set, the ATS panel monitors the public network and activates in the event of a power failure.

The Pramac PY000A000B2 automatic ATS panel starts the generator and supplies the load . When the mains returns, the ATS panel opens the group contactor, switches the load to the mains and commands the generator to stop .

Functional specifications

Status indicators

The PY000A000B2 automatic ATS panel is equipped with status indicators including:

• Automatic mode (bulb)
• Mains voltage (bulb)
• Generator voltage (bulb)
• Alarm (light bulb)

For correct operation, the Pramac ATS must be installed by specialized personnel.

ATS Pramac equipment

This ATS is equipped with:

• Control and command unit
• Network/group switching
• Maintenance battery charge
• 8 m auxiliary connection cable

Compatibility

Automatic ATS panel PY000A000B2 is compatible with the Pramac PMD5000S generator.

Characteristics

• ATS panel for Pramac generator
• Equipped with control and command unit
• Network/group switching
• Useful in case of power failure/blackout
• Status indicators with bulb
