Pramac WX 3200ES
3kW Generator with Electric Start

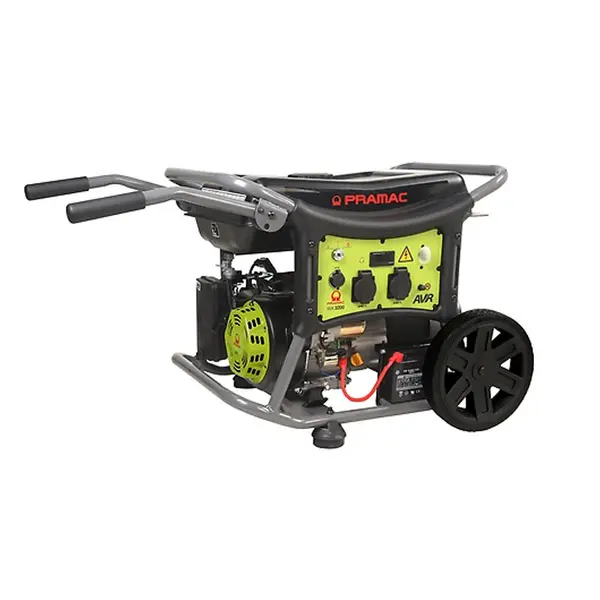

Pramac WX 3200 ES - 3 kW Trolley Generator Set with Electric Starter

Pramac WX 3200 ES is a portable 3 kW power generator , thanks to its wheeled structure , with handle and wheels to facilitate movement .

Equipped with AVR , the Pramac WX 3200 ES generator features a 3000 rpm petrol engine , with OHV configuration. Lubrication is in an oil bath ( 1.1L oil sump).

With electric battery start , Pramac WX 3200 ES is a very practical semi-professional generator for use for less than 4 hours .

Structural features

This power generator has a robust and compact structure , equipped with practical foldable ergonomic handles and large wheels that facilitate transport even on uneven terrain.

On the front there is a convenient control panel full of functions and on which you can find :

• Stop/start switch OFF-ON-START
• Connector with remote control predisposition
• Air valve

Instrumentation:

• Voltmeter
• Frequency meter
• Hour meter
• Fuel level indicator

Protections:

• Thermal
• Low oil level (oil guard)

Exit:

• Schuko 230V 16A IP44

This generator set has dimensions 68 x 60 x 52 cm , with a weight of 49 kg .

Specifications Operation

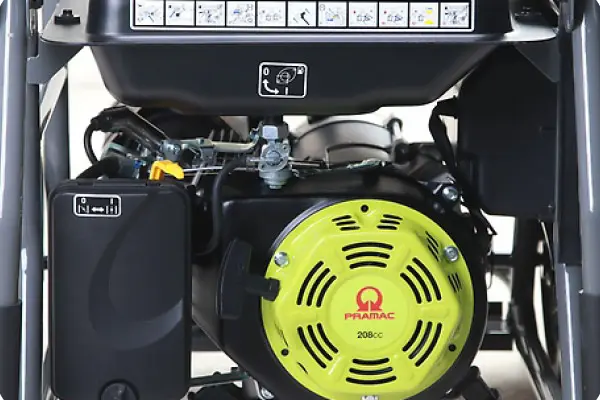

Pramac WX3200 ES uses a powerful 4-stroke single-cylinder OHV engine with electric start, Pramac WX 3200 ES has a fuel consumption at 50% of 1.04 L/h with autonomy at 50% load of 16h .

The regulation of the motor acceleration occurs thanks to the AVR board, whereby the device automatically regulates the output voltage, making it constant as the load varies. It is important to have an AVR card if you intend to connect electronic devices to the generator: the output voltage made constant by the card will avoid lightning strikes due to electrical discharges of too high voltage.

The starting of the petrol engine is electric. This generator set has a 17L metal fuel tank , with a side needle to keep the fuel level under control, with a fuel shut-off lever. Automatic decompression system .

With anti-vibration front rubber pads and large wheels for movement , Pramac Pramac WX 3200 ES is easily transportable.

As mentioned, this portable generator is a single-phase with a voltage of 230V . Its maximum power is 2.8 kW (kVA) .

The noise level of this machinery complies with the regulations and does not exceed 93 dB .

Options available

Selectable from the drop-down menu:

• Generator only

• Generator + ATS with 5 m cable

Characteristics

• 230V single-phase voltage
• Frequency 50 Hz
• Robust and compact structure with large wheels for transport
• Ergonomic and foldable handles
• Anti-vibration rubbers, choke lever
• Protective frame
• Full digital control panel
• OHV single-cylinder 4-stroke engine
• AVR card for automatic regulation of output voltage
• Electric starter
• 17 L fuel tank
• Engine thermal and low oil level protection

How to choose a portable generator set

To choose the ideal generator for your needs, you need to focus mainly on 3 points:

• Use of the product : if you need the power generator for occasional emergency use, for long-term or limited-time use;
• Type of voltage : to be evaluated if you need a generator compatible with domestic current (single-phase) or a three-phase industrial device;
• Quantity of power : the need for energy support must be assessed
