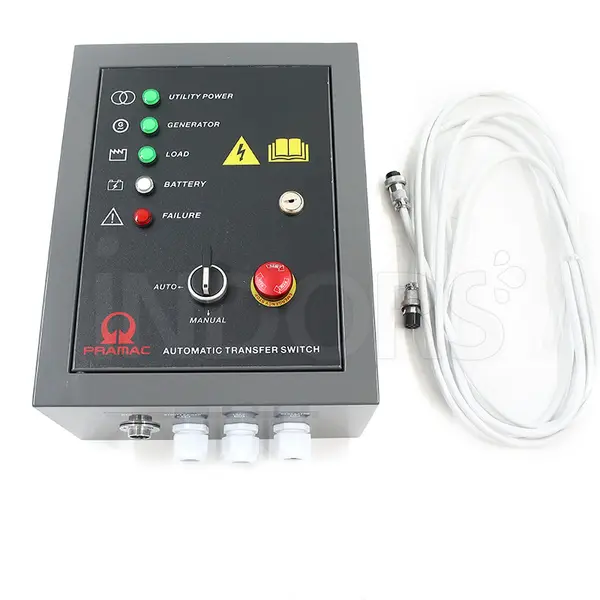

Pramac PY000A000BG - Automatic ATS panel
The PY000A000BG automatic ATS panel for power generator allows you to connect the generator set to the home network so as to allow automatic start-up in the event of a power cut .
The ATS panel is compatible with Pramac WX3200 ES and WX 6200 ES power generators.
Functional specifications
Pramac ATS PY000A000BG is used to transfer the electrical load from a main source (mains) to an emergency power source (generator). When the main power source goes out, the ATS allows the generator to provide electrical power to connected electrical loads.
Mode selector
If the primary energy source stops providing energy, the Pramac ATS automatically starts the generator. After approximately 1 minute the ATS supplies power to the generator's electrical load. If the main energy source is restored, after approximately 1 minute the ATS stops the generator.
Emergency button
The emergency stop button allows you to immediately stop the generator and stop the battery charging function.
Warning lights
Present are the mains power indicator lights, generator indicator light, load indicator light, battery indicator light and fault indicator light. With ATS multipin connector and signal cable.
Characteristics
- ATS generator for automatic starting
- Compatible with Pramac WX3200 ES and WX 6200 ES
Standard equipment
- ATS framework
- Cable for ATS - 5 meters
- Instructions
Technical data
Exercise voltage | 8 - 15V DC |
Rated Current Single Phase Meter | 45 A |
Rated Voltage Single Phase Contactor | 230V |
Nominal Frequency | 50Hz |
Nominal power | 10.35 kVA |
Charger Output Voltage | 13.8V DC |
Charging Current | 1 A |
Operating Temp. Interval | -20°C ÷ 70°C |
Entry Protection | IP 20 |
Cable | 5 m |
Dimensions | 32 x 25 x 14 cm |
Weight | 5kg |
