Pramac WX 6200
6 kW Trailer-Mounted Generator

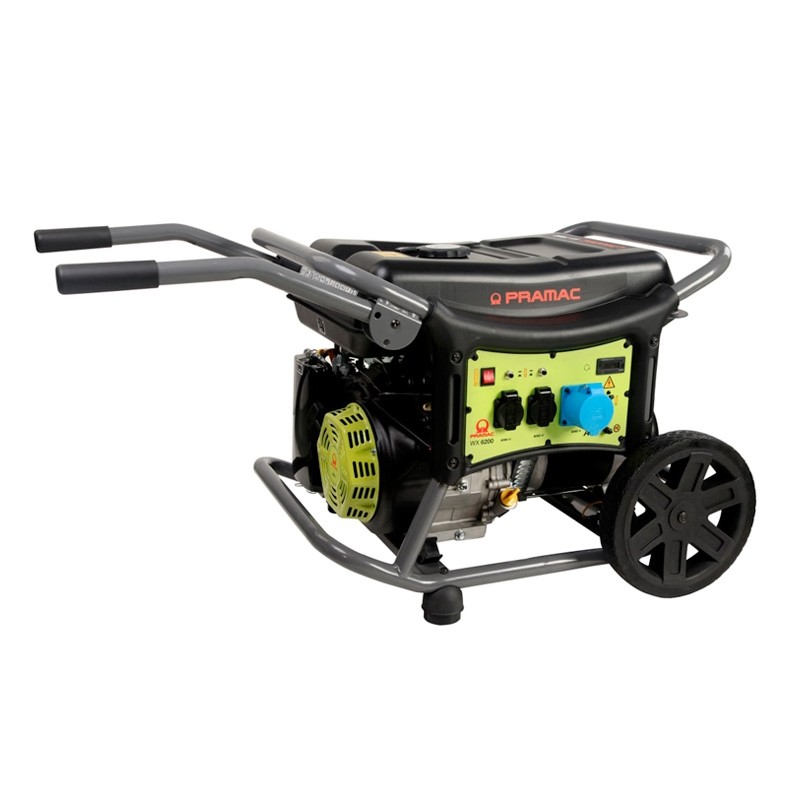

Pramac WX 6200 - Single-Phase Generator

The Pramac WX 6200 is a single-phase, petrol-powered generator capable of delivering a maximum power of 5.8 kW . The machine has features that make it easy to transport and ideal for semi-professional use.

Structural features

This generator has a robust and compact structure , equipped with practical ergonomic foldable handles and large wheels that facilitate transport even on rough terrain.

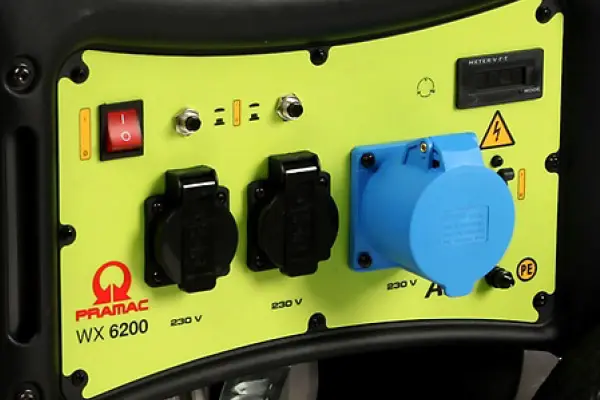

On the front there is a convenient control panel full of functions and on which you can find :

• A voltmeter with LED display for showing the output voltage;
• A switch to operate the engine : by pressing it the generator starts to supply current;
• A switch for thermal protection ;
• Two 16A Schuko power sockets;
• A 32A CEE socket
• Grounding

This generator has dimensions of 80 x 69 x 62 cm , with a weight of 78 kg .

Operation Specifications

The Pramac WX6200 uses a powerful 4-stroke single-cylinder OHV engine , equipped with an air cooling system and horizontal shaft . It has a displacement of 420 cc and a power output of 7.7 HP . Engine acceleration is regulated by the AVR board, which automatically regulates the output voltage, making it constant as the load varies. It is important to have an AVR board if you intend to connect electronic devices to the generator: the output voltage, kept constant by the board, will prevent lightning strikes due to excessively high voltage discharges.

The gasoline engine is recoil- started . This generator has a 26L metal fuel tank with a shut-off valve. Among the gauges is a special dipstick that indicates the fuel level.

Decompression is automatic and the engine lubrication system is oil bath . The engine is equipped with thermal protection and low oil level protection . Autonomy at 50% load is 12 hours .

As mentioned, this portable generator is a single-phase with a voltage of 230V . Its maximum power is 5.8 kW (kVA) .

The noise level of this machine complies with the regulations and does not exceed 97 dB .

Watch the video

Characteristics

• Single-phase voltage 230V
• Frequency 50 Hz
• Sturdy and compact structure with large wheels for transport
• Ergonomic and foldable handles
• Anti-vibration rubbers, air lever
• Protective frame
• Complete digital control panel
• 4-stroke single-cylinder OHV engine
• AVR board for automatic output voltage regulation
• Recoil starter
• 26L fuel tank
• Engine thermal and low oil level protection

How to choose a portable generator

To choose the ideal generator for your needs, you need to focus mainly on 3 points:

• Product use : if you need the generator for occasional emergency use, for long-term or limited-time use;
• Voltage type : evaluate whether you need a generator compatible with domestic current (single-phase) or a three-phase industrial device;
• Amount of power : the need for energy support must be assessed
