Pramac WX 6200ES
6kW Generator with Electric Start

Pramac WX 6200 ES - 6kW Trolley Generator with Electric Start

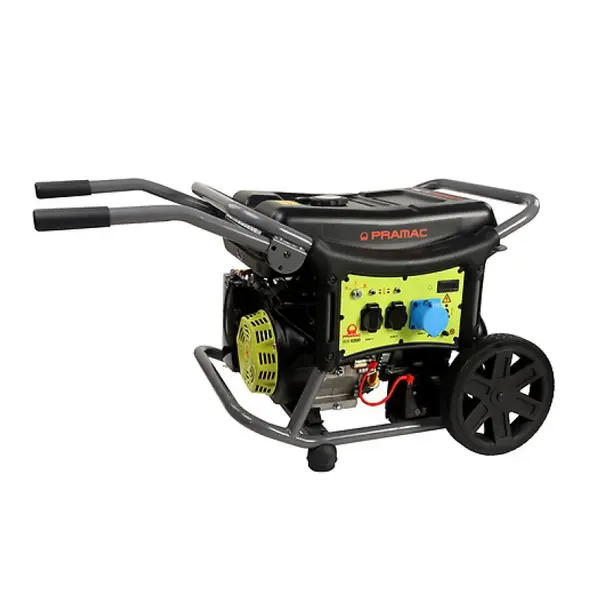

Pramac WX 6200 ES is a portable 6 kW generator , thanks to its trolley structure , with handle and wheels to facilitate movement .

Equipped with AVR , the Pramac WX 6200 ES generator features a 420cc petrol engine , with 7.7 HP of nominal power . Lubrication is in an oil bath (1.1L oil sump), with an OHV overhead valve configuration. With electric start with battery , Pramac WX 6200 ES is a very practical semi-professional generator for use of less than 4 hours .

Structural features

This generator has a robust and compact structure , equipped with practical ergonomic foldable handles and large wheels that facilitate transport even on rough terrain.

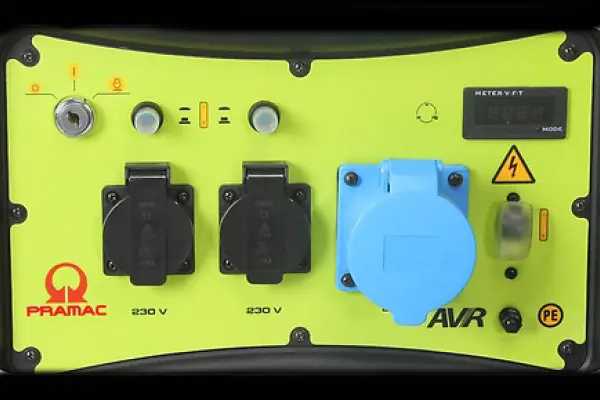

On the front there is a convenient control panel full of functions and on which you can find :

• A voltmeter with LED display for showing the output voltage;
• A switch to operate the engine : by pressing it the generator starts to supply current;
• A switch for thermal protection ;
• Two 16A Schuko power sockets;
• A 32A CEE socket
• Grounding

This generator has dimensions of 77 x 62 x 68 cm , with a weight of 89 kg .

Operation Specifications

The Pramac WX6200 uses a powerful 4-stroke single-cylinder OHV engine , equipped with an air cooling system and horizontal shaft . It has a displacement of 420 cc and a nominal power of 7.7 HP . The engine acceleration is regulated thanks to the AVR board, so the device automatically regulates the output voltage, keeping it constant as the load varies. It is important to have an AVR board if you intend to connect electronic devices to the generator: the output voltage kept constant by the board will prevent lightning strikes due to excessively high voltage electrical discharges.

The petrol engine is electric- started . This generator has a 26L metal fuel tank with a side gauge to monitor the fuel level and a fuel shut-off lever. It features an automatic decompression system .

With anti-vibration front rubber pads and large wheels for movement , Pramac Pramac WX 6200 ES is easily transportable.

As mentioned, this portable generator is a single-phase with a voltage of 230V . Its maximum power is 5.8 kW (kVA) .

The noise level of this machine complies with the regulations and does not exceed 97 dB .

Watch the video

Short tutorial on electric start Pramac WX 6200 ES.

Pramac Generator Maintenance Video.

Available options

Selectable from the drop-down menu:

• Generator Only
• Generator + ATS

Characteristics

• Single-phase voltage 230V
• Frequency 50 Hz
• Sturdy and compact structure with large wheels for transport
• Ergonomic and foldable handles
• Anti-vibration rubbers, air lever
• Protective frame
• Complete digital control panel
• 4-stroke single-cylinder OHV engine
• AVR board for automatic output voltage regulation
• Electric start
• 26L fuel tank
• Engine thermal and low oil level protection

How to choose a portable generator

To choose the ideal generator for your needs, you need to focus mainly on 3 points:

• Product use : if you need the generator for occasional emergency use, for long-term or limited-time use;
• Voltage type : evaluate whether you need a generator compatible with domestic current (single-phase) or a three-phase industrial device;
• Amount of power : the need for energy support must be assessed
