Brush 350 / 410 cm
Large Photovoltaic Systems

Width 350÷410 cm
30 bar - 9.3÷9.5 L/min
58÷70 Kg

MPN: FV-K3 PLUS

length
description Quotation Request
Private Negotiation
Private Negotiation
Personalised Quotations
Tested Product
Tested Product
Ready to Use
Need Help?
Need Help?
Ask The Expert
reso facile Warranty 2 years
reso facile 14 days to change your mind
spedizione su bancale Shipped on Pallet
  • paypal
  • visa
  • mastercard
  • contrassegno
  • soisy
  • bonifico
  • scalapay
You can choose the Secure Payment method you prefer


Motorized System for Cleaning Photovoltaic Systems

Machine for washing photovoltaic panels with steel and aluminum structure and rotating roller brush system. The machine is equipped with two roller brushes which are rotated by a Kawasaki TJ35E petrol engine .

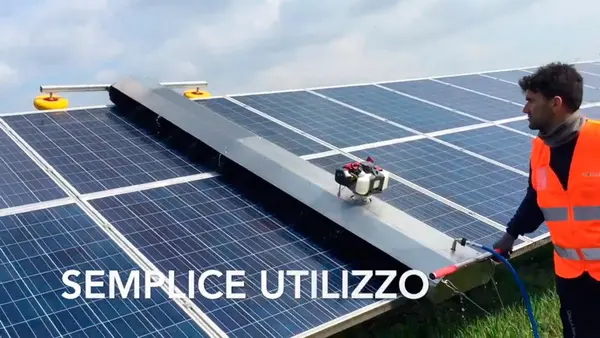

Motorized Brush for Washing Photovoltaic Panels

The motor brush is available in two versions of different sizes, with 350 cm or 410 cm brushes , both with scratch-resistant nylon bristles ; the largest model allows the simultaneous cleaning of two rows of vertical panels , making this product ideal for large systems.

This machine is particularly ideal for cleaning photovoltaic systems installed on the ground on inclined structures , in fact, thanks to the special frame with wheels it is possible to attach it to the frame of the photovoltaic modules and slide it along the entire length of the photovoltaic field; the motorized brush is connected to the water supply via a classic hose and allows extremely fast cleaning, with a yield ranging from 1760 to 2000 square meters per hour depending on the model.

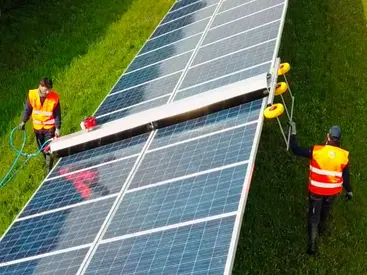

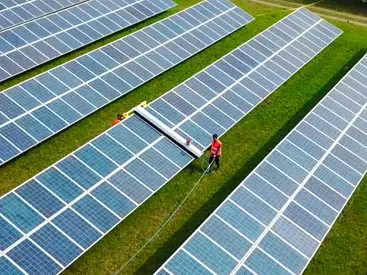

Cleaning system for large photovoltaic systemsCleaning of shed systems

This product is able to significantly shorten the washing times of large photovoltaic systems, guaranteeing deep cleaning in order to make the panels perform at their best. To obtain better results we recommend using pure or demineralised water , in order to avoid any residue due to water impurities.

Motor

Kawasaki TJ35E combustion engine

These models are equipped with a reliable Kawasaki TJ35E single-cylinder 2-stroke engine, which moves the brushes. The engine is powered with a 2% mixture and, thanks to its variable speed , is able to always work at its best, guaranteeing low fuel consumption and less wear of the brushes . In order to ensure smooth operation, there is also an easy starting system with diaphragm carburettor and a polyurethane foam air filter.

Watch the video

Characteristics

  • It does not need high pressure water
  • Double roller brush
  • Anti-scratch nylon bristles
  • Petrol engine for brush rotation
  • Steel and aluminum structure
  • Reduces cleaning times
  • Simple to use
  • Complies with all safety regulations

Models Available

  • FV-K3 - Width 350 cm
  • FV-K3 PLUS - Width 410 cm

Technical data

FV-K3 FV-K3+
Brush Width 350 cm 410 cm
Brush diameter 12cm 12cm
Power Supply Mixture Engine Mixture Engine
Water Consumption 9.3 L/min 9.5 L/min
Fuel consumption 0.7 L/h 0.7 L/h
Max pressure 30 bars 30 bars
Maximum Water Temperature 40°C 40°C
Cleaning performance 1760 m²/h 2000 m²/h
Dimensions 360 x 50 x 43 cm 420 x 50 x 43 cm
Weight 58kg 70 kg

Technical data

FV-K3 FV-K3+
Brush Width 350 cm 410 cm
Brush diameter 12cm 12cm
Power Supply Mixture Engine Mixture Engine
Water Consumption 9.3 L/min 9.5 L/min
Fuel consumption 0.7 L/h 0.7 L/h
Max pressure 30 bars 30 bars
Maximum Water Temperature 40°C 40°C
Cleaning performance 1760 m²/h 2000 m²/h
Dimensions 360 x 50 x 43 cm 420 x 50 x 43 cm
Weight 58kg 70 kg
