Fly Mini 5
Brush for pitched or flat surfaces
Width 50 cm
2÷2.5 bar - 2 L/min
8kg

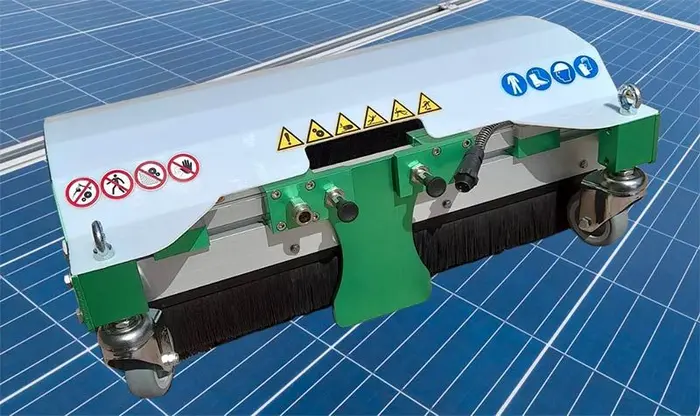

Fly Mini 5 - Brush for pitched or flat surfaces
Fly Mini 5 is the ideal brush for washing photovoltaic systems , mono/polycrystalline or thin film, pitched or flat . The brush ensures greater yield and guarantees constant, quality cleaning.
To work, this Fly Mini 5 brush needs to be powered by a Battery Kit or a power supply , accessories that can be purchased separately .
The maintenance and cleaning of photovoltaic systems are a fundamental aspect to keep the system's efficiency always at the top; therefore it is advisable to equip yourself with adequate equipment to carry out cleaning efficiently and safely .
Fly Mini 5 reflects all the safety regulations in force to protect the operator.
Technical specifications
Fly Mini 5 is a 500 mm brush designed for cleaning photovoltaic systems, the ideal solution for small pitched or flat surfaces .
The motor has an average consumption of 1.5 A 24 Vdc , the required water pressure is 2.0-2.5 bar and the average water consumption is 2 L/min .
This brush can be used with a rod or flexible sheath on a brim .
USED MATERIALS
The brush is made of particularly resistant and light stainless steel and is covered in anti-UV PVC material, extremely easy to handle even for non-professional operators.
WAVY DESIGN
Fly Mini 5 offers particularly simple and versatile maneuverability , features a special corrugated scratch-resistant nylon sector design , which retains water without causing splashes outside the cleaning area.
YIELD FROM 5% TO 20% MORE THAN DIRTY PANELS
Over time, dust, pollen, excrement and smog residues deposit and the rain is not enough to remove them.
To maintain a considerably higher percentage yield than that obtained from dirty panels, effective and regular cleaning must be carried out with the appropriate brushes.
REDUCTION OF MAINTENANCE COSTS
The Fly Mini 5 brush allows you to thoroughly clean photovoltaic systems, allowing for optimal long-term conservation. The brush carries out a deep cleaning without damaging the surface.
PRACTICALITY AND ECONOMY
The research and development of this Fly Mini 5 brush has excluded the need to use high pressure water , a saving that brings a double benefit linked to the reduction of wear on the panels and a reduction in the costs of the cleaning itself.
FOR ALL SMALL SURFACES
This brush is very easy to handle and performs as it is equipped with swivel wheels and can also be used with fixed wheels . The motorized brush is equipped with an inversion system that covers a surface of 500 mm.
USE
Using the Fly Mini 5 brush is simple, just insert the rubber onto the classic domestic water tap.
The brush is equipped with a motor with electronic protection and is not encumbered by belts or external gears, therefore it requires no maintenance in the transmission .
The brushes for washing photovoltaic panels do not require high pressure water , but simply connect them to a normal domestic tap .
To obtain optimal cleaning of the photovoltaic field, it is however advisable to use pure or demineralised water through reverse osmosis or resin treatments.

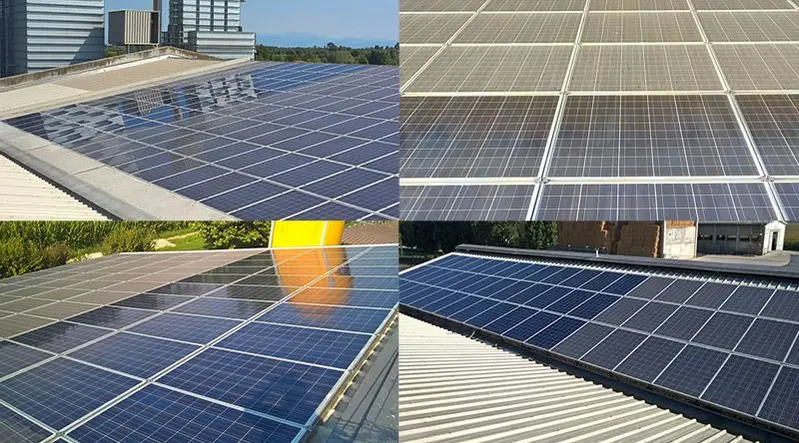

EXAMPLES BEFORE/AFTER
Watch the videos
Characteristics
- Brush size 500 mm
- Average motor consumption 1.5 A
- Works at 24 V
- Machine weight 8 kg
- Required pressure 2.0-2.5 bar
- Average water consumption 2 L/min
Standard equipment
- 6 m rod
- Pouch with power supply
Optional equipment
- 6 m telescopic pole kit
- 9 m telescopic pole kit
- Flex sheath kit with 10 m rudder
- Flex sheath kit with 15 m rudder
- Flex sheath kit with 20 m rudder
- Kit of 2 swivel wheels
- Baby carrier kit with lithium battery 6/7 A/h - 24 Vdc
- Pouch kit with 230 Vac - 24 Vdc – 5A power supply
Technical data
Length | 500 mm |
Power Supply | 24V |
Engine Consumption | 1.5A |
Required pressure | 2 ÷ 2.5 bar |
Average consumption | 2 L/min |
Method of Use | with Asta or Guainaflex on Flap |
Weight | 8kg |
Technical data
Length | 500 mm |
Power Supply | 24V |
Engine Consumption | 1.5A |
Required pressure | 2 ÷ 2.5 bar |
Average consumption | 2 L/min |
Method of Use | with Asta or Guainaflex on Flap |
Weight | 8kg |
