ABAC FP 54 (G3/8) AB
Grade P Air Filter

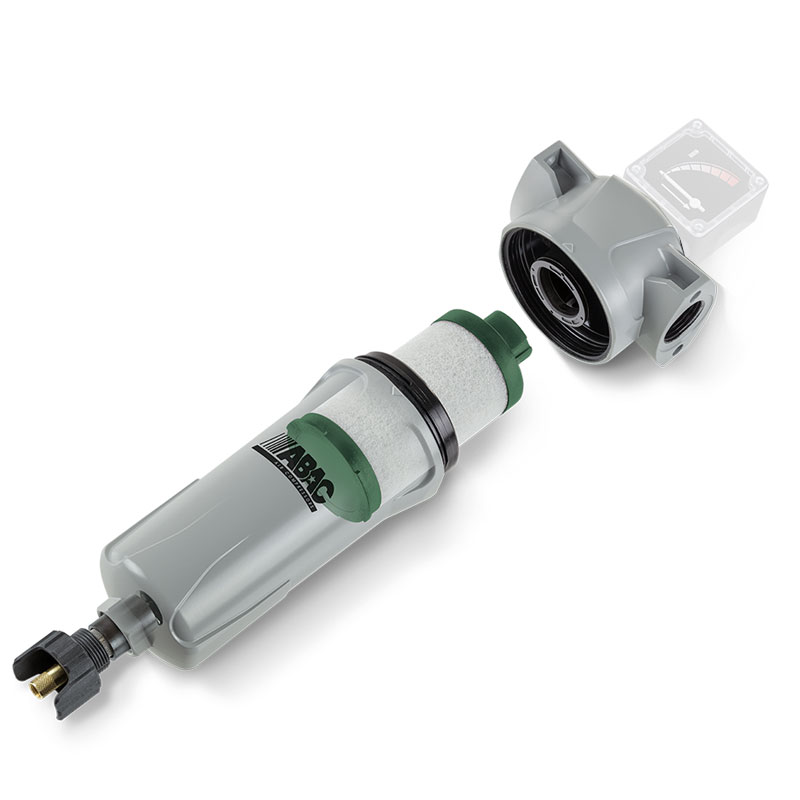

ABAC FP 54 (G3/8) AB - Coalescing and particulate filter

The original ABAC FP 54 (G3/8) filter is designed to protect compressors from the ingress of dust particles and liquids such as oil. Using a compressor filter is essential to prevent contaminants from interacting with each other and creating abrasive and corrosive emulsions for the machine.

This filter can operate in environments with temperatures ranging from -20°C to 50°C with inlet air pressure ranges from 1.5 bar to 16 bar. The inlet air temperature can range from 0°C minimum to 80°C maximum.
The ABAC FP 54 (G3/8) - AB liquid and dust filter is able to work for approximately 12 months without needing to be replaced for a maximum of 8000 hours .

The coalescing and particulate filter in question can remove particles up to 5 µm with an output oil aerosol concentration of 1 mg/m3.

Advantages

• Purify the air from its oil/dust contamination
• Increased production and quality
• Ensure greater efficiency and reliability
• Less wear and tear on the distribution network and equipment
• Simple design, excellent performance
• Reduction of maintenance costs
• Different cartridges with specific filtration qualities
• Higher quality of the final product

Areas of use

• Pharmaceutical industry
• Food industry
• Chemical and packaging industry
• Pneumatic transport
• Industrial painting
• Control systems
• Generic tools
• Any application that uses compressed air

Characteristics

• Filtration grade: FP
• Residual oil aerosol concentration at outlet: < 1 mg/m³
• Particle removal capacity: 5 microns
• Model size: Size 4
• Rated capacity: 900 l/min / 54 m³/h / 32 CFM
• Maximum operating pressure: 16 bar
• Maximum operating pressure: 232 PSI
• Connection (inlet): 3/8”
